b. Swing the crossbar away from the enclosure.
c. Once the crossbar is straight it should easily come free from the mounting bracket.
Step 9 : Uninstall the PSU.
a. Grasp the release lever and the metal handle in a downward pinching motion to release
the latching mechanism.

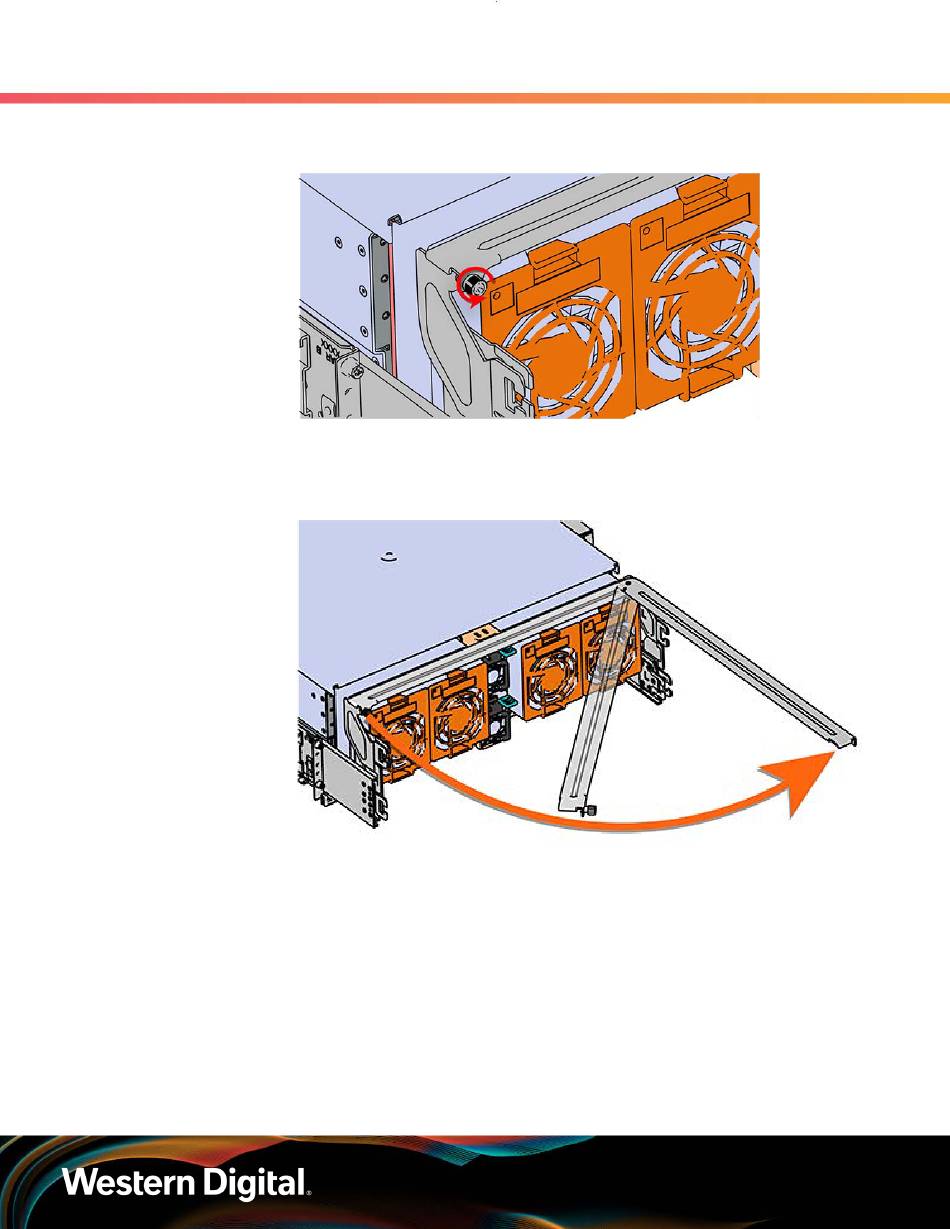

Figure 137: Unscrew Thumbscrew
Figure 138: Crossbar Swinging Out
