c. Swing the crossbar so that the thumbscrew lines up with the mounting hole on the
opposite side of the enclosure.
d. Press the crossbar against the CMA mounting bracket and secure the crossbar in place by
pressing and turning the thumbscrew clockwise until snug.

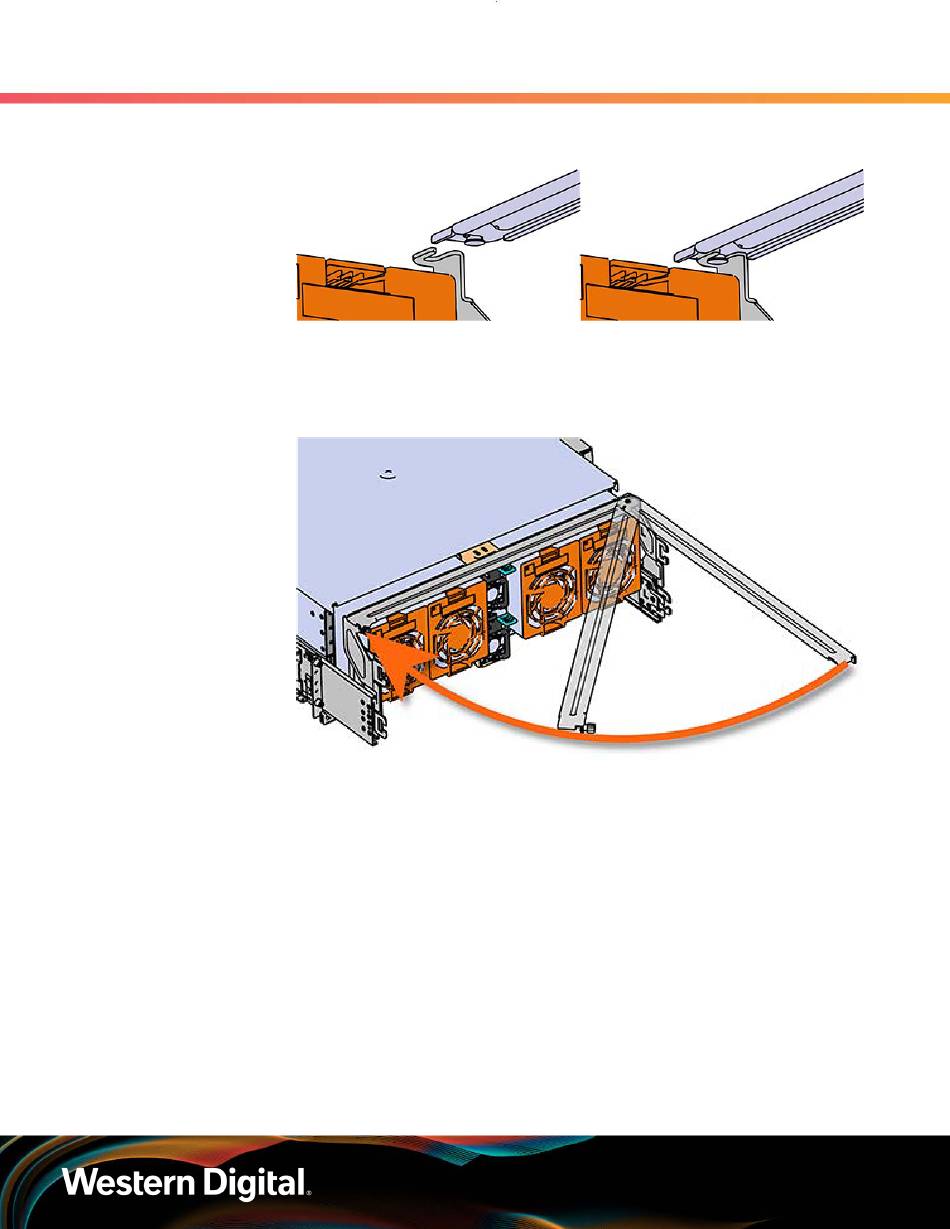

Figure 175: Crossbar Underside Peg
Figure 176: Swinging Motion of Crossbar to Locking Position
4. Part Replacement
4.9 Chassis Replacement
