The enclosure supports a minimum of 24 HDDs and one SSD for a partially populated enclosure. The
enclosure can support a minimum of one SSD with the remaining drive slots within that row being
completed with drive blanks. The enclosure does not support a mix of SAS and SATA drives. The image
below details the minimum required configuration for an HDD and SSD configuration.
Note: When installing SSDs for this configuration, the preinstalled HDDs will have to be moved
one entire row to the next vacant row near the front of the enclosure.

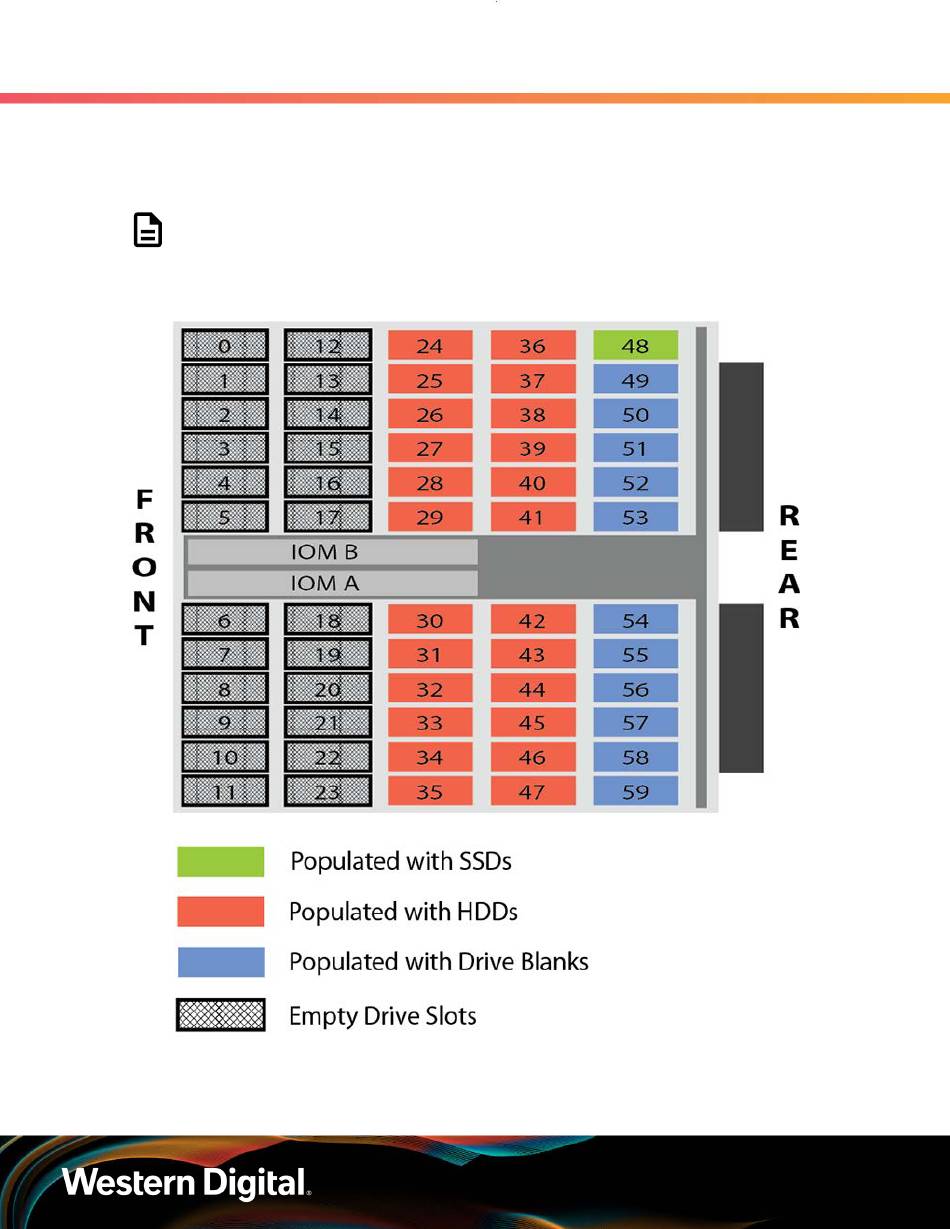

Figure 206: Minimum HDD and Minimum SSD Partial Population
Minimum HDD and Maximum SSD Partial Population:
