6.5.15 - Sostituzione del filtro, del prefiltro
carburante e spurgo del circuito
ATTENZIONE: Prima di iniziare a lavorare,
accertarsi che il motore è freddo.
ATTENZIONE: maneggiare il carburante
con attenzione, è altamente infiammabile.
Non eseguire mai lavori sul sistema di
alimentazione mentre si fuma, o accanto a fiamme
o scintille aperte.
IMPORTANTE: smaltire il carburante ed i filtri
in conformità alle normative locali vigenti. NON
versare il carburante sul terreno, nella fognatura
o in contenitori che possano perdere. Rispettare
assolutamente l'ambiente.
Sostituire la cartuccia del filtro carburante
-
Se fosse eventualmente montata la sicura
antitorsione, rimuovere le fascette di serraggio
(opzionali). Allentare il filtro con l'utensile.
-
Raccogliere carburante che fuoriesce.
-
Pulire la superficie di tenuta del portafiltro con un
panno pulito che non lascia fibre.
-
Oliare leggermente la tenuta della nuova cartuccia
del filtro.
-
Avvitare manualmente il filtro nuovo fino a tenuta
e serrare con una coppia di: 10-12 Nm
-
Stringere le fascette di serraggio della sicura
antitorsione (opzionali) / Tighten the clamps when
twist protection mounted (optional).
-
Sfiatare l'impianto di alimentazione.
Sostituzione del prefiltro carburante
-
Arrestare il motore.
-
Bloccare l'adduzione carburante al motore (in
caso di serbatoio posizionato in alto).
-
Collocare un recipiente di raccolta adatto.
-
Collegamento elettrico: Staccare i collegamenti
dei cavi.
-
Allentare il tappo di scarico e far defluire il liquido
-
Smontare l'elemento filtrante.
revision 0 date: 07/19 doc. AG525990
6.5.15 - Replace fuel filter, fuel prefilter, and
bleed fuel system
CAUTION: Before starting work, make sure
that the engine is cold.
CAUTION: Handle fuel with care, it is highly
flammable. Never perform work on the fuel
system while smoking, or next to open
flames or sparks.
IMPORTANT: dispose of fuel and filters in
accordance with local regulations. DO NOT
drain on the ground, into a drain or into a leaky
container. Be responsible for the environment.

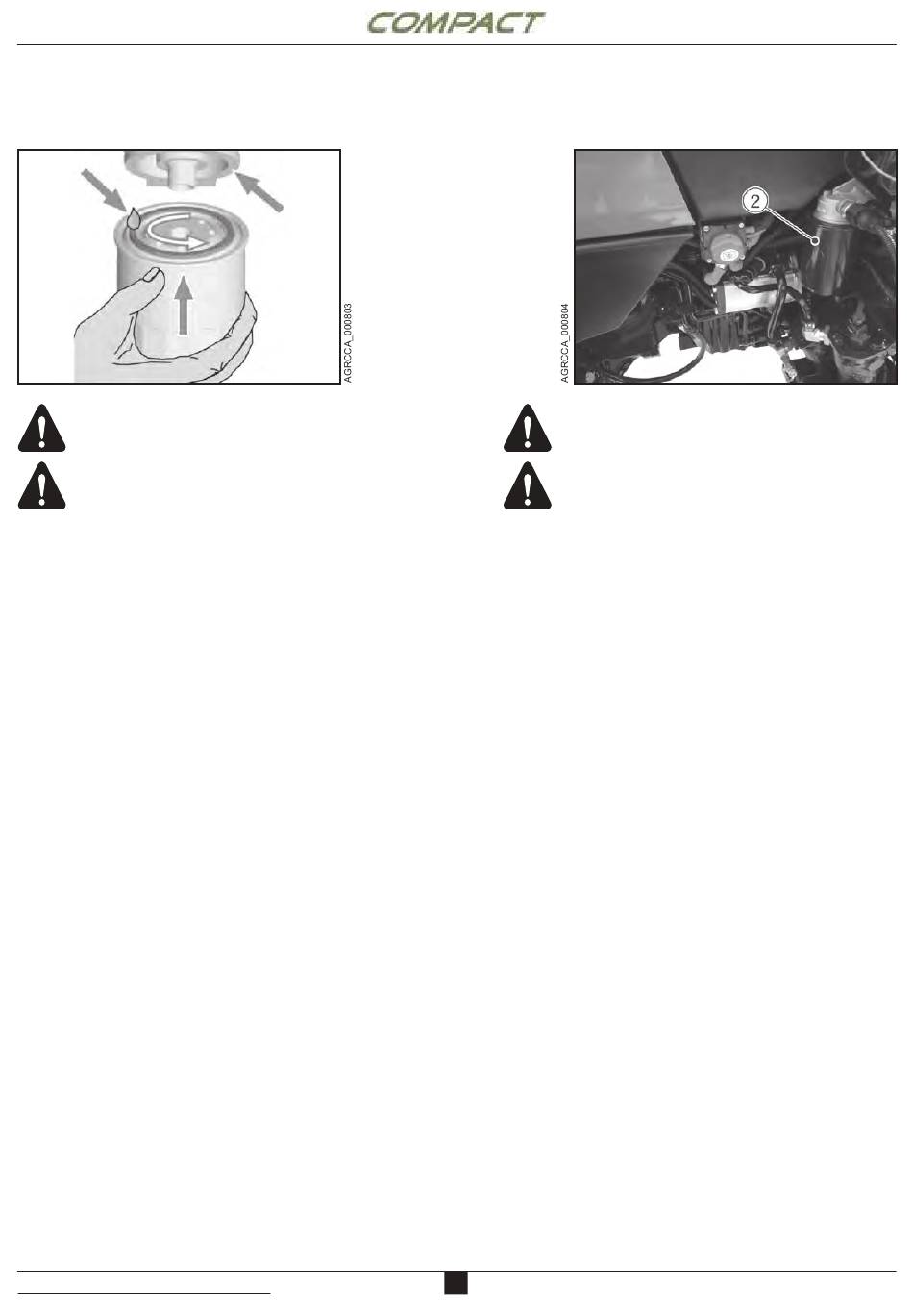

Replace fuel change filter
-
Remove clamps when twist protection mounted
(optional). Loosen and unscrew filter with tool.
-
Collect escaping fuel.
-
Clean the sealing surface of the filter carrier with
a clean, lint-free cloth.
-
Oil the seal of the new spare filter lightly.
-
Screw on new filter by hand until the gasket is
touching and tighten.
Tightening torque: 10 Nm - 12 Nm
-
Tighten the clamps when twist protection mounted
(optional).
-
Vent the fuel system.
Change the fuel pre-filter insert
-
Shut down engine
-
Shut off the fuel supply to the engine (with high
lying tank).
-
Place suitable collecting containers underneath.
-
Electrical connection: Disconnect cable
connections.
-
Loosen drain plug and drain liquid.
-
Disassemble filter insert.
-
Clean any dirt off the sealing surfaces of the new
filter cartridge and opposite side of filter head.
6
pag. 29
