Install a DIMM
2.
Ensure that the ejector levers are fully open at both ends of the DIMM slot.
No.
1
2
3

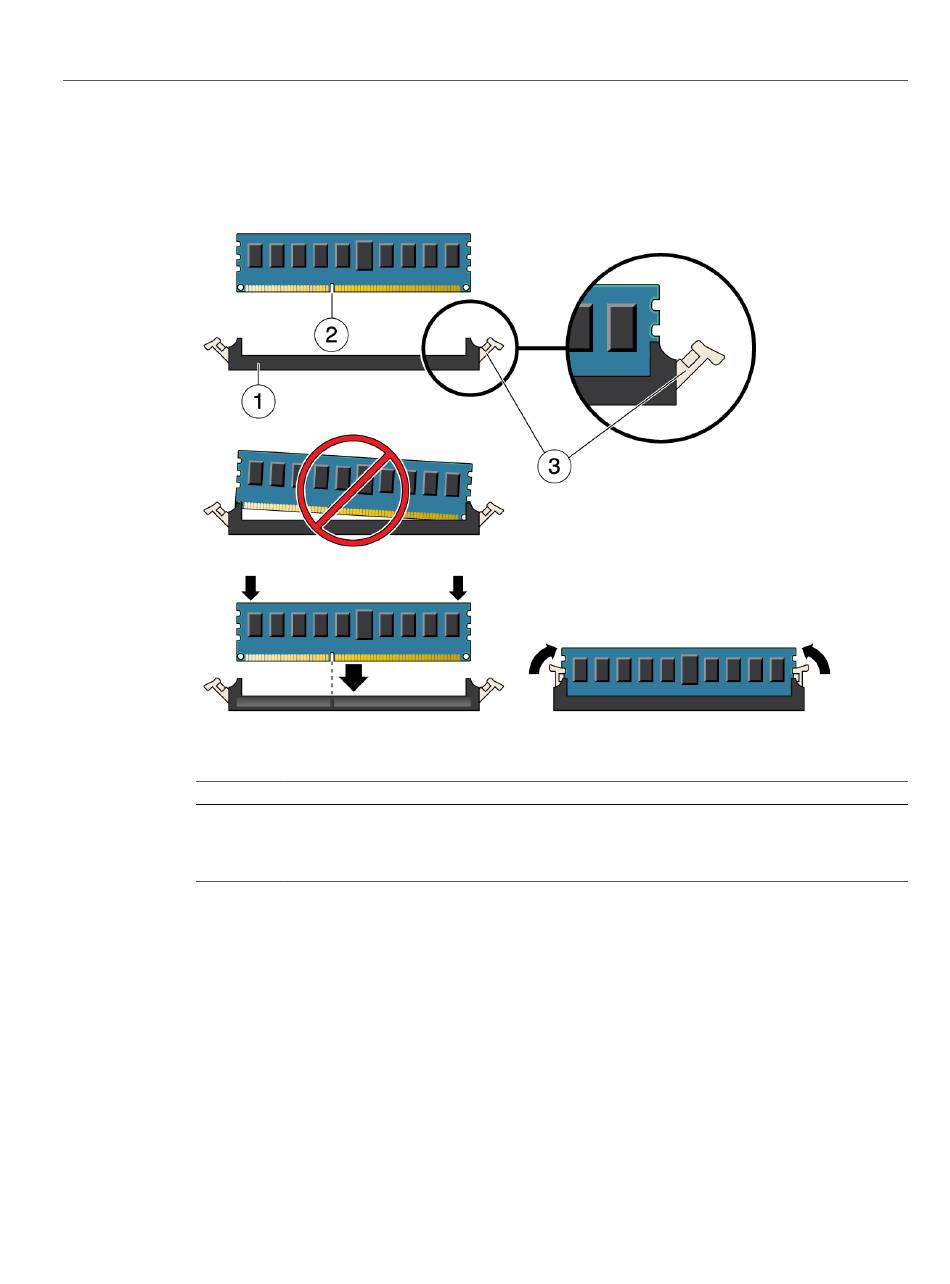

Align each DIMM with the empty connector slot, aligning the notch in the DIMM
3.
with the key in the connector.
The notch ensures that the DIMM is oriented correctly.
Gently press the DIMM into the slot until the ejector tabs lock the DIMM in place.
4.
Related Information
"Memory Riser and DIMM Configuration" on page 83
■
98
SPARC T8-1 Server Service Manual • January 2022
Description
DIMM connector slot
DIMM connector key
DIMM ejector lever
