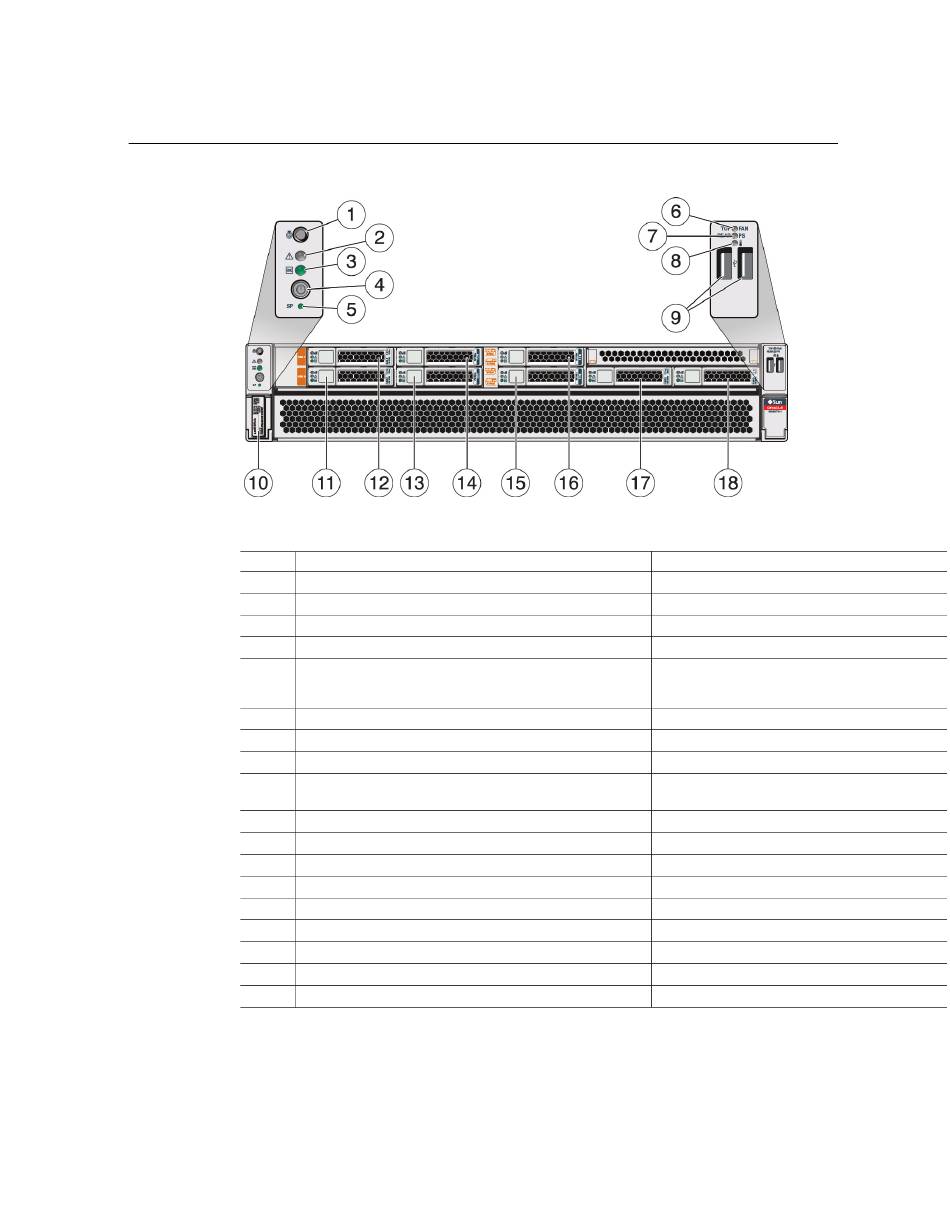

Front Panel Components
No. Description
1 Server Locate indicator and button (white)
2 Service Required LED (amber)
3 Power LED (green)
4 Server Power button
5 SP Fault LED (green)
6 Fan Service LEDs (amber)
7 Power Supply (PS) Service LED (amber)
8 Server Overtemp LED (amber)
9 USB 2.0 connectors (2)
10 Serial number
11 HDD 0
12 HDD 1
13 HDD 2 or NVMe 0
14 HDD 3 or NVMe 1
15 HDD 4 or NVMe 2
16 HDD 5 or NVMe 3
17 HDD 6 or NVMe 4
18 HDD 7
12 SPARC T8-1 Server Service Manual • January 2022
Links
"Front Panel Controls and LEDs" on page 28
"Front Panel Controls and LEDs" on page 28
"Front Panel Controls and LEDs" on page 28
"Front Panel Controls and LEDs" on page 28
"Front Panel Controls and LEDs" on page 28
"Servicing the SPM" on page 121
"Servicing Fan Modules" on page 69
"Servicing Power Supplies" on page 77
"Front Panel Controls and LEDs" on page 28
"Identifying Ports" in SPARC T8-1 Server Installation
Guide
"Find the Server Serial Number" on page 42
"Servicing Drives" on page 59
"Servicing Drives" on page 59
"Servicing Drives" on page 59
"Servicing Drives" on page 59
"Servicing Drives" on page 59
"Servicing Drives" on page 59
"Servicing Drives" on page 59
"Servicing Drives" on page 59
