12.
Disconnect the signal cable and power cable from the motherboard to the drive
backplane.
See
"Remove the Drive Backplane" on page
13.

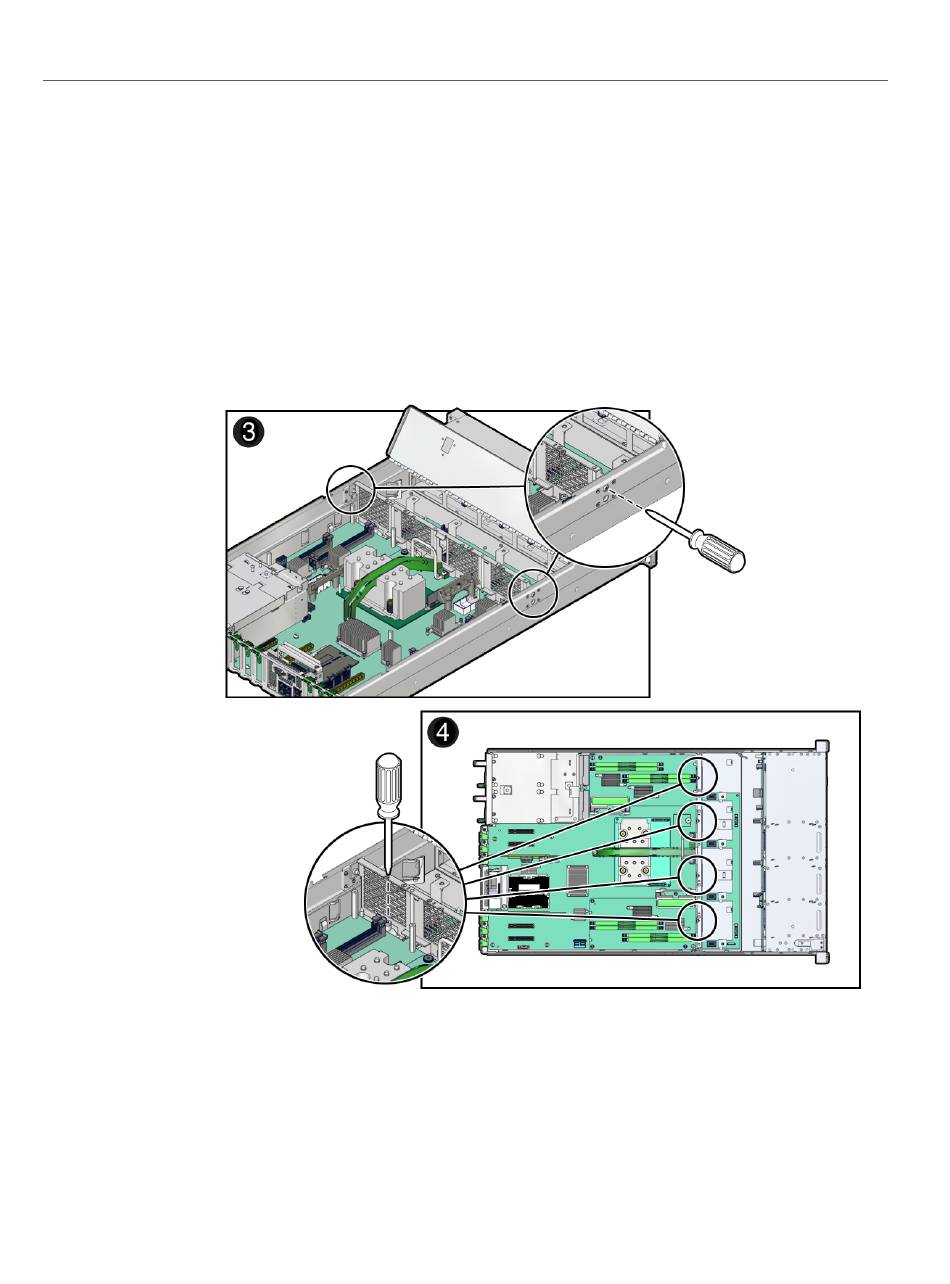

Disconnect the mid-wall from the chassis.
a.
Remove the screw, using a T20 Torx driver, on each side of the chassis that
secures the mid-wall to the chassis (panel 3).
b.
Loosen the four green captive screws that secure the mid-wall to the bottom
of the chassis (panel 4).
147.
Servicing the Motherboard
Remove the Motherboard
133
