Install the Motherboard
2.

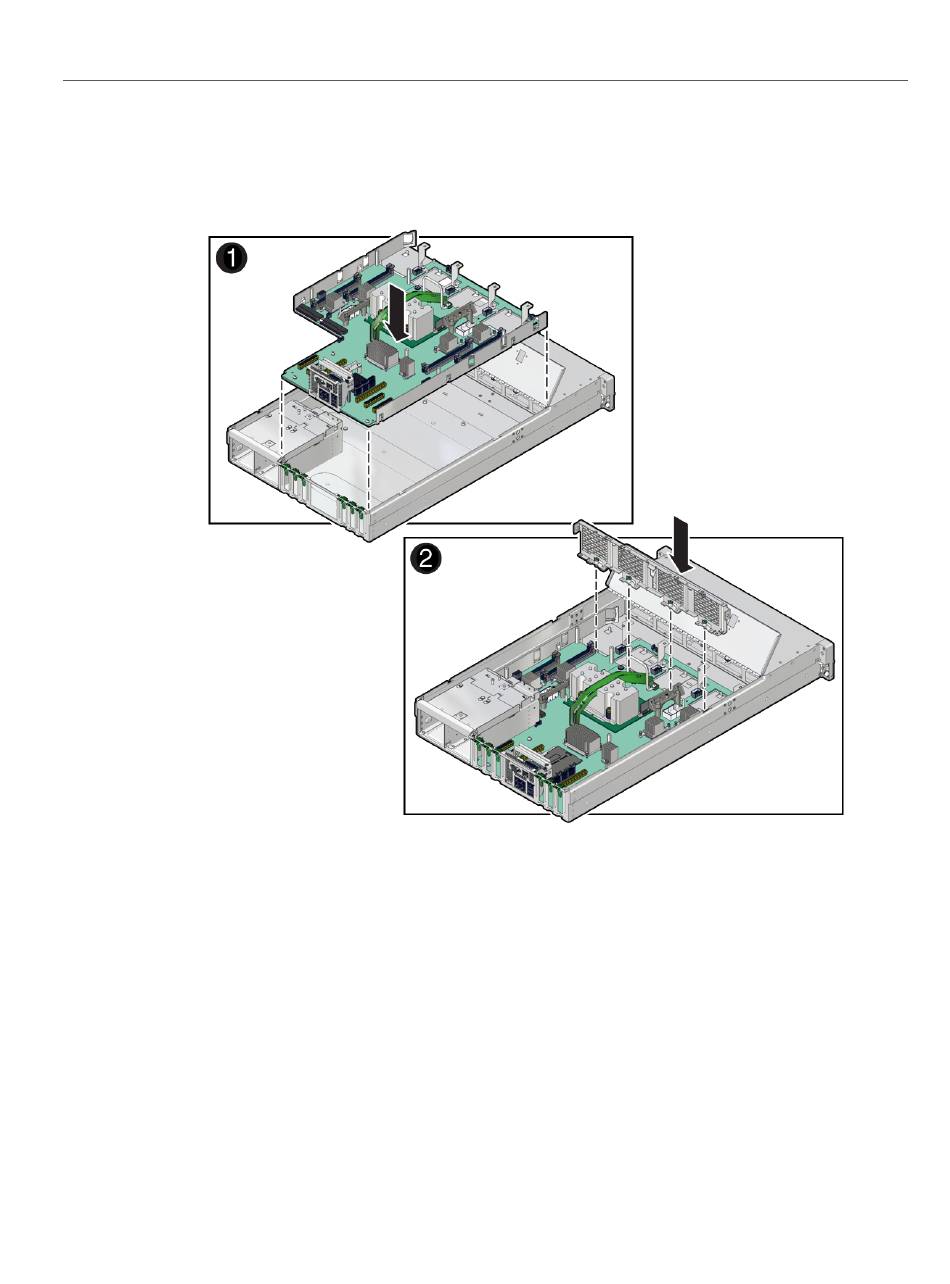

Grasp the motherboard by the handle and place it into the chassis (panel 1).
You can use the metal handle in front of the cable channel and the bar by the rear I/O panel as
handles to lift the motherboard.
Ensure that the remaining cables do not get caught on edges of the motherboard.
a.
Tilt the motherboard to the right side so it gets under the power supplies.
Be sure the power supplies are pulled out slightly from their slots when you insert the
motherboard.
b.
Level the motherboard in the server chassis.
136
SPARC T8-1 Server Service Manual • January 2022
