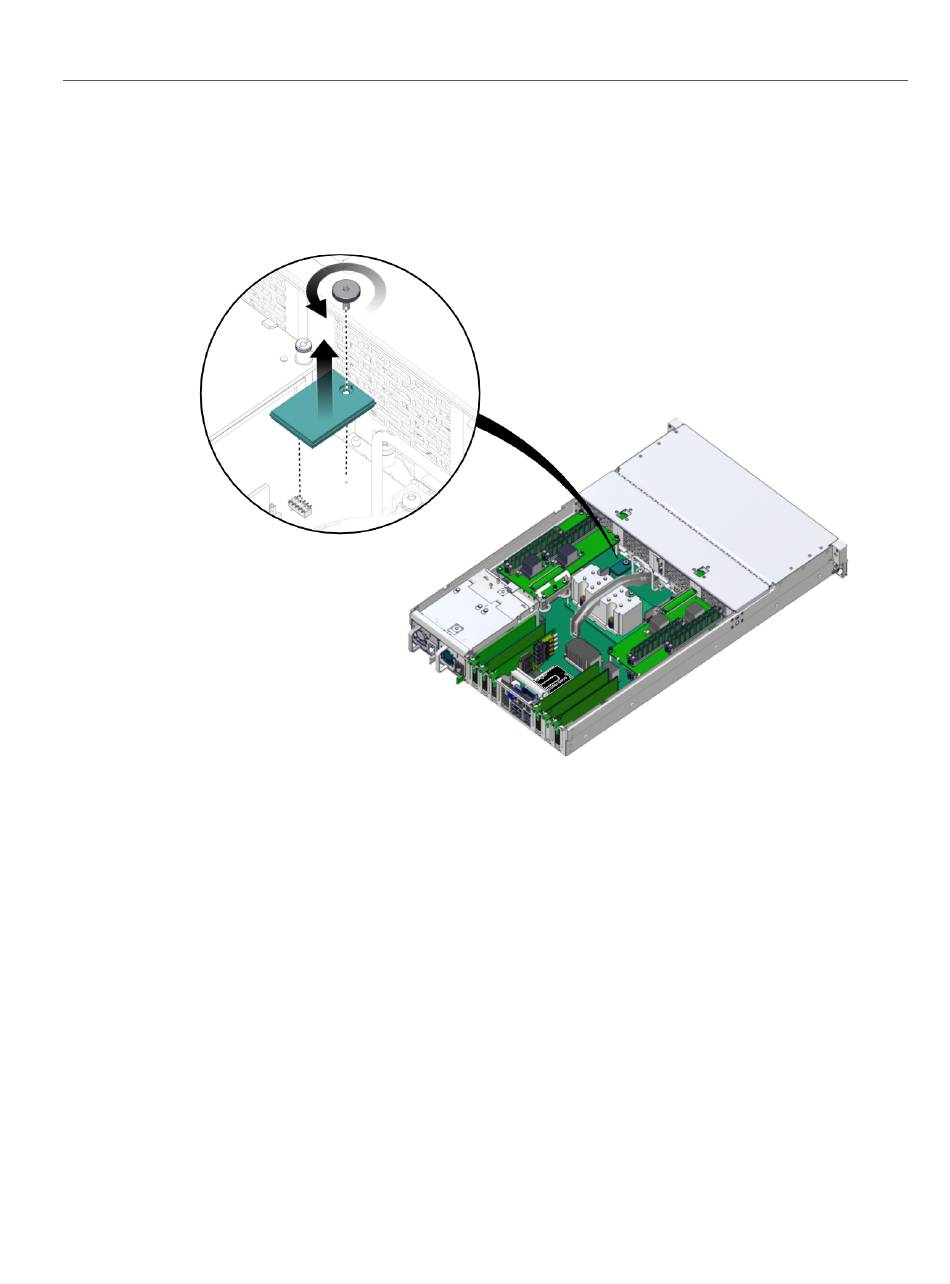

Remove the eUSB Drive
This screw is not a captive screw, so be careful not to drop it inside the server. Retain the screw
to use with the new eUSB drive.
If the screw is too tight to remove by hand, use a Torx 10 driver to loosen it.
Lift the eUSB drive up to disconnect it from the motherboard.
3.
Install a new eUSB drive.
4.
See "Install the eUSB Drive" on page
Related Information
"Install the eUSB Drive" on page 115
■
114 SPARC T8-1 Server Service Manual • January 2022
115.
