1. Locate the PCIe card or filler that you want to remove.
See "Rear Panel Components" on page 13
If you are removing a PCIe filler, go to
2. Note the slot location for each PCIe card you plan to remove.
Unplug all data cables from the PCIe card.
3.
Note the location of all cables for reinstallation later.
4. Remove any transceivers from the PCIe card before removing the card.
5. Remove the PCIe card by completing the following tasks.

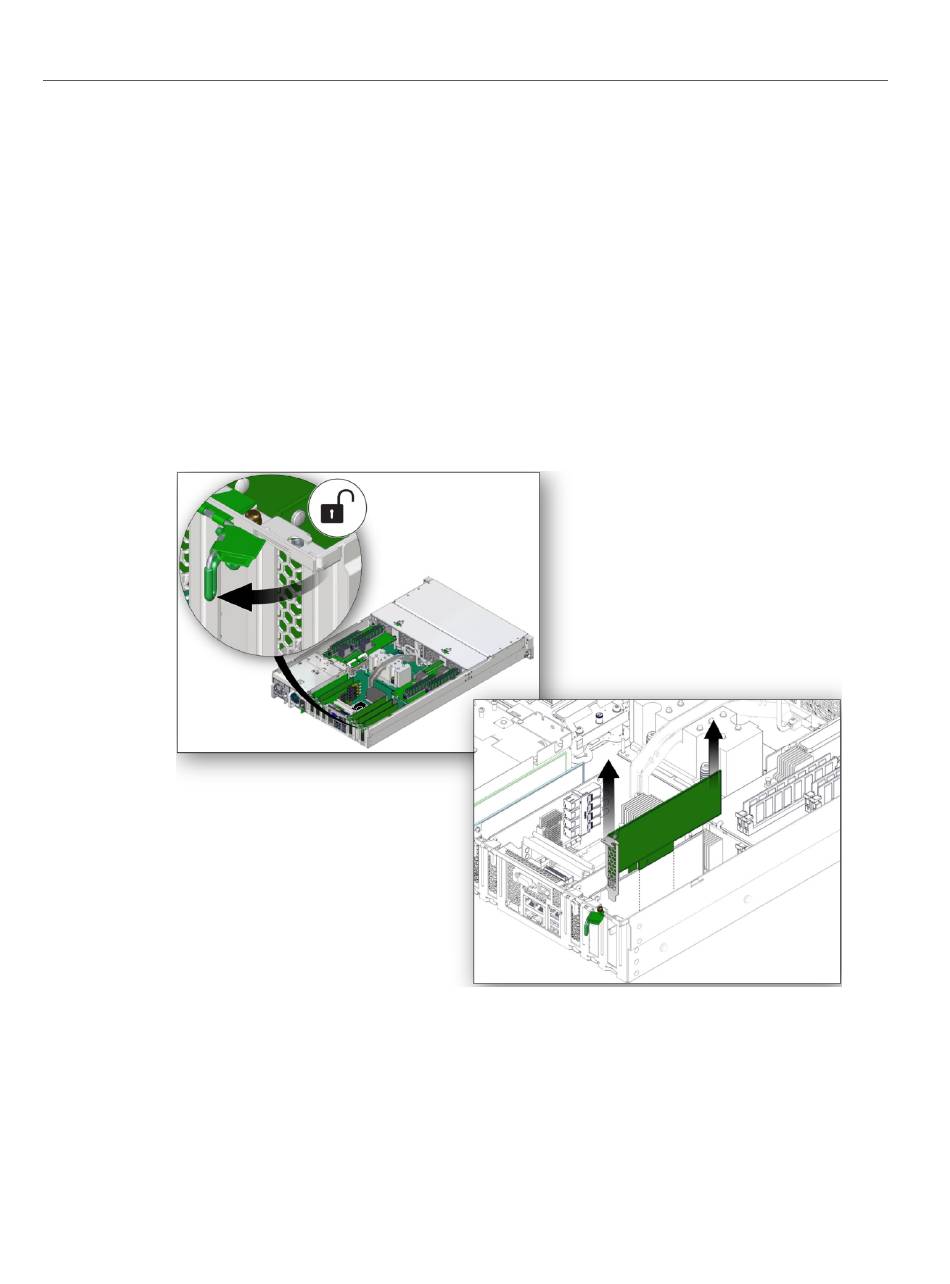

Rotate the PCIe card locking mechanism (panel 1).
a.
b. Carefully lift the PCIe card or filler from the card slot (panel 2).
for information about PCIe slots and their locations.
Step 5.
Remove a PCIe Card or Filler
