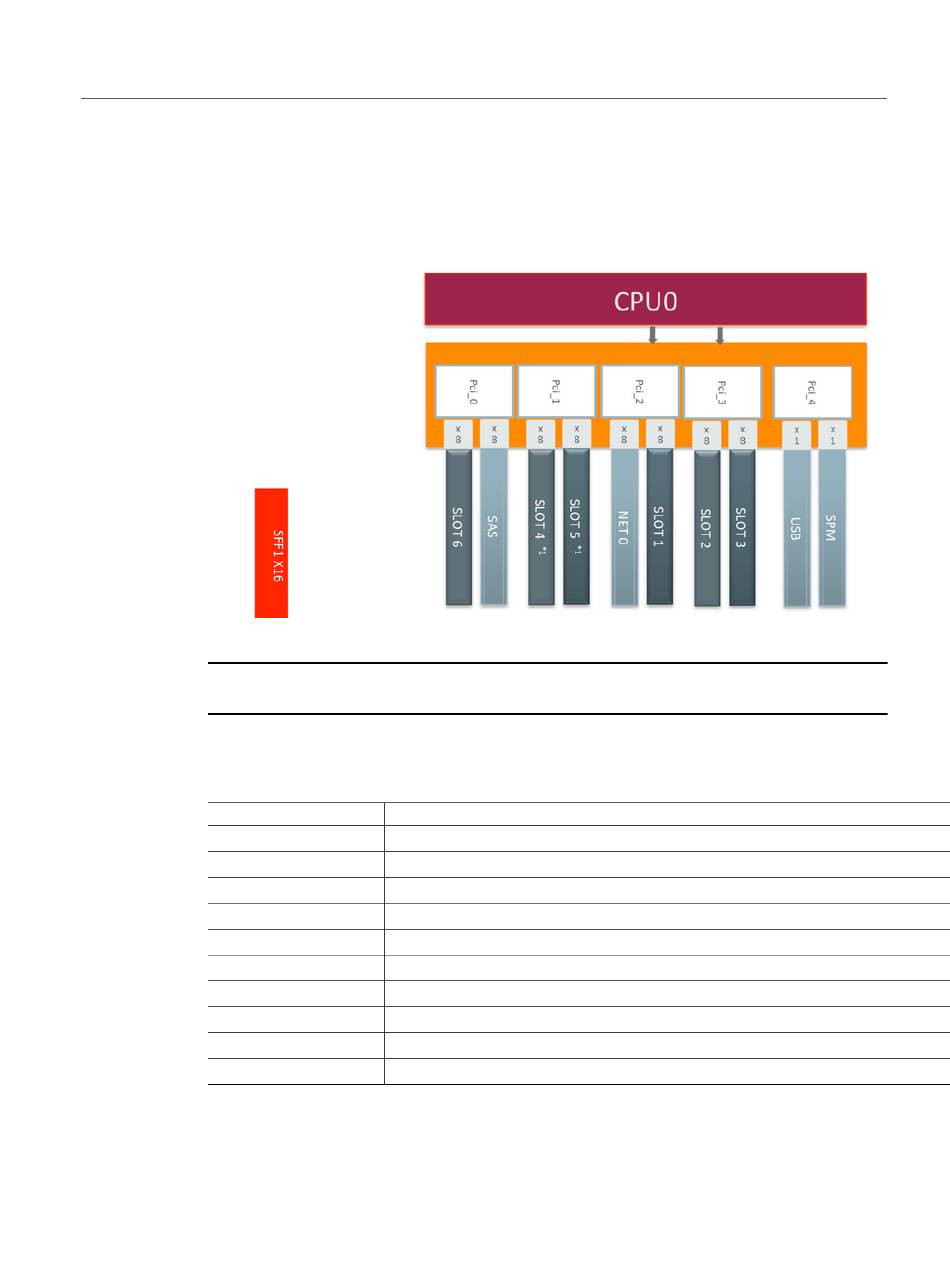

Server Block Diagram
The following diagram shows the system device map.
SLOT4 is x16 when SLOT5 is switched out. SLOT3 is x16 when SLOT2 is switched
Note -
out.
This table identifies some key path names in this server.
Device
PCIe 1
PCIe 2
PCIe 3
PCIe 4
PCIe 5
PCIe 6
NET 0
NET 1
NET 2
NET 3
18
SPARC T8-1 Server Service Manual • January 2022
Path
/pci@300/pci@2
/pci@303/pci@2
/pci@303/pci@1
/pci@302/pci@1
/pci@302/pci@2
/pci@301/pci@1
/pci@300/pci@1/network@0
/pci@300/pci@1/network@0,1
/pci@300/pci@3/network@0
/pci@300/pci@3/network@0,1
