No.
Component
1
Drive cage (drive backplane on the rear of
the drive cage)
2
Fan module cover
3
Fan modules
4
Airflow cover
5
Top cover
Oracle ILOM Target
/SYS/DBP
As viewed from front of server:
/SYS/MB/FM0 (left)
/SYS/MB/FM1 (left center)
/SYS/MB/FM2 (right center)
/SYS/MB/FM3 (right)

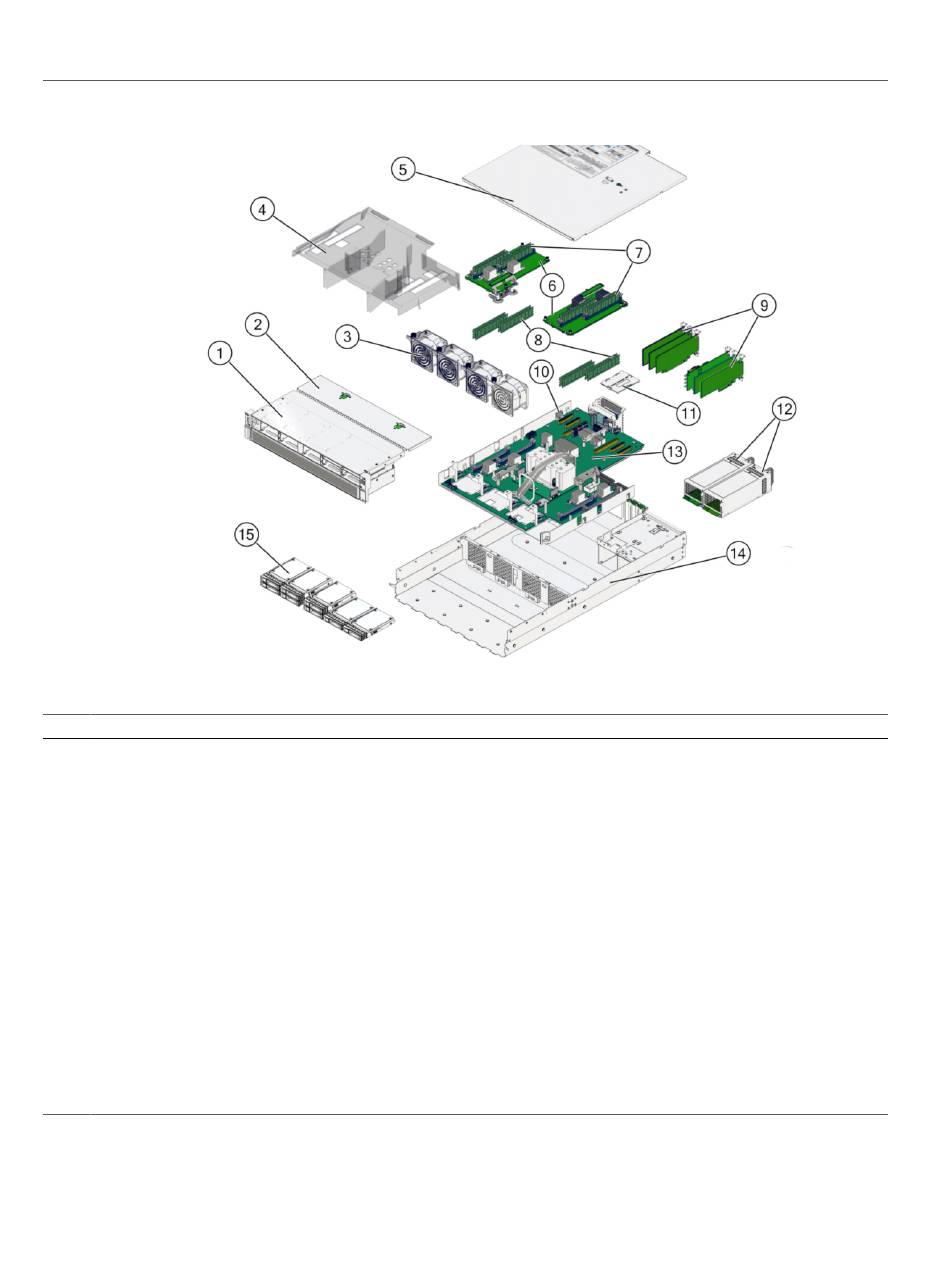

Internal Component Locations
Links
"Servicing the Drive
Backplane" on page 147
"Remove the Fan Cover" on page 55
"Replace the Fan Cover" on page 154
"Servicing Fan Modules" on page 69
"Open and Remove the Airflow
Cover" on page 54
"Install and Close the Airflow
Cover" on page 155
"Remove the Top Cover" on page 53
Identifying Components
15
