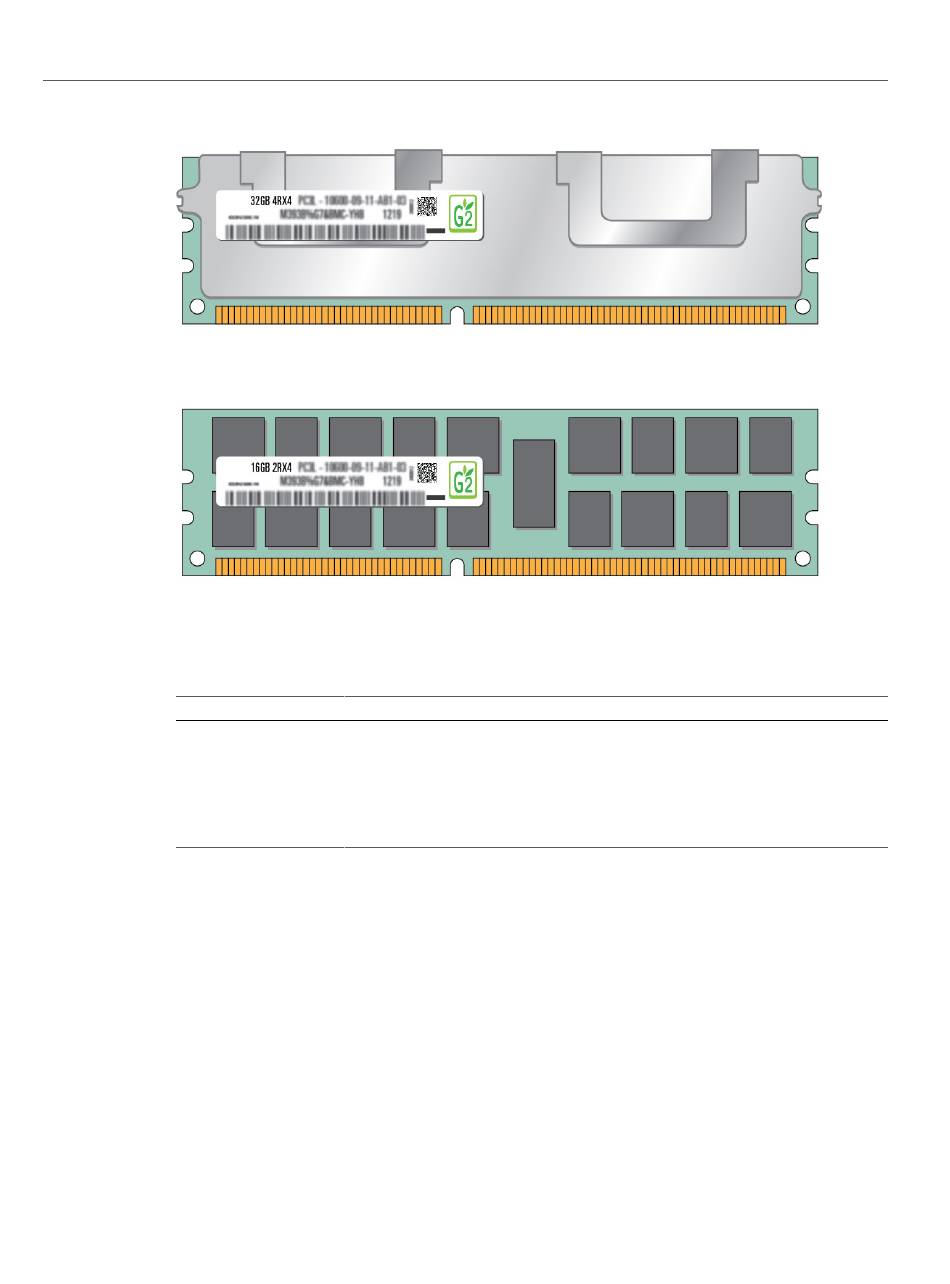

As of System Firmware version 9.10.3, the following DIMM configurations are supported.
DIMM Capacity
16 Gbyte
32 Gbyte
32 Gbyte
64 Gbyte
128 Gbyte
Memory Riser and DIMM FRU Names
The server can contain 16 DIMMs. Eight DIMMs are installed on the motherboard. An optional
eight DIMMs can be installed on two memory risers, mounted on the motherboard above the
initial DIMMs. Four DIMMs are installed on each memory riser.
Labels on the transparent airflow cover identify the naming of memory risers and DIMMs.
DRAM Density
4 Gbit
4 Gbit
8 Gbit
8 Gbit
16 Gbit
Memory Riser and DIMM FRU Names
Rank Classification
Dual-rank x4
Quad-rank x4
Dual-rank x4
Quad-rank x4
Quad-rank x4
Servicing Memory Risers and DIMMs
Label
2Rx4
4Rx4
2Rx4
4Rx4
2S2Rx4
85
