Remove the Motherboard
Use a No. 2 Phillips screwdriver to loosen the captive screws.
14.

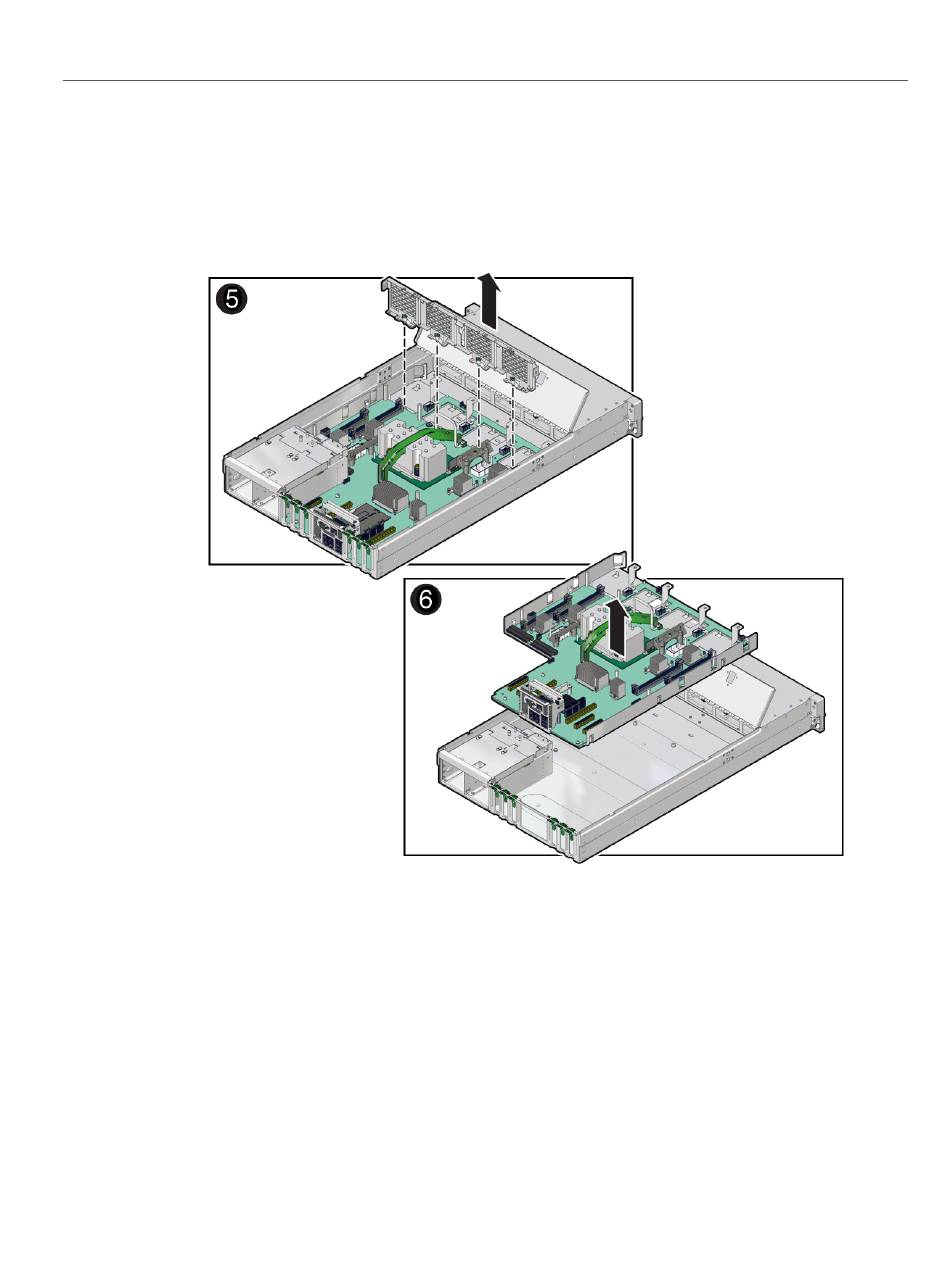

Lift the mid-wall out of the chassis (panel 5)
15.
Release the power supplies and pull them slightly out of the server.
The power supplies do not need to be removed from the chassis to lift out the motherboard.
16.
Lift the motherboard out of the chassis (panel 6).
You can use the bar by the rear I/O panel and the metal handle in front of the cable channel as
handles to lift the motherboard.
17.
Place the motherboard on an antistatic mat.
134
SPARC T8-1 Server Service Manual • January 2022
