Commissioning

5.1 Commissioning lifting in open-loop vector control

5.1.1 Wiring
R
S
T
Lifting
Lowering
Graded reference terminal 1
Graded reference terminal 2
Graded reference terminal 3
Graded reference terminal 4
Fault reset
Brake feedback
Note: If the wiring is performed according to Figure 5.1, most VFD parameters need no adjustment. If
the onsite function terminals are inconsistent with the terminals shown in the figure, adjust the input
and output terminal functions according to the actual wiring after selecting the open-loop vector
controlled lifting application macro.
5.1.2 Commissioning procedure
1. Check the wiring and ensure the wiring is proper.
2. Set P00.18=1.
3. Set P02 motor parameters.
4. Set P00.15=2. The keypad displays "-ΓUN-". Press the RUN key to perform static autotuning.
5. Set P90.00=1 to select the open-loop vector controlled lifting function macro.
6. Perform low-speed trial running.
Braking resistor
(+)
R
S GD350-19 VFD
T
S1
S2
S3
S4
HDIA
HDIB
S5
S6
S7
S8
COM
PW
+24V

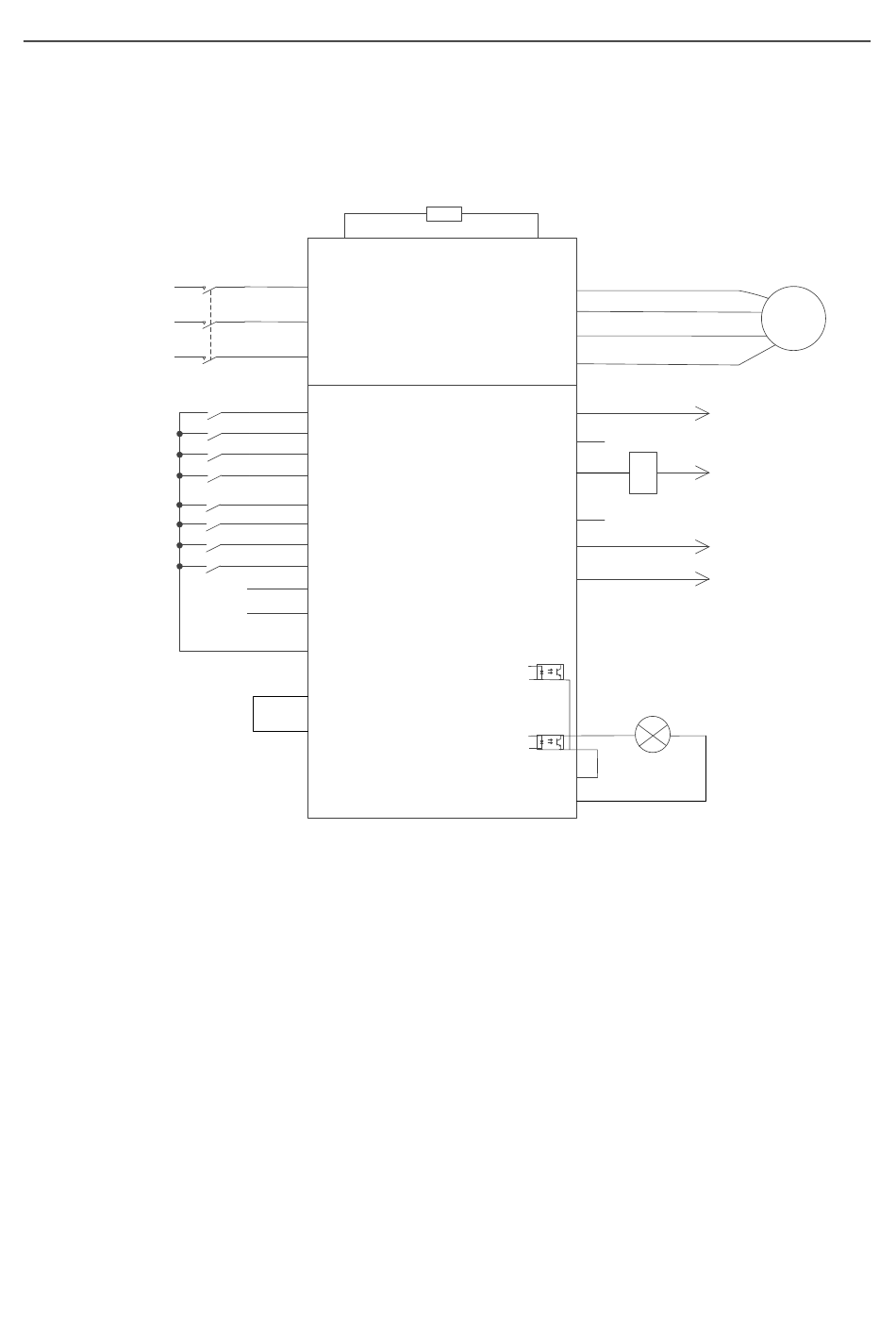

Figure 5.1 Wiring for lifting in open-loop vector control
