Goodrive350-19 series VFD
Function
Name
code
Description

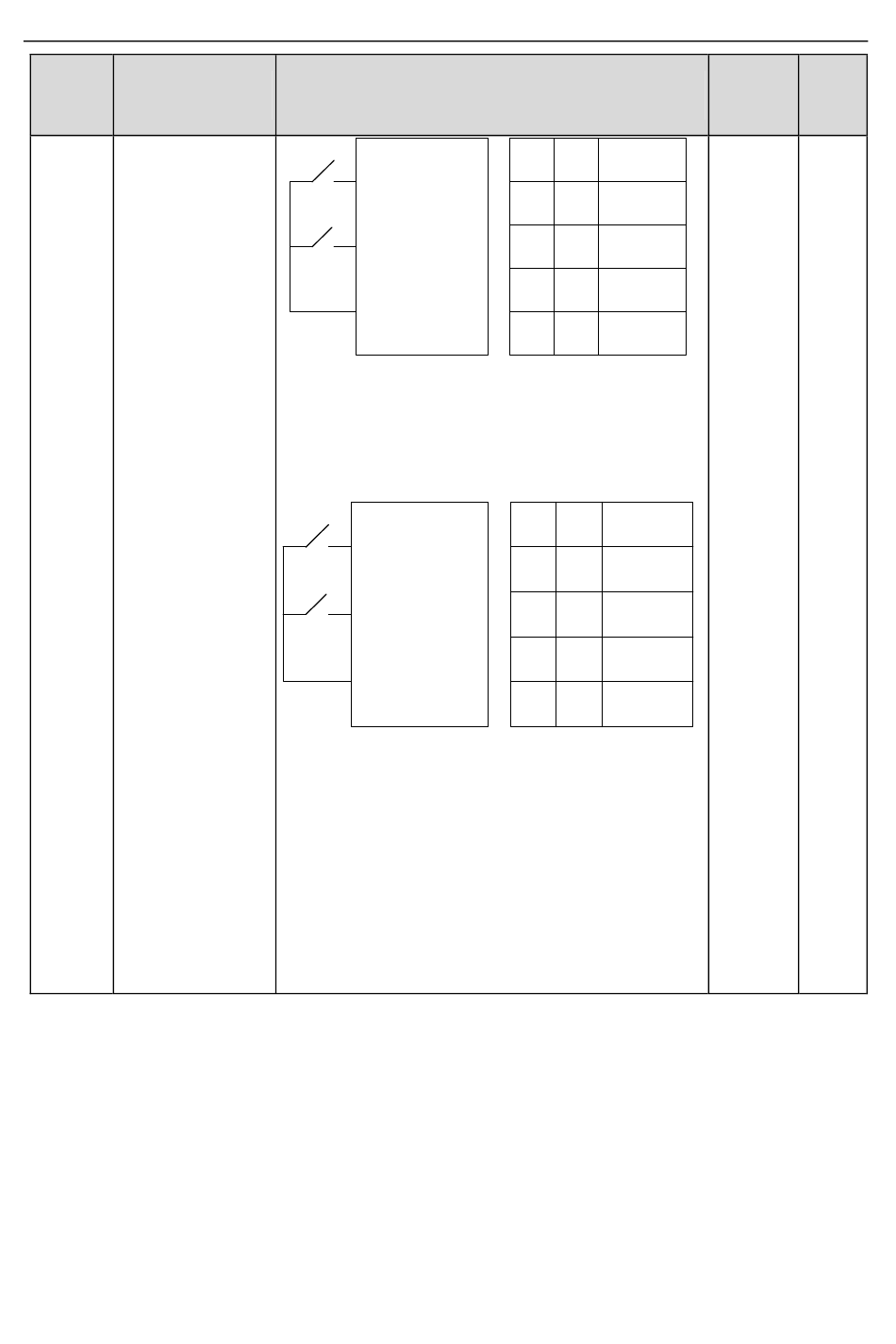

FWD
K1
REV
K2
COM
1: 2-wire control 2; separate enabling function with
direction. In this mode, the defined FWD is
enabling terminal, and the direction is determined
by the state of REV.
FWD
K1
REV
K2
COM
2: 3-wire control 1; This mode defines Sin as
enabling terminal, and the running command is
generated by FWD, the direction is controlled by
REV. During running, the Sin terminal should be
closed, and terminal FWD generates a rising edge
signal, then the VFD starts to run in the direction
set by the state of terminal REV; the VFD should
be stopped by disconnecting terminal Sin.
- 242 -
Running
FWD
REV
command
OFF
OFF
Stop
Forward
ON
OFF
running
Reverse
OFF
ON
running
ON
ON
Hold
Running
FWD REV
command
OFF
OFF
Stop
Forward
ON
OFF
running
OFF
ON
Stop
Reverse
ON
ON
running
Function parameter list
Default
Modify
value
