Computer Diagnostic Test

The computer diagnostic tests enable you to perform a benchmark test for the correct frame rate, as
well as check the memory usage.
7-4-7-1 Benchmark Testing
1) Access the HW Diagnostics menu, as described in
Options" on page
2) Trackball to the Computer Testing button and press Select. The following options are displayed:
3) Trackball to the required option from the Select one of the cines drop-down list and press Select.
The following results are displayed, as shown in
7-84.
04
EVISION
7-71.

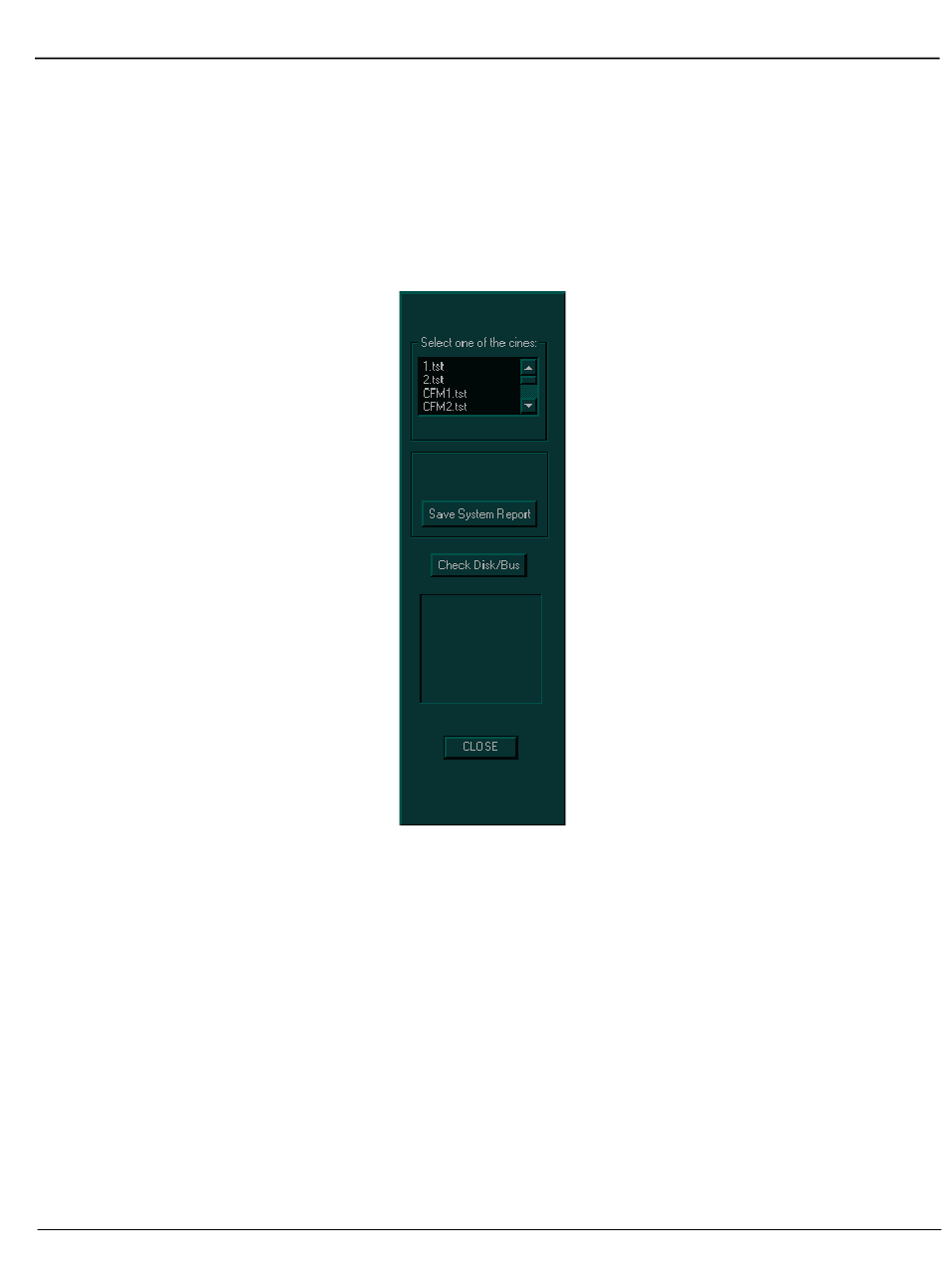

Figure 7-54 Benchmark Testing Options
Chapter 7 Diagnostics/Troubleshooting
V 3N P
IVID RO
7-4-1 "Accessing the Back End Diagnostic
Figure 7-55 "Benchmark Testing Results" on page
