CameraLink Area Scan Camera·User Manual

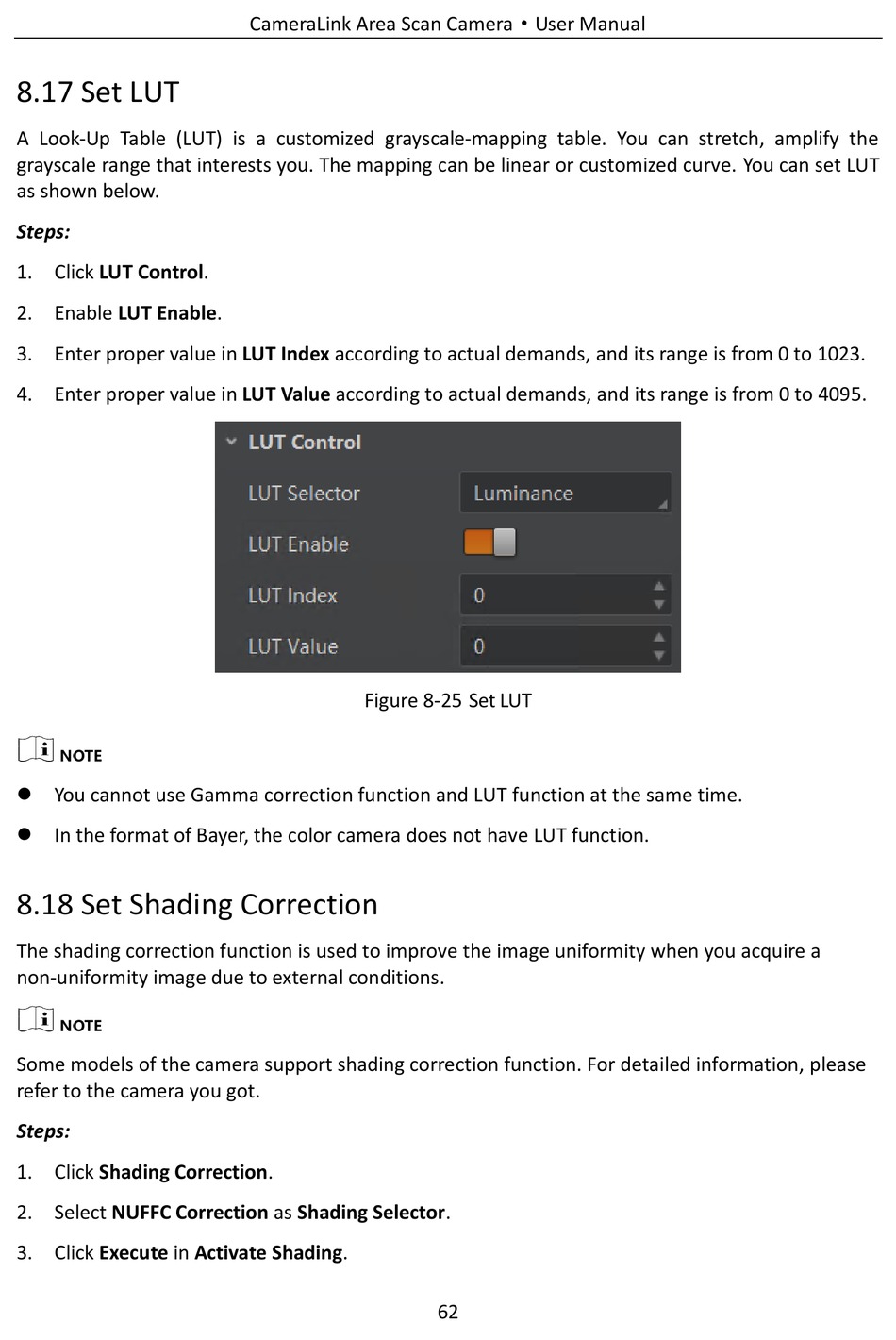

8.17 Set LUT

A Look-Up Table (LUT) is a customized grayscale-mapping table. You can stretch, amplify the
grayscale range that interests you. The mapping can be linear or customized curve. You can set LUT
as shown below.
Steps:
1. Click LUT Control.
2. Enable LUT Enable.
3. Enter proper value in LUT Index according to actual demands, and its range is from 0 to 1023.
4. Enter proper value in LUT Value according to actual demands, and its range is from 0 to 4095.
Figure 8-25 Set LUT
 You cannot use Gamma correction function and LUT function at the same time.
 In the format of Bayer, the color camera does not have LUT function.

8.18 Set Shading Correction

The shading correction function is used to improve the image uniformity when you acquire a
non-uniformity image due to external conditions.
Some models of the camera support shading correction function. For detailed information, please
refer to the camera you got.
Steps:
1. Click Shading Correction.
2. Select NUFFC Correction as Shading Selector.
3. Click Execute in Activate Shading.
62
