 The Width value plus Offset X value should not be larger than Width Max parameter value,
Height value plus Offset Y value should not be larger than Height Max parameter value
 For different models of camera, the above-mentioned setting steps may be different, please
refer to the actual one you got.

8.3 Set Image Reverse

The camera supports horizontal and vertical reverse image output. Horizontal reverse refers to the
image reverses in a horizontal way, and vertical reverse refers to the image reverses in a vertical
way. You can set image reverse as shown below.
Steps:
1. Click Image Format Control.
2. Enable Reverse X or Reverse Y according to actual demands.
CameraLink Area Scan Camera·User Manual

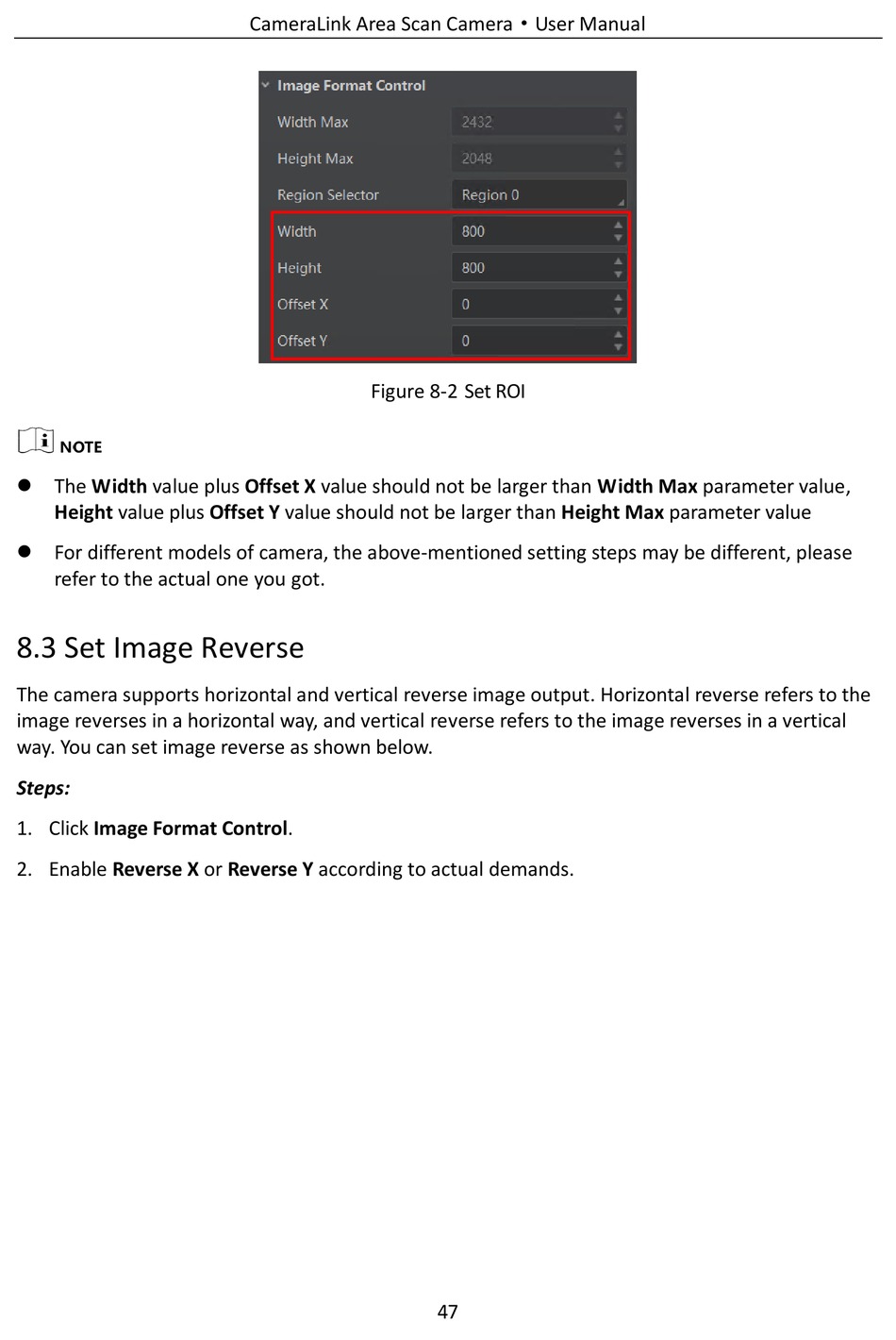

Figure 8-2 Set ROI
47
