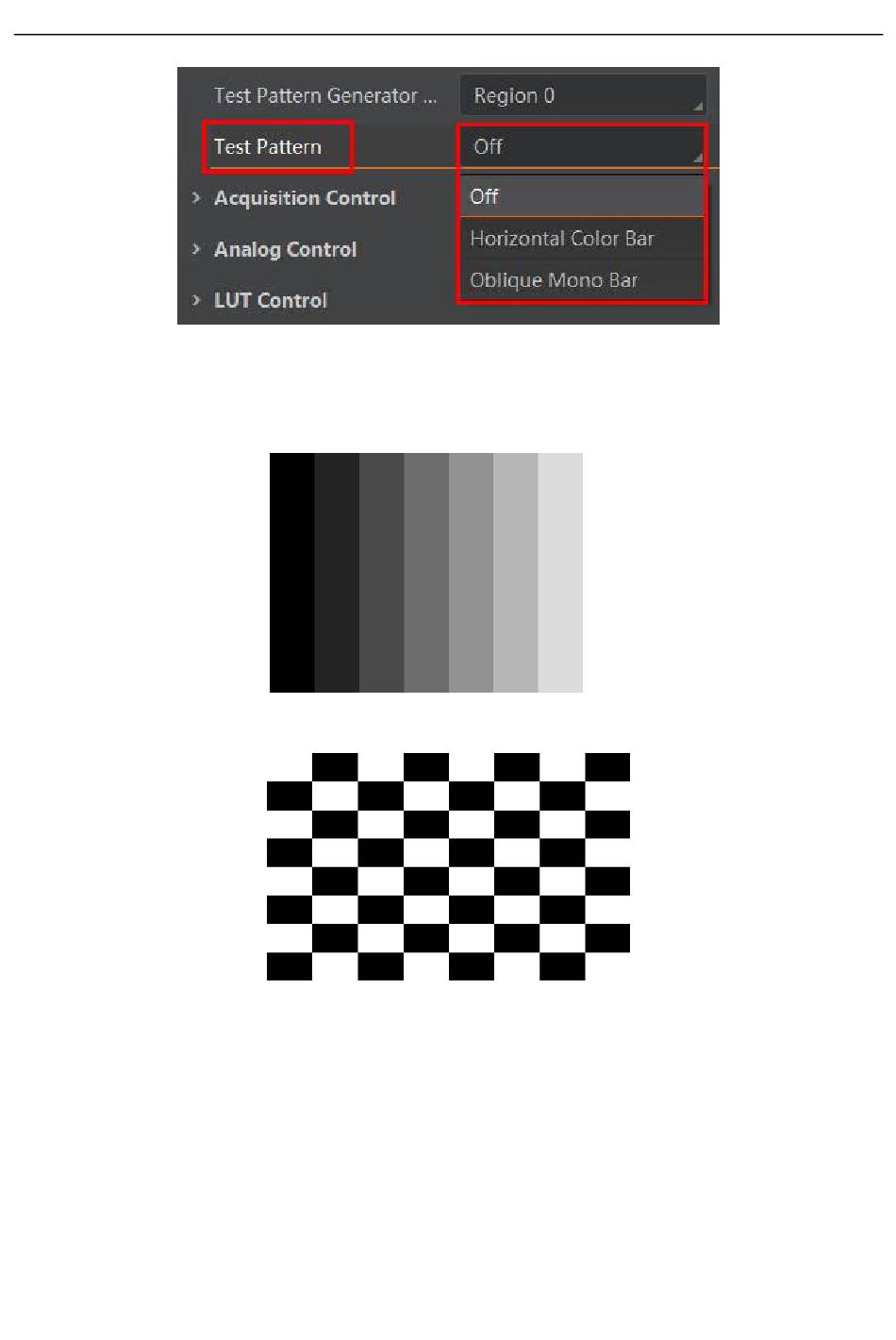

Figure 8-6 Set Test Pattern
The camera offers 5 test patterns, including Mono Bar, Check board, Oblique Mono Bar, Gradual
Mono Bar and Horizontal Color Bar, as shown below.
Figure 8-7 Mono Bar Test Pattern
Figure 8-8 Check Board Test Pattern
