CameraLink Area Scan Camera·User Manual
Exposure 1 Exposure 2 Exposure 3
Sensor
exposure
Frame 1 Frame 2
Readout Readout

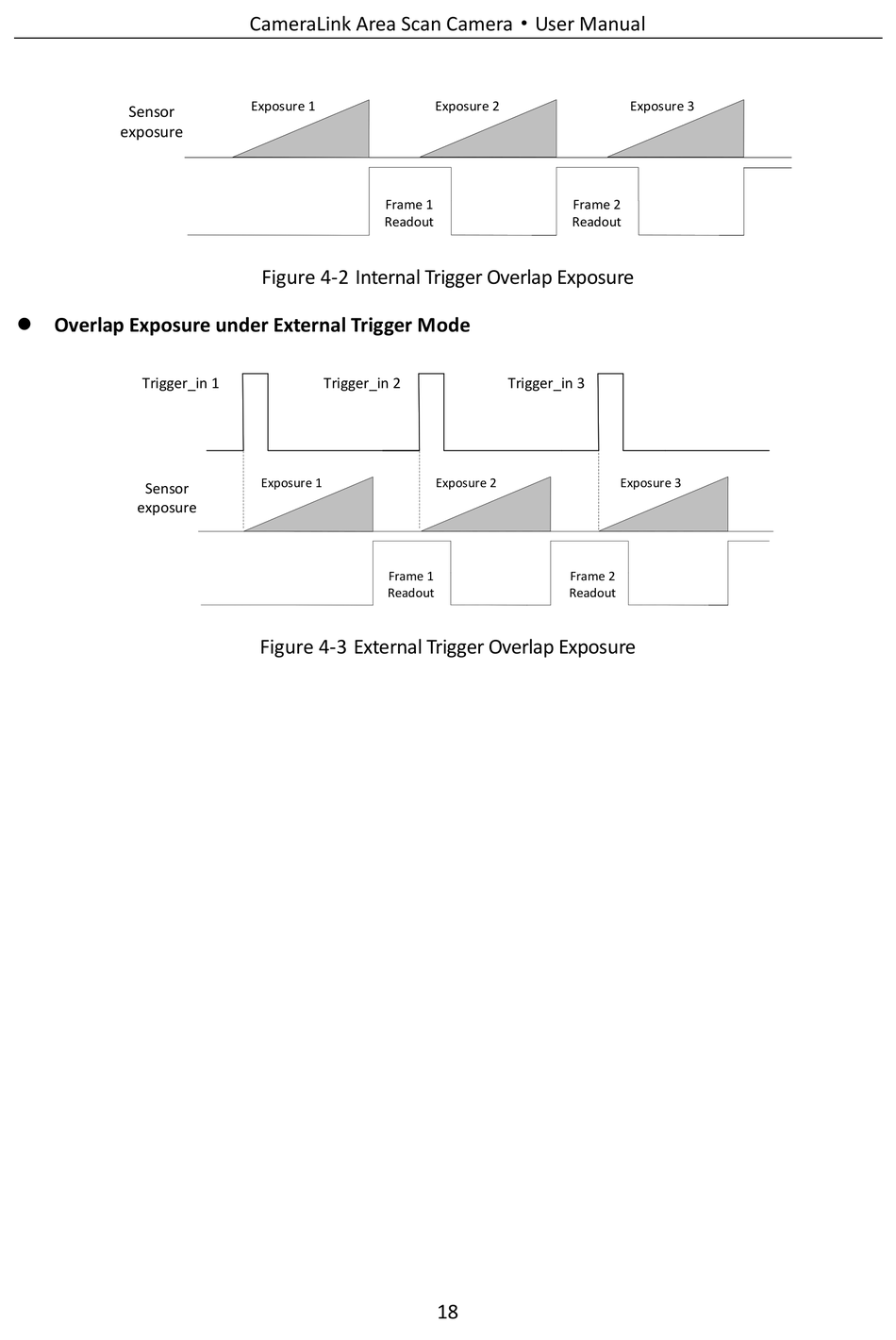

Figure 4-2 Internal Trigger Overlap Exposure
 Overlap Exposure under External Trigger Mode
Figure 4-3 External Trigger Overlap Exposure
