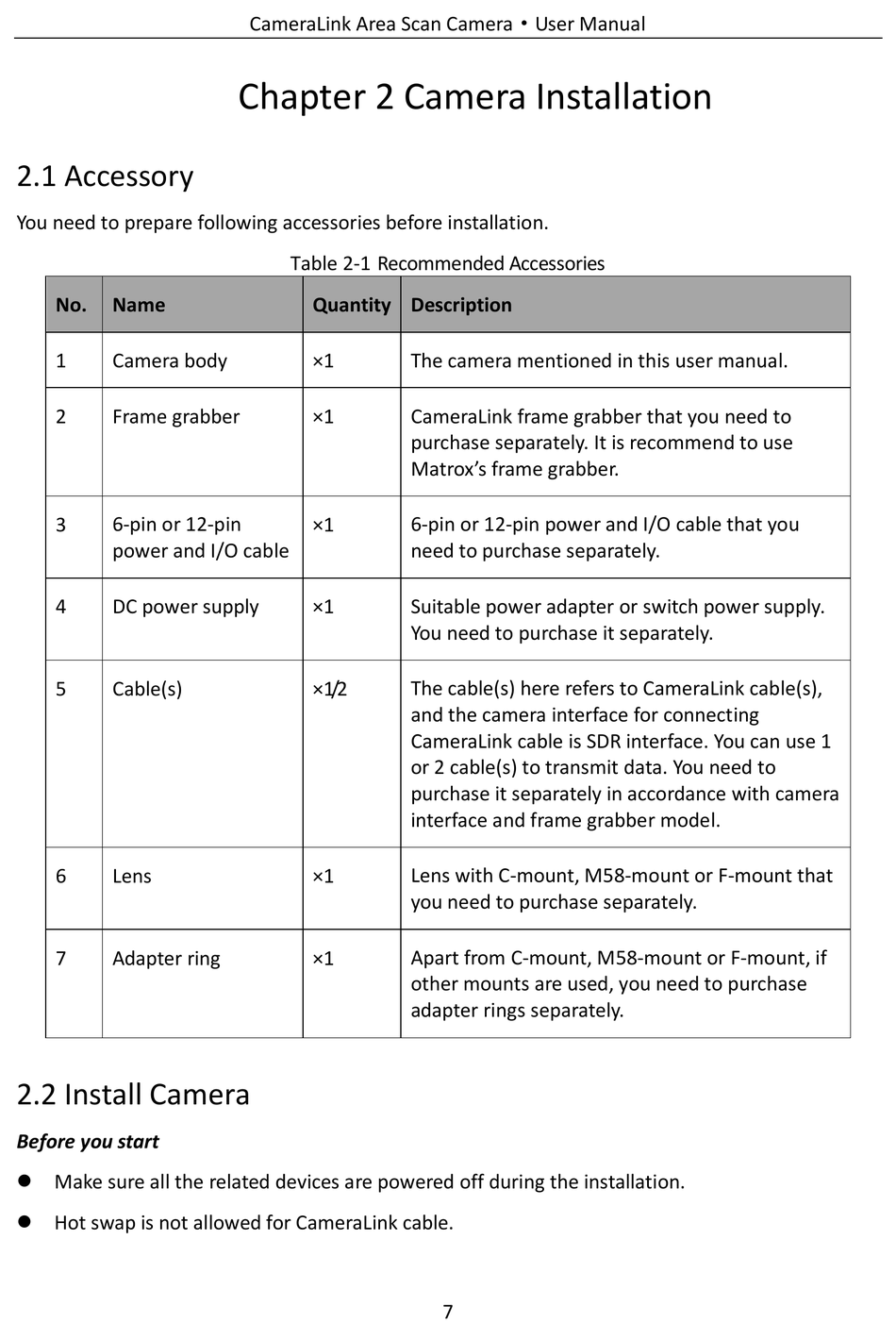

2.1 Accessory
You need to prepare following accessories before installation.
No.
Name
1
Camera body
2
Frame grabber
3
6-pin or 12-pin
power and I/O cable
4
DC power supply
5
Cable(s)
6
Lens
7
Adapter ring
2.2 Install Camera
Before you start
Make sure all the related devices are powered off during the installation.
Hot swap is not allowed for CameraLink cable.
CameraLink Area Scan Camera·User Manual
Chapter 2 Camera Installation
Table 2-1 Recommended Accessories
Quantity Description
×1
×1
×1
×1
×1/2
×1
×1
The camera mentioned in this user manual.
CameraLink frame grabber that you need to
purchase separately. It is recommend to use
Matrox's frame grabber.
6-pin or 12-pin power and I/O cable that you
need to purchase separately.
Suitable power adapter or switch power supply.
You need to purchase it separately.
The cable(s) here refers to CameraLink cable(s),
and the camera interface for connecting
CameraLink cable is SDR interface. You can use 1
or 2 cable(s) to transmit data. You need to
purchase it separately in accordance with camera
interface and frame grabber model.
Lens with C-mount, M58-mount or F-mount that
you need to purchase separately.
Apart from C-mount, M58-mount or F-mount, if
other mounts are used, you need to purchase
adapter rings separately.
