Chapter 1 Overview; Appearance - HikRobot CameraLink Area Scan Camera User Manual

1.1 Appearance

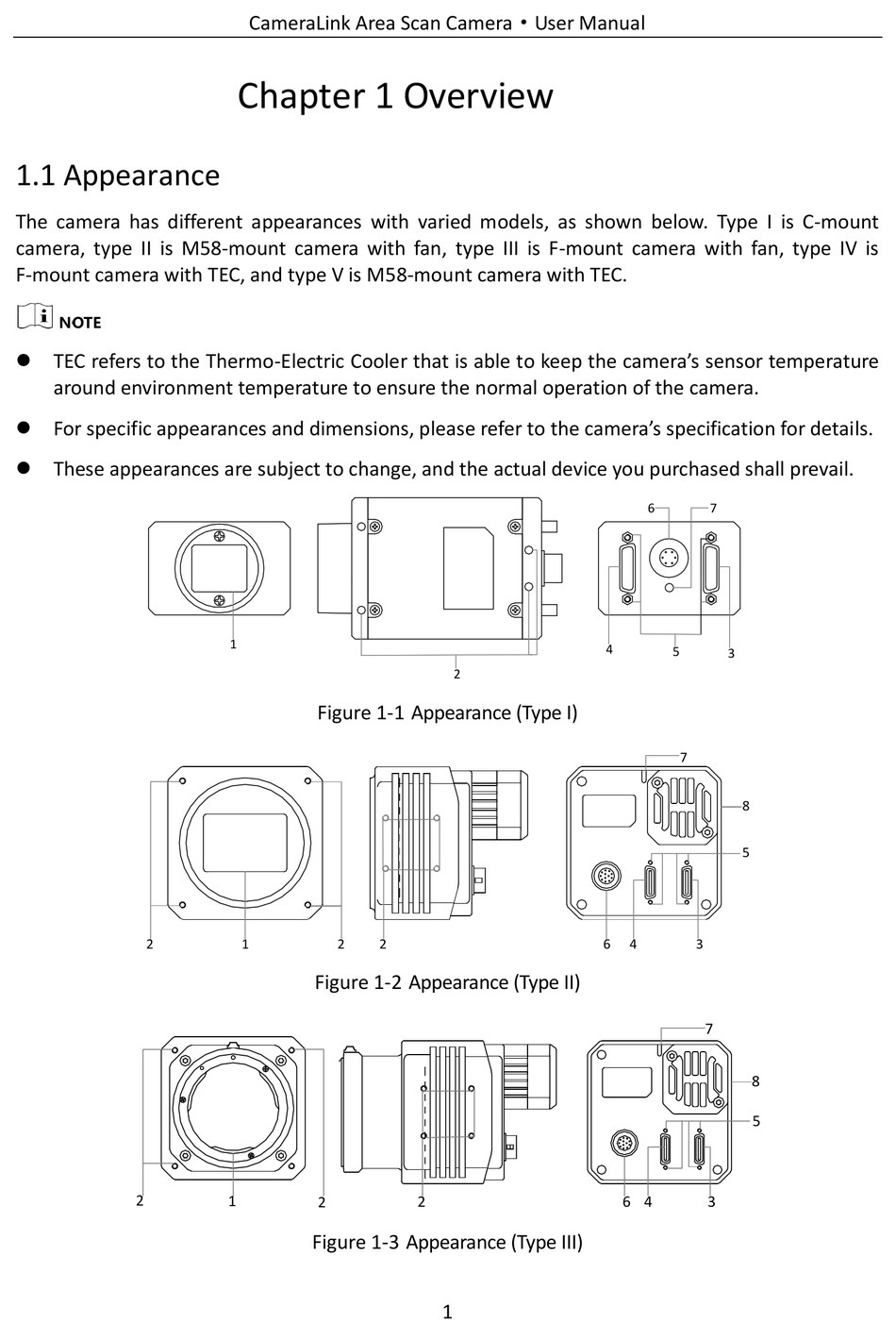

The camera has different appearances with varied models, as shown below. Type I is C-mount
camera, type II is M58-mount camera with fan, type III is F-mount camera with fan, type IV is
F-mount camera with TEC, and type V is M58-mount camera with TEC.
 TEC refers to the Thermo-Electric Cooler that is able to keep the camera's sensor temperature
around environment temperature to ensure the normal operation of the camera.
 For specific appearances and dimensions, please refer to the camera's specification for details.
 These appearances are subject to change, and the actual device you purchased shall prevail.
