Line 2 Wiring - HikRobot CameraLink Area Scan Camera User Manual

If the VCC of NPN device is 24 VDC, and it is recommended to use 1 KΩ to 4.7 KΩ pull-up resistor.
If the VCC of NPN device is 12 VDC, and it is recommended to use 1 KΩ pull-up resistor.

7.2.3 Line 2 Wiring

As bi-direction I/O Circuit, Line 2 can be used as both input signal and output signal.
Type IV camera and type V camera do not have bi-direction I/O function.
Line 2 Configured as Input
When the camera uses Line 2 as hardware trigger source, wirings are different with different
external devices of input signal.
 PNP Device
It is recommended to use 330 Ω pull-down resistor.
 NPN Device
If the VCC of NPN device is 24 VDC, and it is recommended to use 1 KΩ to 4.7 KΩ pull-up resistor.
If the VCC of NPN device is 12 VDC, and it is recommended to use 1 KΩ pull-up resistor.
CameraLink Area Scan Camera·User Manual
Camera Power
Supply
Opt-Iso out
I/O Ground
Camera Power
Ground

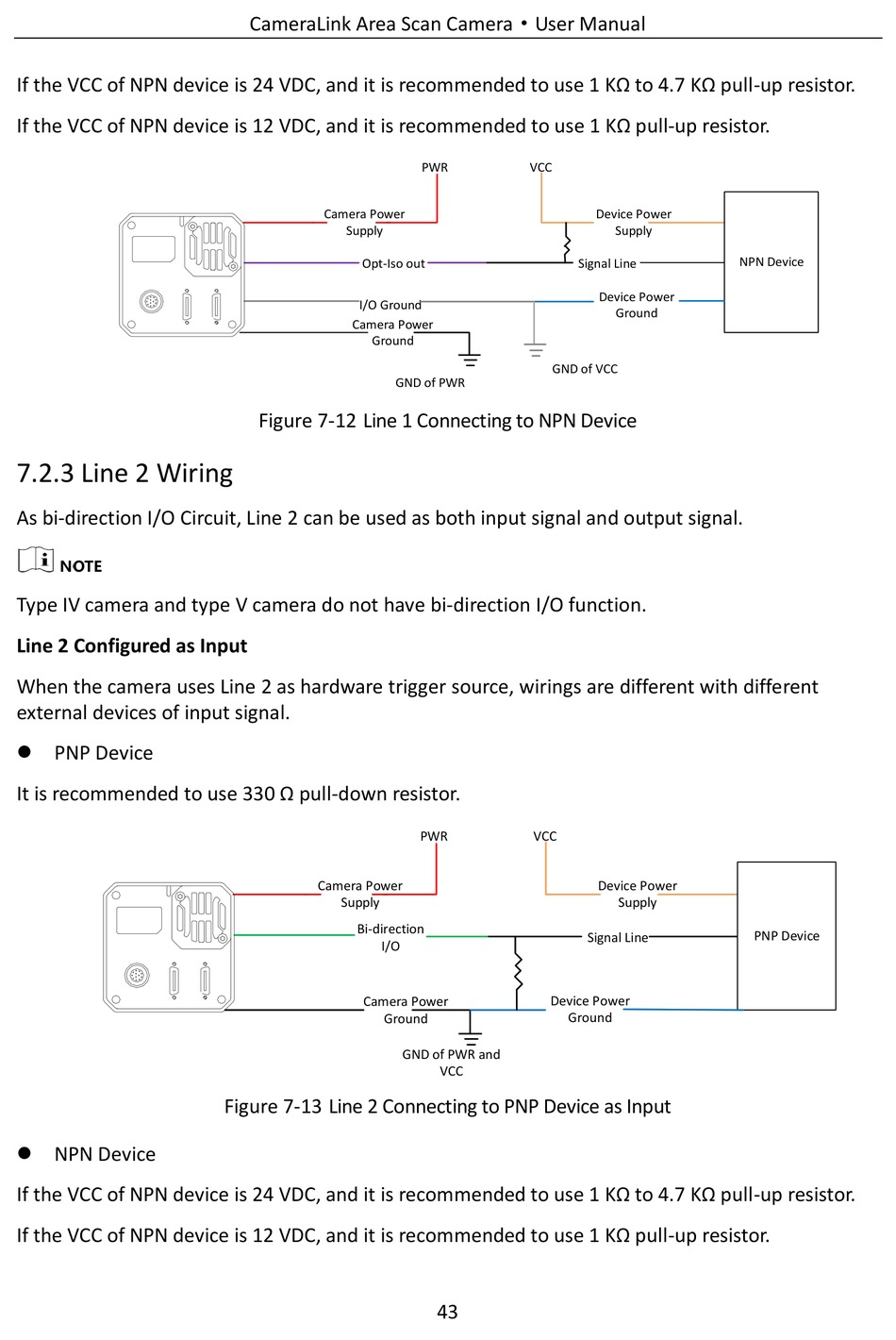

Figure 7-12 Line 1 Connecting to NPN Device
Camera Power
Supply
Bi-direction
I/O
Camera Power
Ground
Figure 7-13 Line 2 Connecting to PNP Device as Input
PWR VCC
GND of VCC
GND of PWR
PWR VCC
Device Power
GND of PWR and
VCC
43
Device Power
Supply
Signal Line
Device Power
Ground
Device Power
Supply
Signal Line
Ground
NPN Device
PNP Device
