CameraLink Area Scan Camera·User Manual
Trigger_in1 Trigger_in2 Trigger_in3
Before debounce
t2 t
t 6
4
Trigger_in2
Trigger_in3
After debounce
t
5
t
3
t 1
Debouncer Time
Debouncer Time Debouncer Time
(t1>t2, trigger signal is ignored) (t3<t4, trigger signal outputs after delaying t3) (t5<t6, trigger signal outputs after delaying t5)

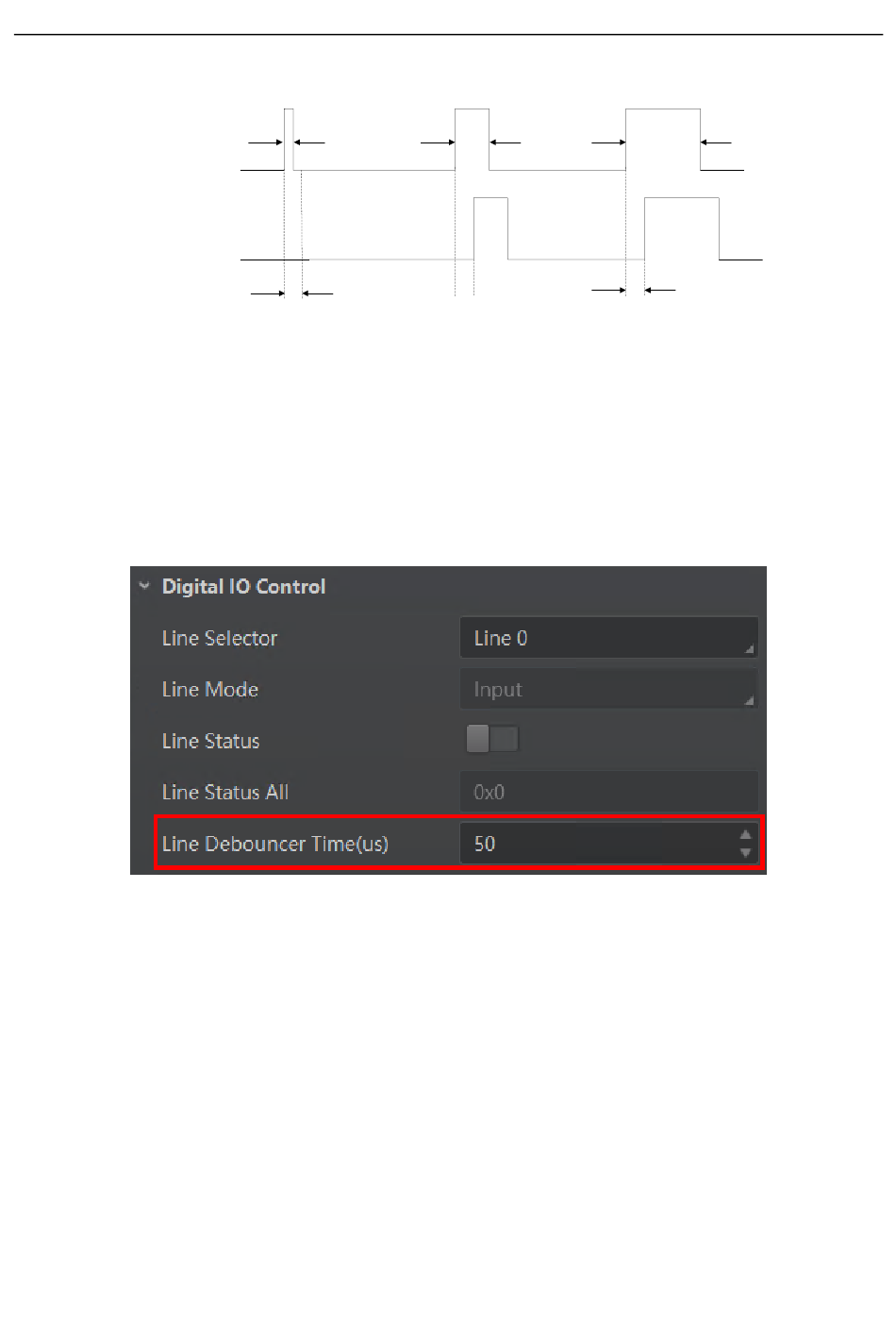

Figure 5-17 Trigger Debouncer Sequence Diagram
You can set trigger debouncer as shown below.
Steps:
1. Click Digital IO Control > Line Debouncer Time.
2. Enter proper value in Line Debouncer Time, and its range is from 1 μs to 1000000 μs.
Figure 5-18 Set Trigger Debouncer
