CoaXPress Area Scan Camera User Manual
·

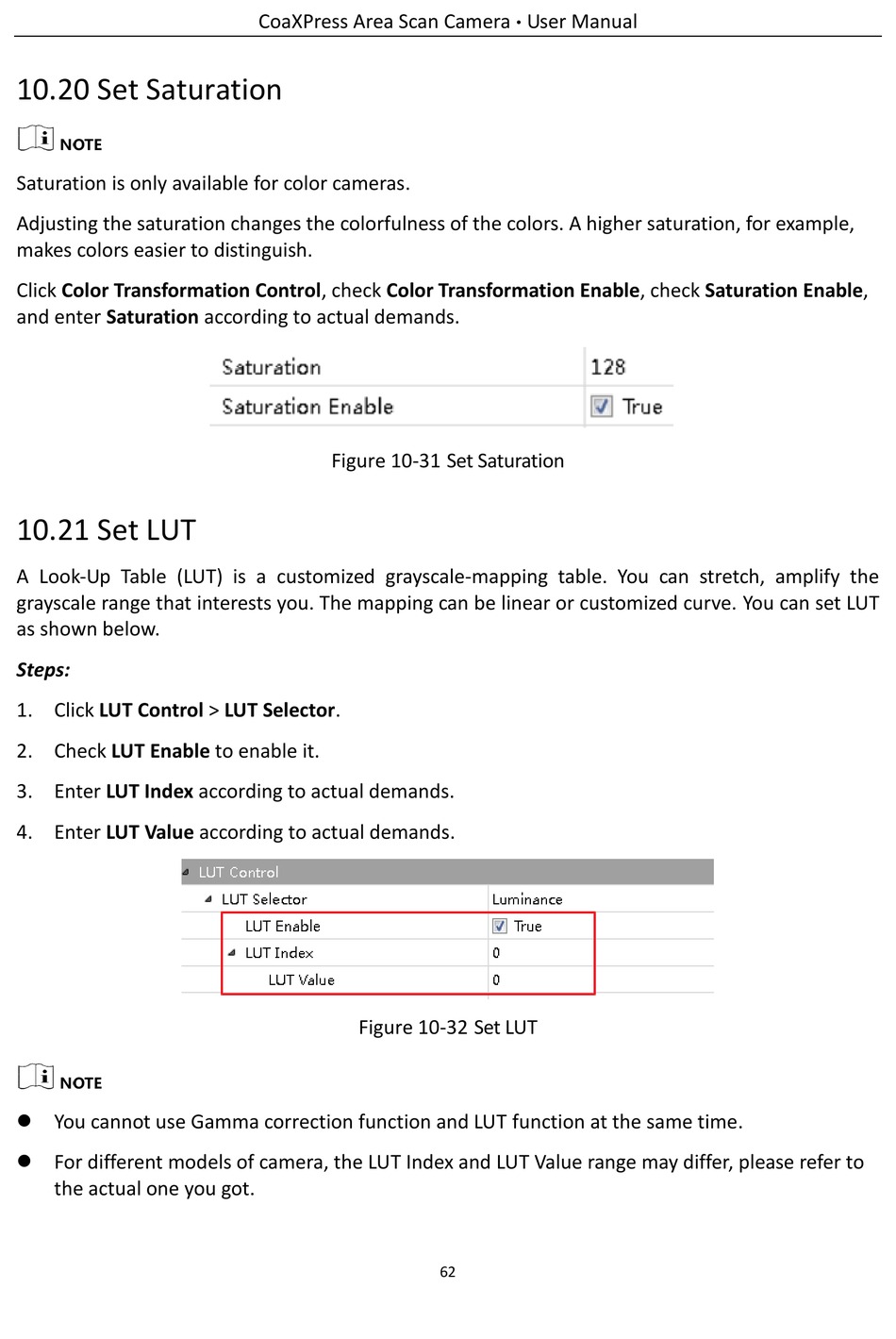

10.20 Set Saturation

Saturation is only available for color cameras.
Adjusting the saturation changes the colorfulness of the colors. A higher saturation, for example,
makes colors easier to distinguish.
Click Color Transformation Control, check Color Transformation Enable, check Saturation Enable,
and enter Saturation according to actual demands.
Figure 10-31 Set Saturation

10.21 Set LUT

A Look-Up Table (LUT) is a customized grayscale-mapping table. You can stretch, amplify the
grayscale range that interests you. The mapping can be linear or customized curve. You can set LUT
as shown below.
Steps:
1. Click LUT Control > LUT Selector.
2. Check LUT Enable to enable it.
3. Enter LUT Index according to actual demands.
4. Enter LUT Value according to actual demands.
Figure 10-32 Set LUT
 You cannot use Gamma correction function and LUT function at the same time.
 For different models of camera, the LUT Index and LUT Value range may differ, please refer to
the actual one you got.
