5.4 Trigger Related Parameters

Under external trigger mode, you can set burst frame count, trigger delay, trigger cache enable,
trigger activation and trigger debouncer. Different trigger sources can set various trigger
parameters, and their relation is shown below.
Trigger Source
Trigger Parameter
Burst frame count
Trigger delay
trigger cache enable
Trigger activation
Trigger debouncer

5.4.1 Set Burst Frame Count

Under external trigger mode, you can set burst frame count as shown below.
Steps:
1. Click Acquisition Control > Acquisition Burst Frame Count.
2. Enter proper value according to actual demands. Its range is from 1 to 1023.
When Acquisition Burst Frame Count is 1, it is in single frame trigger mode. When Acquisition
Burst Frame Count is larger than 1, it is in multi-frame trigger mode. If Acquisition Burst Frame
Count is n and when inputting 1 trigger signal, the camera stops acquiring images after exposing n
times and outputs n frame images. The sequence diagram of burst frame count is shown below.
CameraLink Area Scan Camera·User Manual

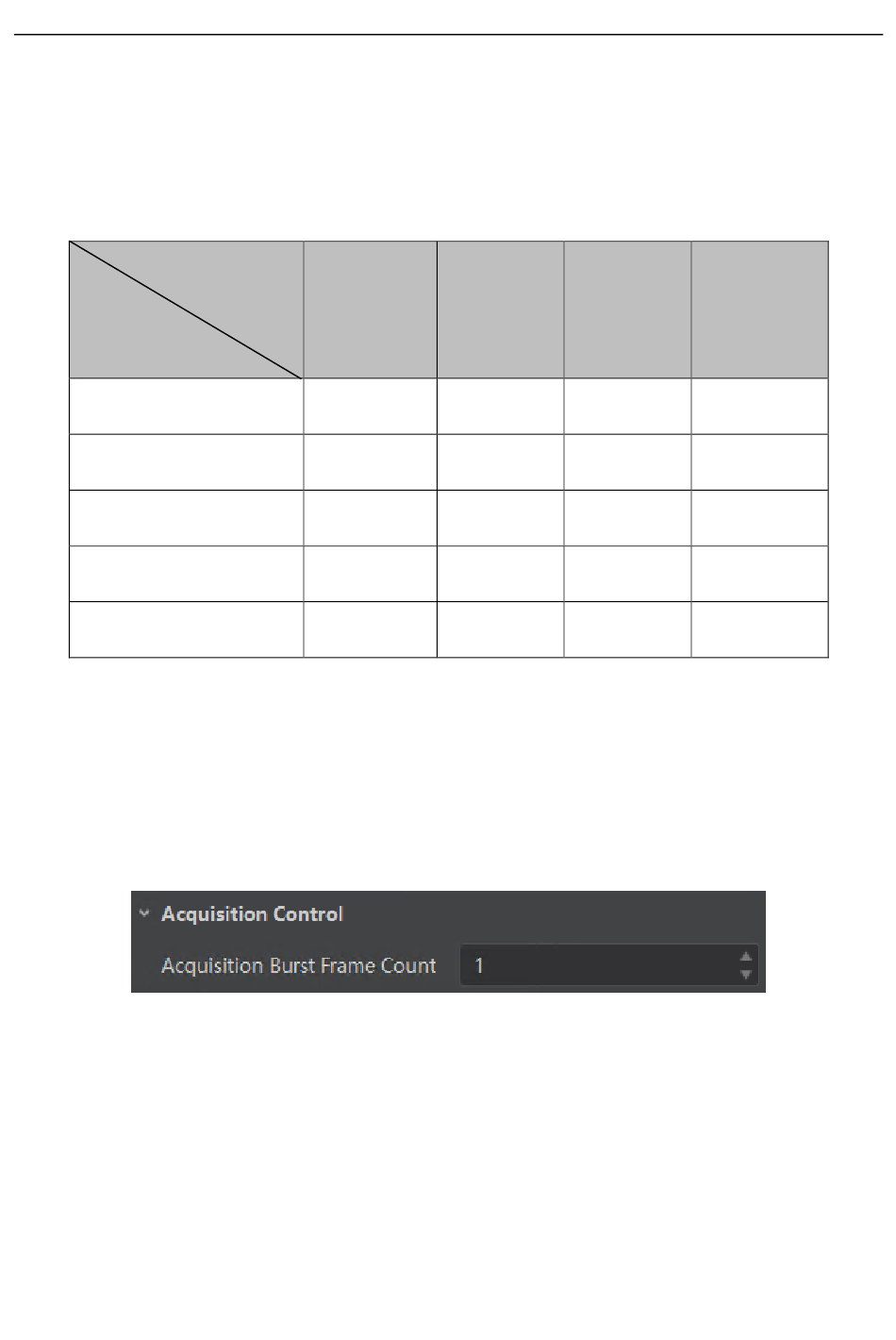

Table 5-4 Trigger Source and Trigger Parameter
Software
Trigger
Support
Support
Support
Not support
Not support
Figure 5-11 Set Burst Frame Count
Hardware Counter
Trigger Trigger
Support Support
Support Support
Support Support
Support Support
Support Not support Support
26
Frame
Grabber
Trigger
Support
Support
Support
Support
