HikRobot CameraLink Area Scan Camera User Manual page 12

2
No. Interface
1 Lens mount
2 Screw hole
3 CL1 interface
4 CL2 interface
5 Screw hole for CL
interface
6 Power and I/O interface
CameraLink Area Scan Camera·User Manual

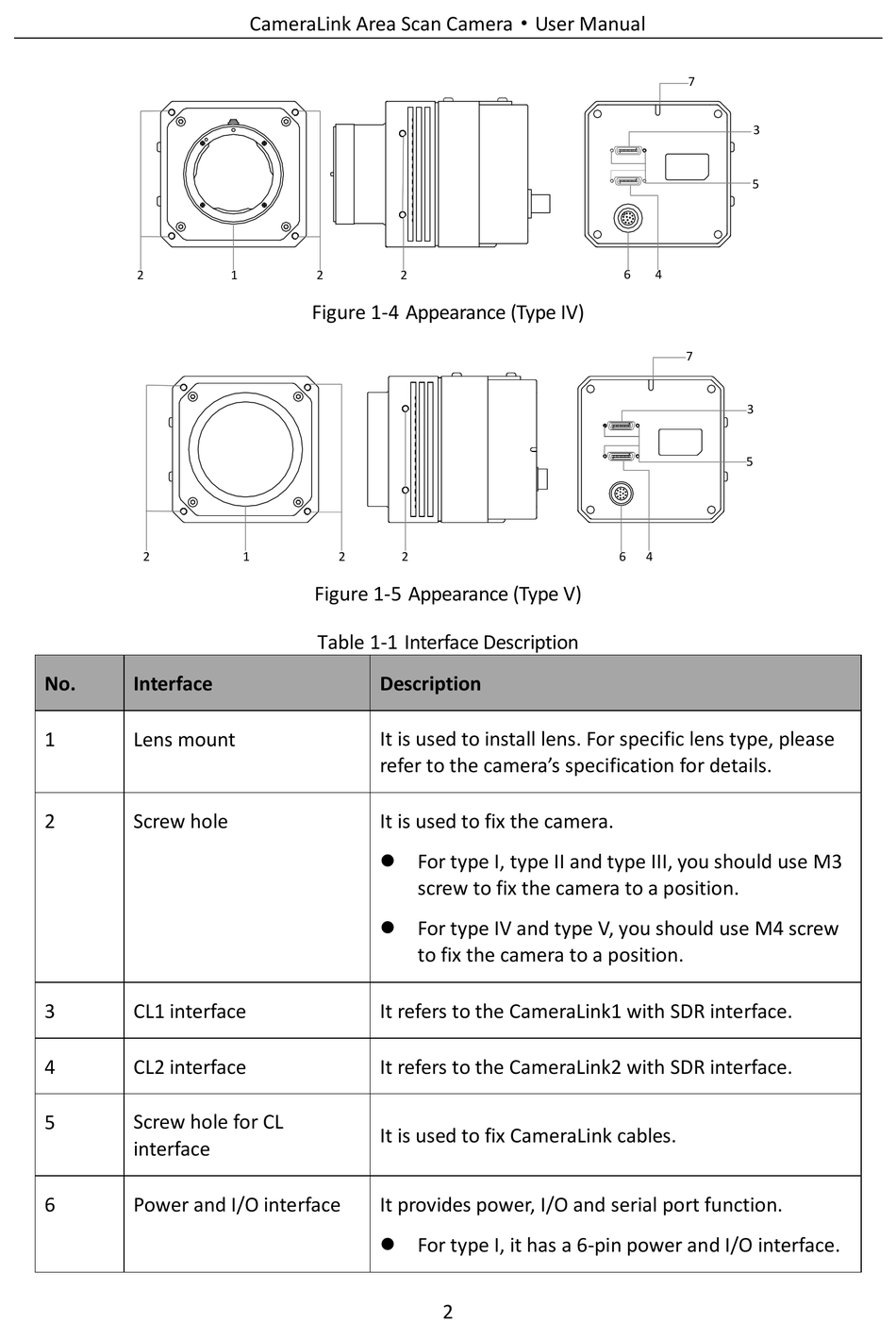

Figure 1-4 Appearance (Type IV)
1 2 2
Figure 1-5 Appearance (Type V)
Table 1-1 Interface Description
Description
It is used to install lens. For specific lens type, please
refer to the camera's specification for details.
It is used to fix the camera.
 For type I, type II and type III, you should use M3
 For type IV and type V, you should use M4 screw
It refers to the CameraLink1 with SDR interface.
It refers to the CameraLink2 with SDR interface.
It is used to fix CameraLink cables.
It provides power, I/O and serial port function.
 For type I, it has a 6-pin power and I/O interface.
screw to fix the camera to a position.
to fix the camera to a position.
2
7
3
5
6 4
