CameraLink Area Scan Camera·User Manual

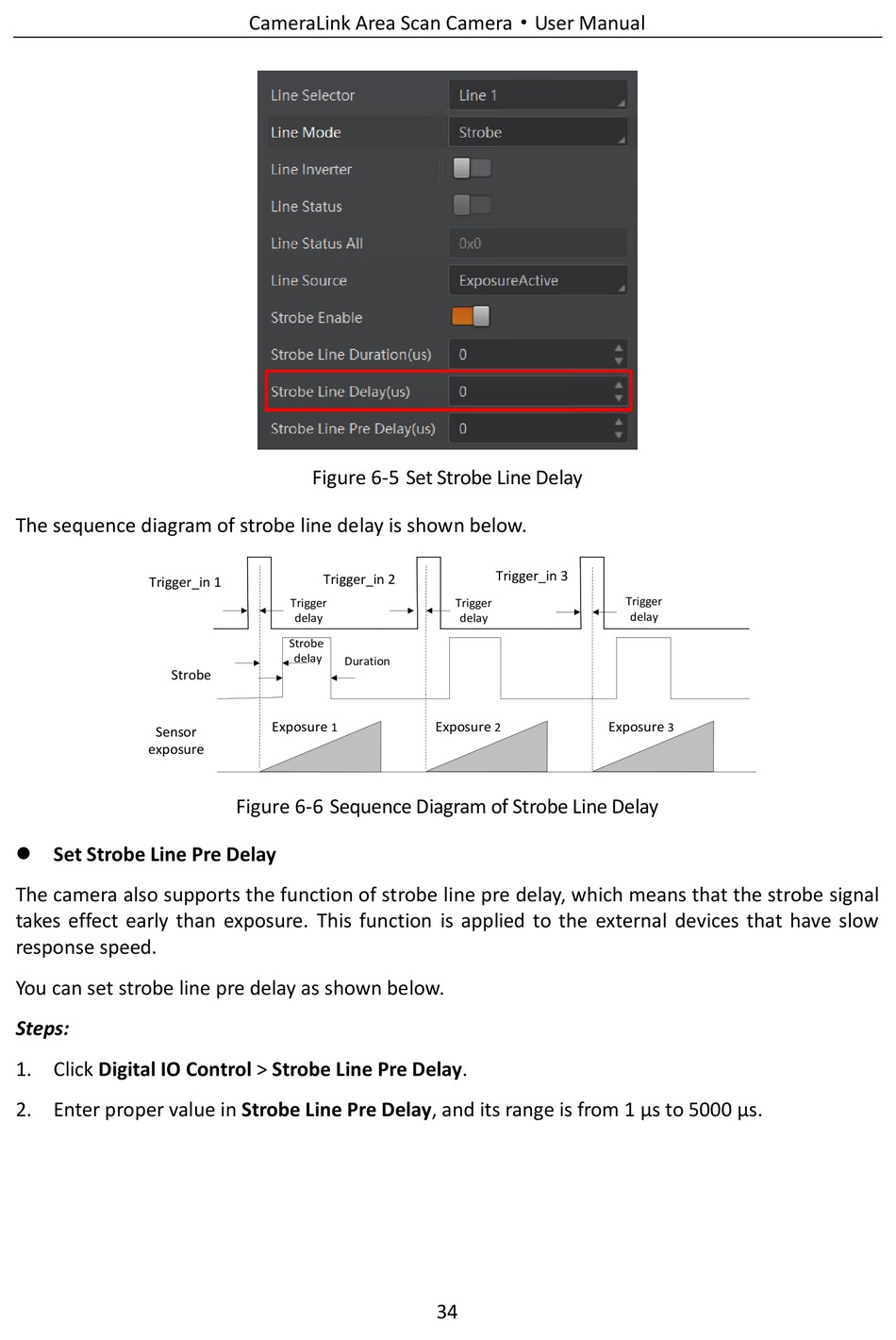

Figure 6-5 Set Strobe Line Delay
The sequence diagram of strobe line delay is shown below.
Figure 6-6 Sequence Diagram of Strobe Line Delay
 Set Strobe Line Pre Delay
The camera also supports the function of strobe line pre delay, which means that the strobe signal
takes effect early than exposure. This function is applied to the external devices that have slow
response speed.
You can set strobe line pre delay as shown below.
Steps:
1. Click Digital IO Control > Strobe Line Pre Delay.
2. Enter proper value in Strobe Line Pre Delay, and its range is from 1 μs to 5000 μs.
