5.3.3 Set Hardware Trigger

The camera has 1 Opto-isolated input (Line 0), and 1 bi-directional I/O (Line 2) that can be
configured as input signal, as shown below.
Steps:
1. Click Digital IO Control.
2. Select Line 2 as Line Selector, and Input as Line Mode.

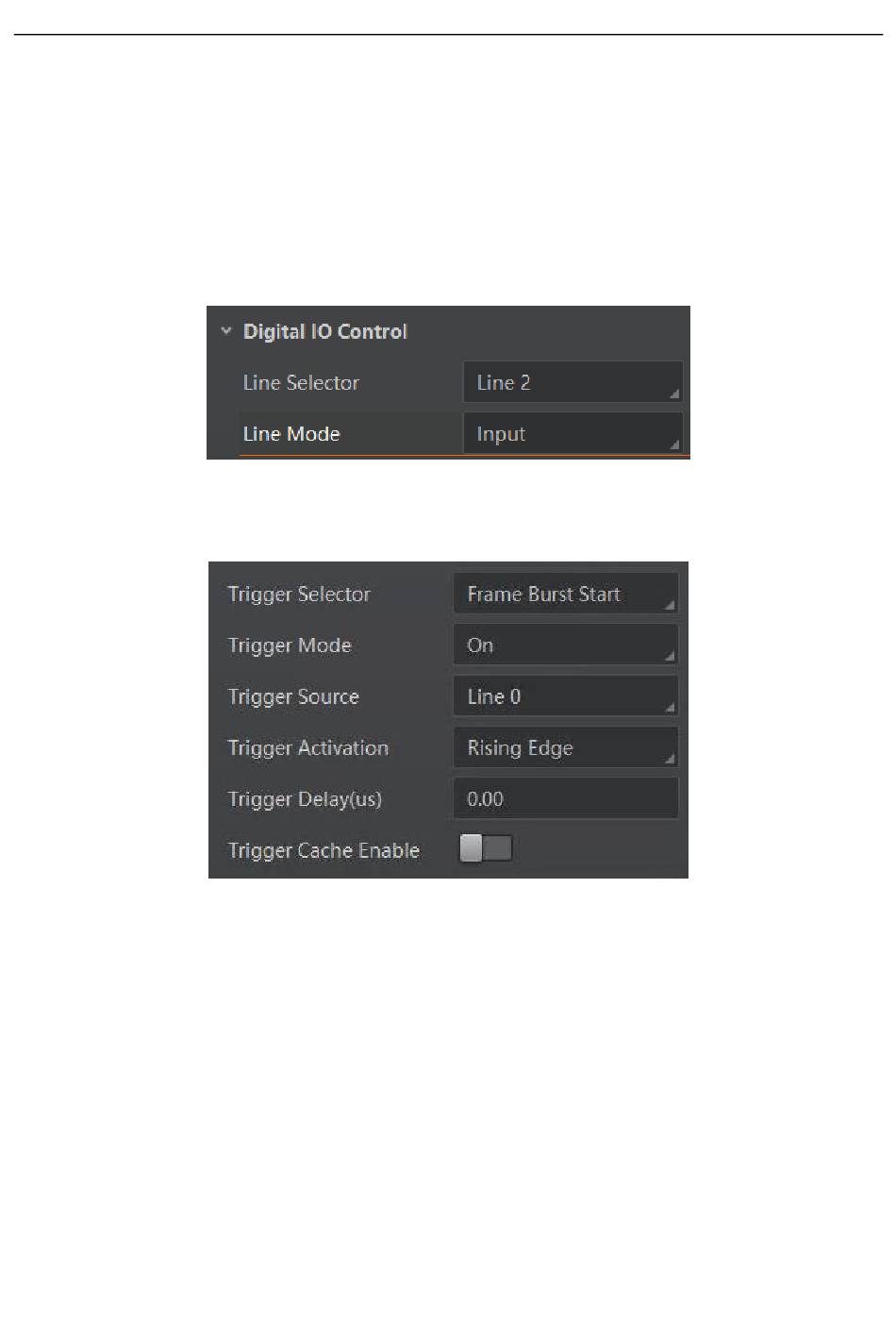

Figure 5-6 Set Line2 as Input Signal
3. Select Line 0, or Line 2 as Trigger Source. Here we take Line 0 as an example.
Figure 5-7 Set Hardware Trigger

5.3.4 Set Counter Trigger

The counter trigger provides frequency division to the external trigger signal. You can set counter
trigger as shown below.
Steps:
1. Click Acquisition Control > Trigger Selector.
2. Select Frame Burst Start as Trigger Selector, and On as Trigger Mode.
3. Select Counter 0 as Trigger Source.
