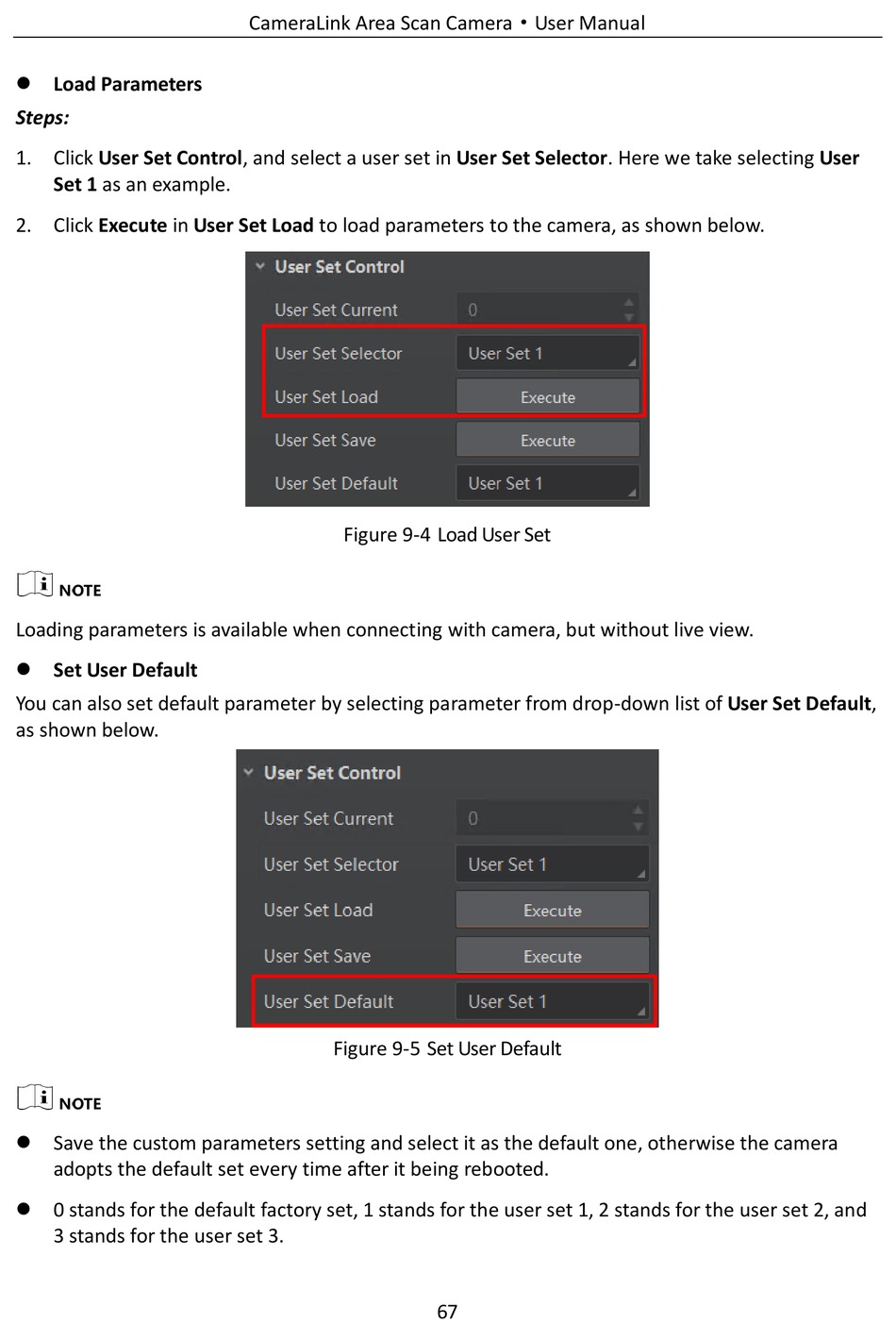

HikRobot CameraLink Area Scan Camera User Manual page 77

 Load Parameters
Steps:
1. Click User Set Control, and select a user set in User Set Selector. Here we take selecting User
Set 1 as an example.
2. Click Execute in User Set Load to load parameters to the camera, as shown below.
Loading parameters is available when connecting with camera, but without live view.
 Set User Default
You can also set default parameter by selecting parameter from drop-down list of User Set Default,
as shown below.
 Save the custom parameters setting and select it as the default one, otherwise the camera
adopts the default set every time after it being rebooted.
 0 stands for the default factory set, 1 stands for the user set 1, 2 stands for the user set 2, and
3 stands for the user set 3.
CameraLink Area Scan Camera·User Manual
Figure 9-4 Load User Set
Figure 9-5 Set User Default
67
