 NPN Device
If the VCC of NPN device is 24 VDC, and it is recommended to use 1 KΩ to 4.7 KΩ pull-up resistor.
If the VCC of NPN device is 12 VDC, and it is recommended to use 1 KΩ pull-up resistor.
PWR VCC
Camera Power Device Power
Supply Supply
Bi-direction
NPN Device
Signal Line
I/O
Device Power
Camera Power
Ground Ground
GND of PWR
and VCC

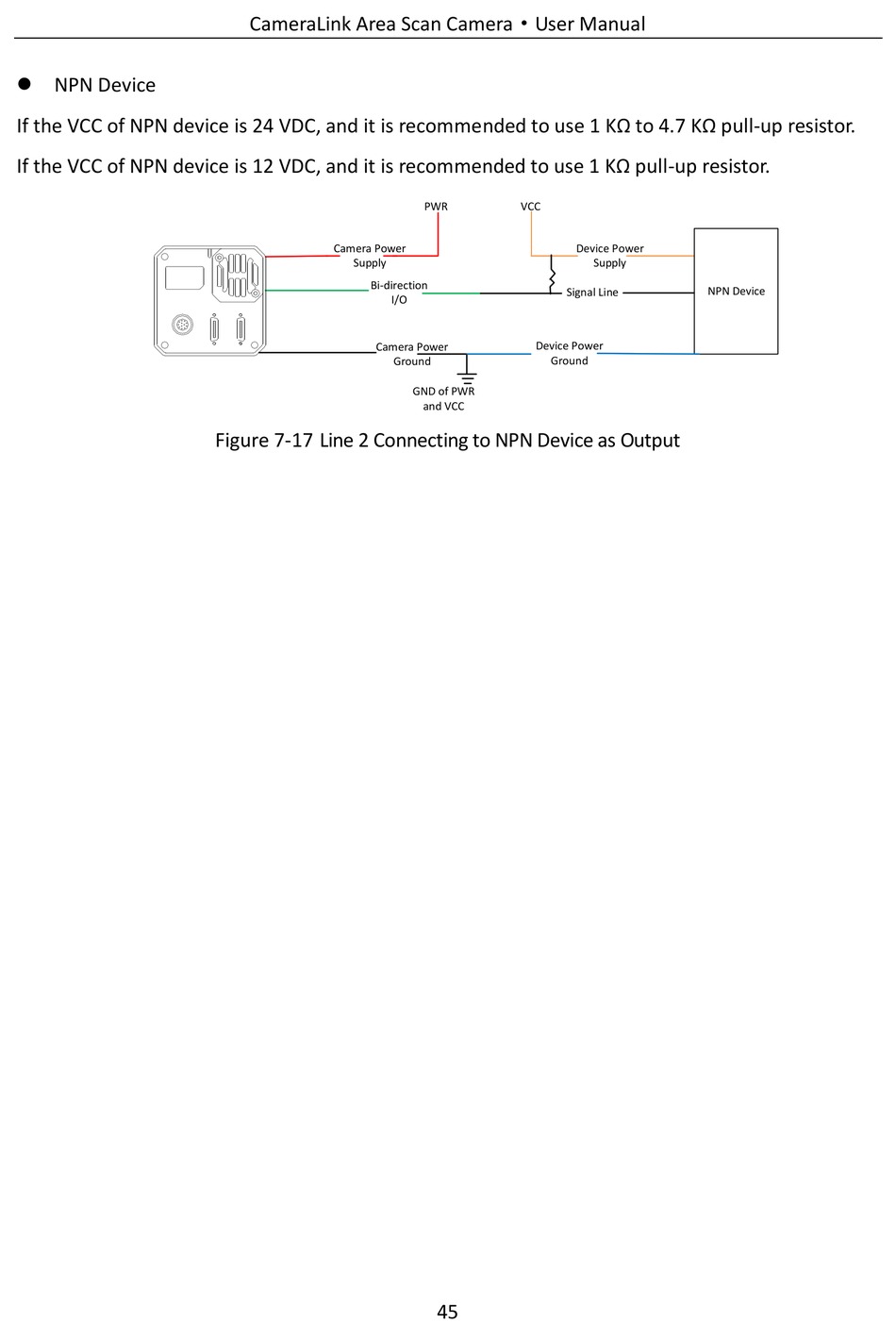

Figure 7-17 Line 2 Connecting to NPN Device as Output
