Set Lut - HikRobot USB3.0 User Manual

The camera supports AOI function that can adjust the brightness and white balance of the entire
image based on the area you selected.
Steps:
1. Click Analog Control > Auto Function AOI Selector, and select AOI 1 or AOI 2 Auto Function AOI
Selector.
2. Enter Auto Function AOI Width, Auto Function AOI Height, Auto Function AOI Offset X, and Auto
Function AOI Offset Y according to actual demands.
3. Enable Auto Function AOI Usage Intensity if AOI 1 is selected as Auto Function AOI Selector. Or
enable Auto Function AOI Usage White Balance if AOI 2 is selected as Auto Function AOI
Selector.

11.18 Set LUT

A Look-Up Table (LUT) is a customized grayscale-mapping table. The LUT allows you to replace the
pixel values in your images by values defined by you.
Steps:
1. Click LUT Control, and enable LUT Enable.
2. Enter LUT Index according to actual demands, and its range is from 0 to 1023.
3. Enter LUT Value according to actual demands, and its range is from 0 to 4095.
USB3.0 Board Level Camera

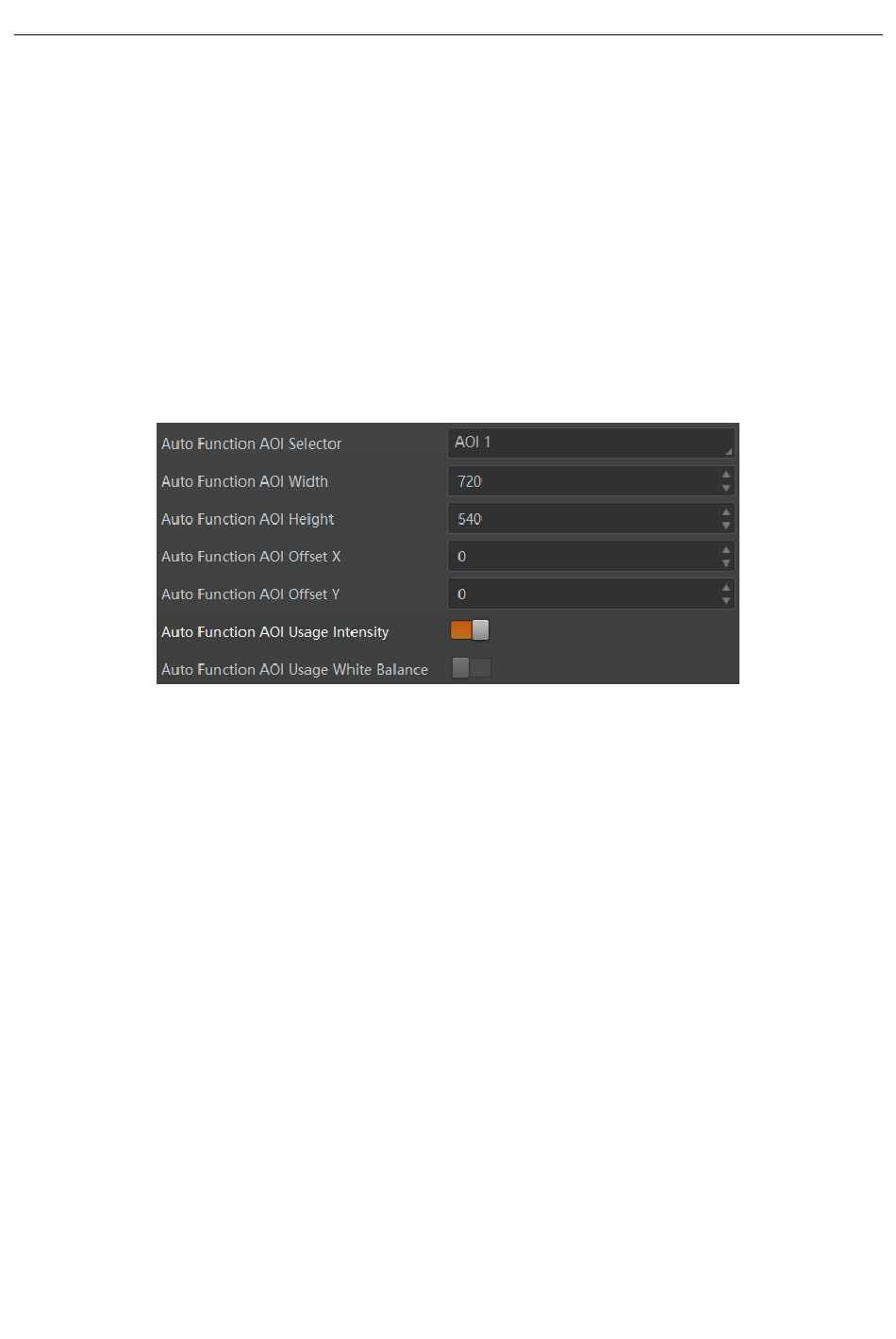

Figure 11-27 Set AOI
User Manual
·
55
