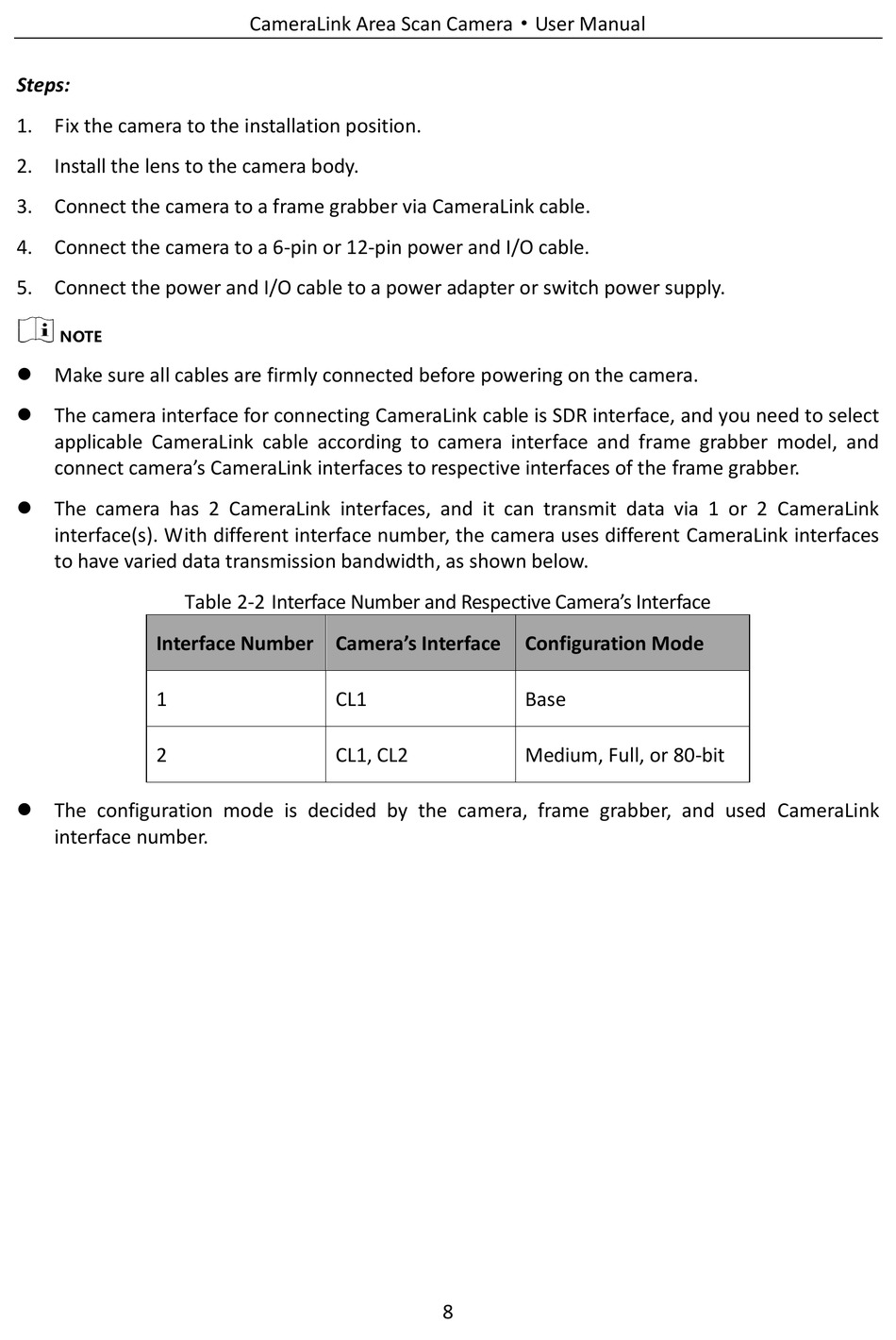

Steps:
1. Fix the camera to the installation position.
2. Install the lens to the camera body.
3. Connect the camera to a frame grabber via CameraLink cable.
4. Connect the camera to a 6-pin or 12-pin power and I/O cable.
5. Connect the power and I/O cable to a power adapter or switch power supply.
 Make sure all cables are firmly connected before powering on the camera.
 The camera interface for connecting CameraLink cable is SDR interface, and you need to select
applicable CameraLink cable according to camera interface and frame grabber model, and
connect camera's CameraLink interfaces to respective interfaces of the frame grabber.
 The camera has 2 CameraLink interfaces, and it can transmit data via 1 or 2 CameraLink
interface(s). With different interface number, the camera uses different CameraLink interfaces
to have varied data transmission bandwidth, as shown below.
Table 2-2 Interface Number and Respective Camera's Interface
Interface Number Camera's Interface
1
2
 The configuration mode is decided by the camera, frame grabber, and used CameraLink
interface number.
CameraLink Area Scan Camera·User Manual
CL1
CL1, CL2
Configuration Mode
Base
Medium, Full, or 80-bit
