3.3 Serial Port Tool

Purpose:

Apart from the MVS client and frame grabber software, the serial port tool can also be used to

detect camera status, read and set camera parameters.

You can set camera parameters by connecting CameraLink serial port cable. When accessing the

camera or using the terminal in the application software, you are required to set the parameters as

follows.

CameraLink Area Scan Camera·User Manual

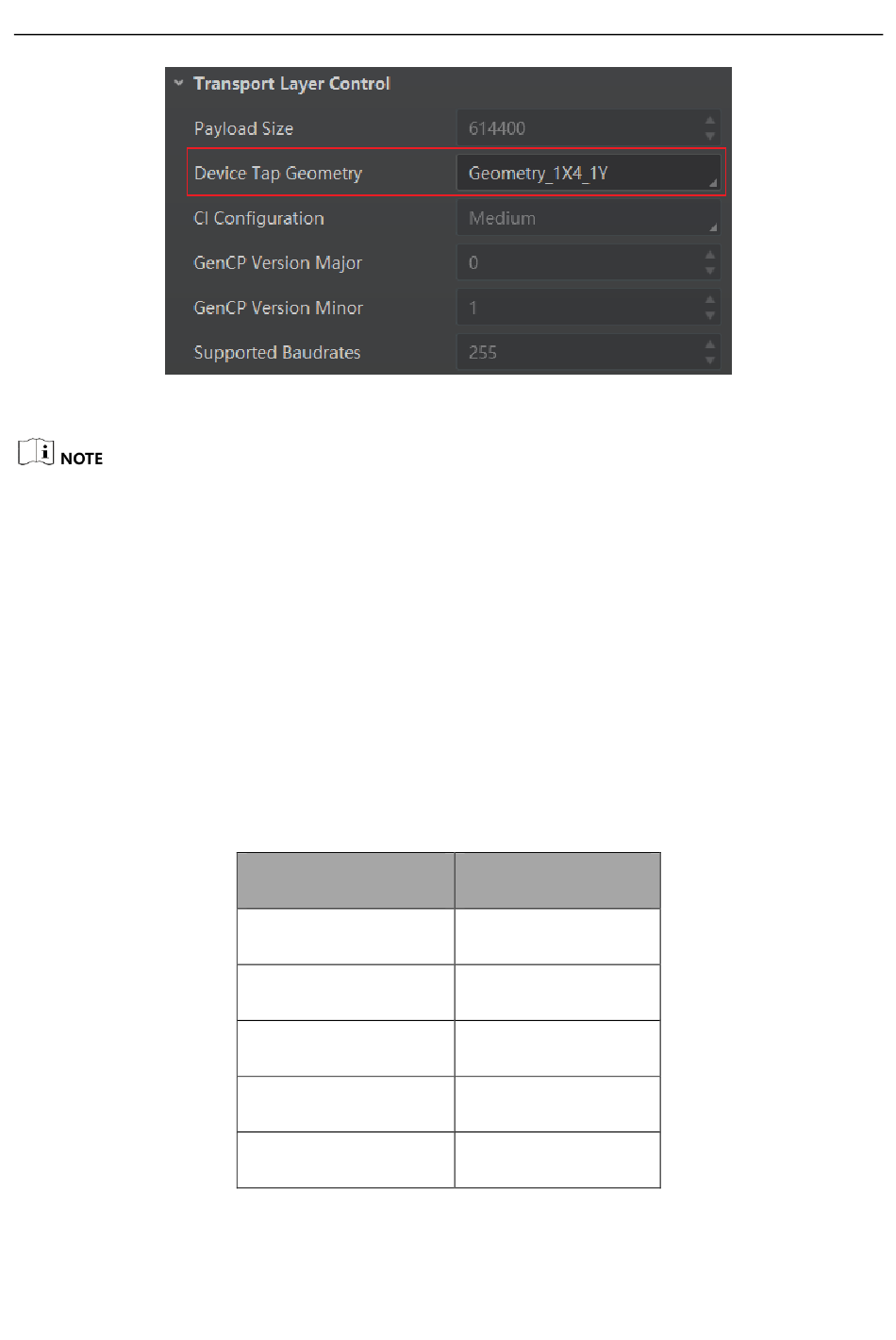

Figure 3-5 Device Tap Geometry

Table 3-5 Serial Port Tool

Serial Port Parameter

Baud Rate

Data Bit

Parity Bit

Stop Bit

Stream Control

Value

9600 bps

8-bit

None

1-bit

None
