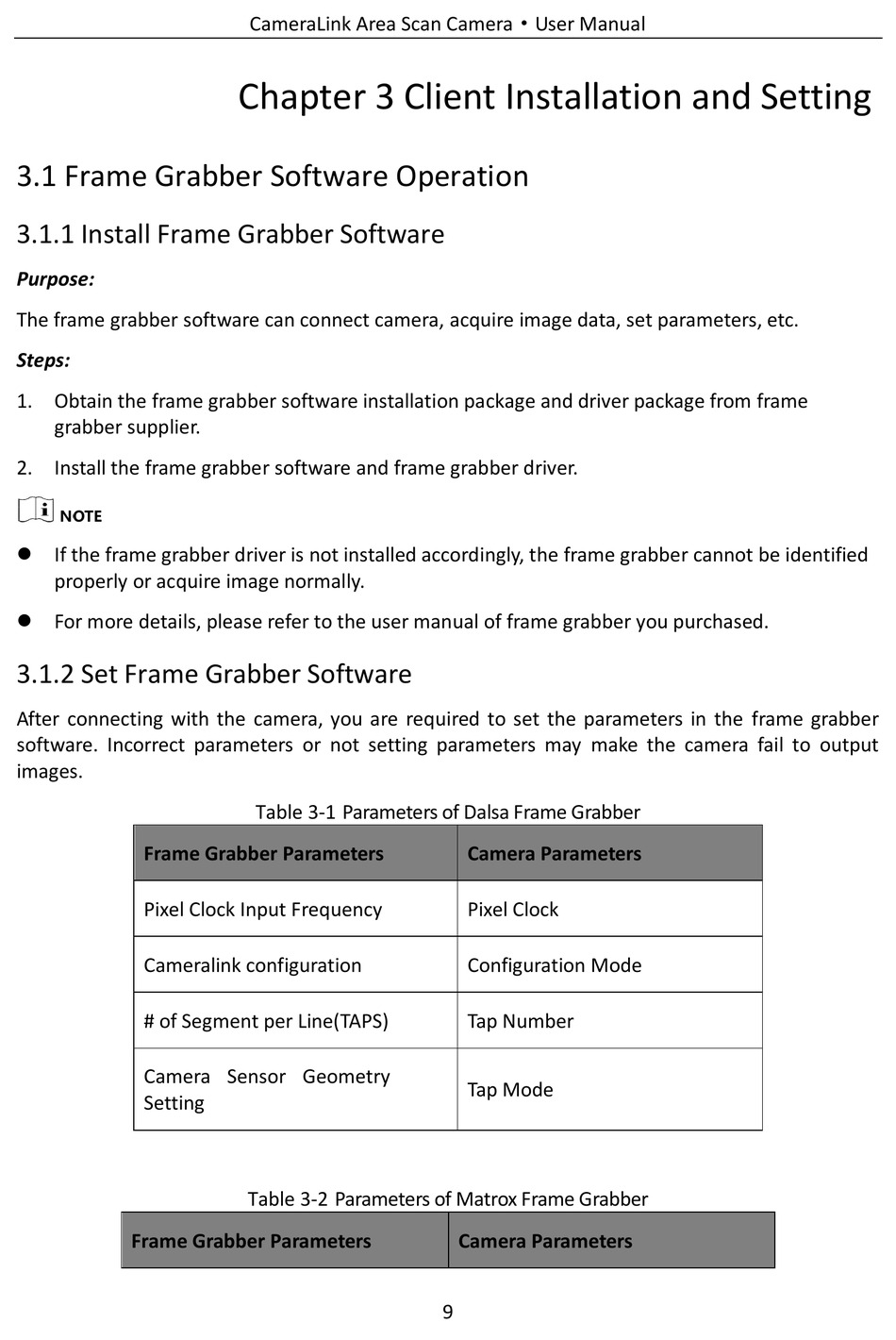

3.1 Frame Grabber Software Operation
3.1.1 Install Frame Grabber Software
Purpose:
The frame grabber software can connect camera, acquire image data, set parameters, etc.
Steps:
1. Obtain the frame grabber software installation package and driver package from frame
grabber supplier.
2. Install the frame grabber software and frame grabber driver.
If the frame grabber driver is not installed accordingly, the frame grabber cannot be identified
properly or acquire image normally.
For more details, please refer to the user manual of frame grabber you purchased.
3.1.2 Set Frame Grabber Software
After connecting with the camera, you are required to set the parameters in the frame grabber
software. Incorrect parameters or not setting parameters may make the camera fail to output
images.
Frame Grabber Parameters
Pixel Clock Input Frequency
Cameralink configuration
# of Segment per Line(TAPS)
Camera Sensor Geometry
Setting
Frame Grabber Parameters
CameraLink Area Scan Camera·User Manual
Chapter 3 Client Installation and Setting
Table 3-1 Parameters of Dalsa Frame Grabber
Table 3-2 Parameters of Matrox Frame Grabber
Camera Parameters
Pixel Clock
Configuration Mode
Tap Number
Tap Mode
Camera Parameters
9
