5.2 Set Trigger Mode

The camera has 2 types of trigger mode, including internal trigger mode and external trigger mode.
The trigger mode principle and parameter setting are shown below.
Trigger Mode Parameter
Internal Acquisition Control >
trigger mode Trigger Mode
External Acquisition Control >
trigger mode Trigger Mode
You can set trigger mode as shown below.
Steps:
1. Click Acquisition Control > Trigger Mode.
2. Select Off or On as Trigger Mode.
CameraLink Area Scan Camera·User Manual

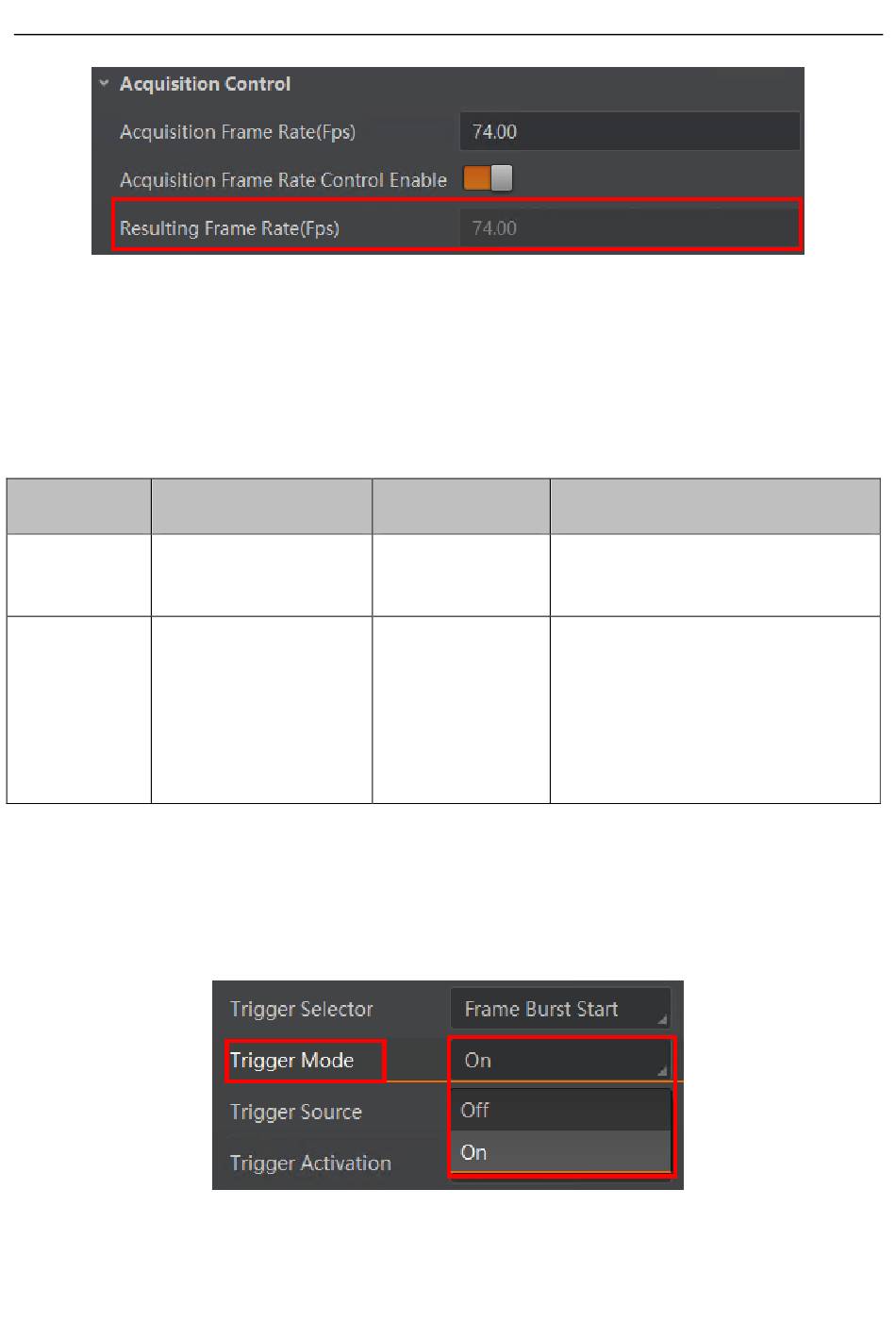

Figure 5-2 Check Resulting Frame Rate
Table 5-1 Trigger Mode Principle and Parameter
Parameter Value
Off
On
Figure 5-3 Set Trigger Mode
Principle
The camera acquires images via its
internal signals.
The camera acquires images via
external signals. These signals can
be software signal and hardware
signal, including software trigger,
hardware trigger, counter trigger
and frame grabber trigger.
20
