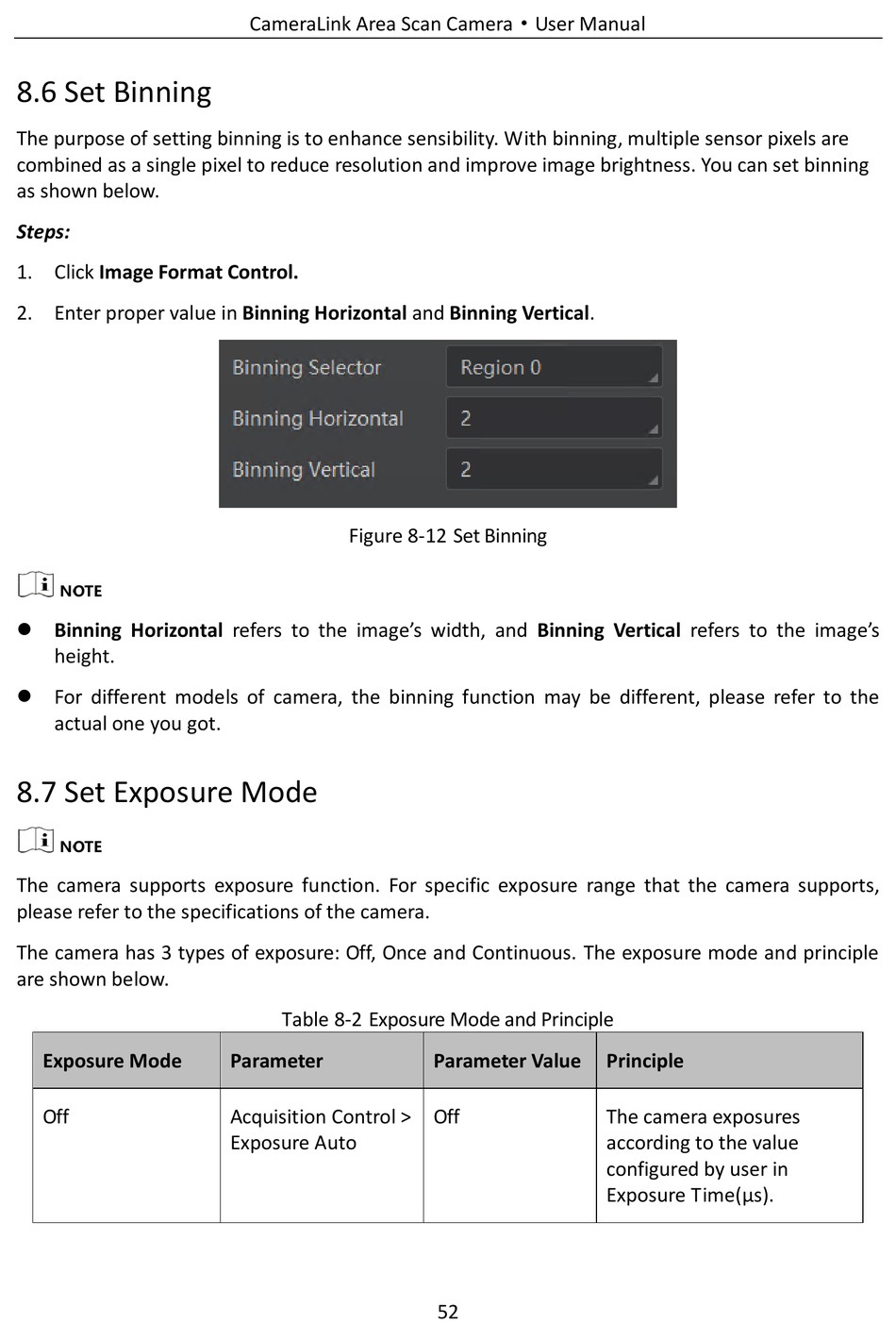

8.6 Set Binning

The purpose of setting binning is to enhance sensibility. With binning, multiple sensor pixels are
combined as a single pixel to reduce resolution and improve image brightness. You can set binning
as shown below.
Steps:
1. Click Image Format Control.
2. Enter proper value in Binning Horizontal and Binning Vertical.
 Binning Horizontal refers to the image's width, and Binning Vertical refers to the image's
height.
 For different models of camera, the binning function may be different, please refer to the
actual one you got.

8.7 Set Exposure Mode

The camera supports exposure function. For specific exposure range that the camera supports,
please refer to the specifications of the camera.
The camera has 3 types of exposure: Off, Once and Continuous. The exposure mode and principle
are shown below.
Exposure Mode
Off
CameraLink Area Scan Camera·User Manual
Figure 8-12 Set Binning
Table 8-2 Exposure Mode and Principle
Parameter
Acquisition Control >
Exposure Auto
Parameter Value
Off
52
Principle
The camera exposures
according to the value
configured by user in
Exposure Time(µs).
