7.2 I/O Wiring

The camera has different appearances and I/O interfaces with varied models. Here we take type II
camera as an example to introduce I/O wiring.
For specific camera appearance, cable color and I/O wiring, please refer to the actual one you got.

7.2.1 Line 0 Wiring

When the camera uses Line 0 as hardware trigger source, wirings are different with different
external devices of input signal.
 PNP Device
 NPN Device
If the VCC of NPN device is 24 VDC, and it is recommended to use 1 KΩ to 4.7 KΩ pull-up resistor.
If the VCC of NPN device is 12 VDC, and it is recommended to use 1 KΩ pull-up resistor.
CameraLink Area Scan Camera·User Manual
Parameter Name
Output Rising Delay
Output Falling Delay
Camera Power
Supply
Opt-Iso in
I/O Ground
Camera Power

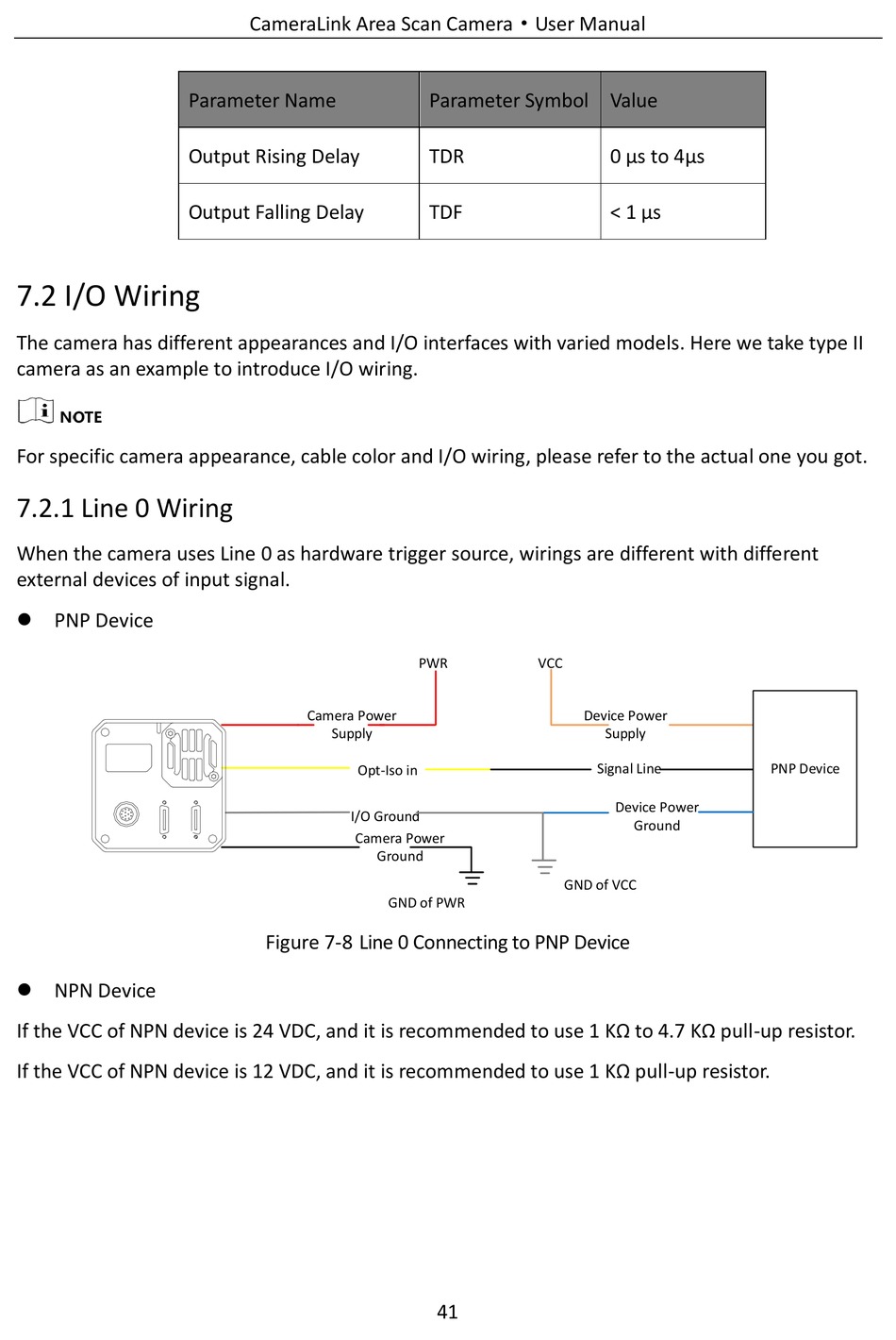

Figure 7-8 Line 0 Connecting to PNP Device
Parameter Symbol Value
TDR
TDF
PWR VCC
Ground
GND of PWR
41
0 μs to 4μs
< 1 μs
Device Power
Supply
Signal Line
Device Power
Ground
GND of VCC
PNP Device
