When using counter as trigger source, you need to set relevant parameters under Counter And
Timer Control. For specific parameter function and setting, please refer to the following table.
Parameter
Counter Selector
Counter Event Source
Counter Reset Source
Counter Reset
Counter Value
Counter Current Value
CameraLink Area Scan Camera·User Manual

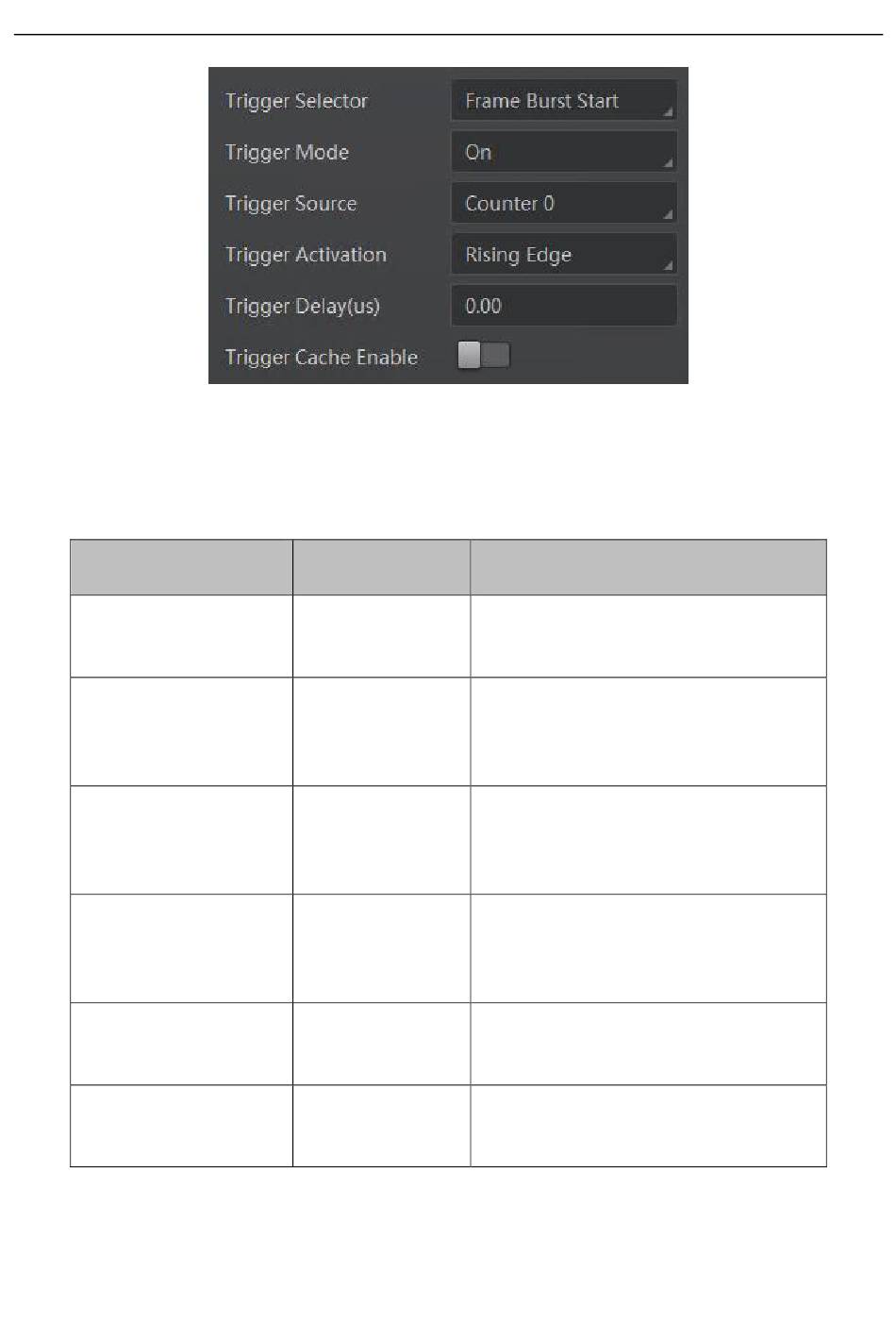

Figure 5-8 Set Counter Trigger
Table 5-3 Description of Counter And Timer Control
Read/Write
Read and write
Read and write
Read and write
Write is available
under certain
condition
Read and write
Read only
Description
It selects counter source. Counter 0 is
available only at present.
It selects the signal source of counter
trigger. Line 0, Line 2, and CC 1/2/3/4
are available. It is disabled by default.
It selects the signal source of resetting
counter. Software is available only. It is
disabled by default.
It resets counter and it can be
executed when selecting Software as
Counter Reset Source.
It is the counter value with the range
of 1 to 1023.
It displays the number of executed
external trigger.
