Frame Grabber Parameters
Pixel Clock Frequency
Cameralink config
Taps
Tap Configuration
 The parameter names may vary from different frame grabbers and are subject to the frame
grabber you purchased. Here we take Dalsa and Matrox frame grabber as an example.
 For frame grabbers of different models, the specific operations in the frame grabber software
may differ. Please refer to the specific user manual of the frame grabber for more operations.

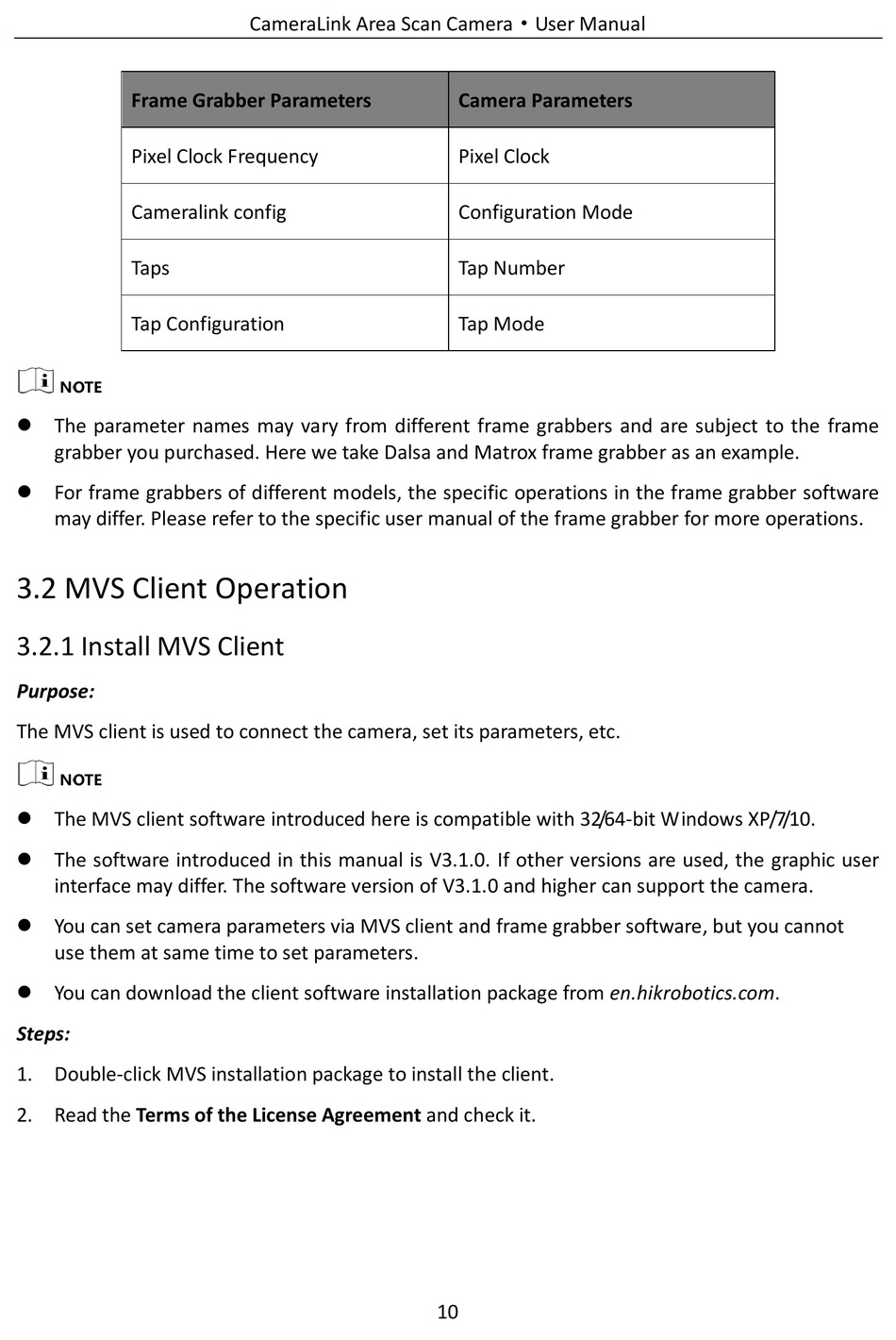

3.2 MVS Client Operation

3.2.1 Install MVS Client

Purpose:
The MVS client is used to connect the camera, set its parameters, etc.
 The MVS client software introduced here is compatible with 32/64-bit Windows XP/7/10.
 The software introduced in this manual is V3.1.0. If other versions are used, the graphic user
interface may differ. The software version of V3.1.0 and higher can support the camera.
 You can set camera parameters via MVS client and frame grabber software, but you cannot
use them at same time to set parameters.
 You can download the client software installation package from en.hikrobotics.com.
Steps:
1. Double-click MVS installation package to install the client.
2. Read the Terms of the License Agreement and check it.
CameraLink Area Scan Camera·User Manual
Camera Parameters
Pixel Clock
Configuration Mode
Tap Number
Tap Mode
10
