X86 Open Platform User Manual
·

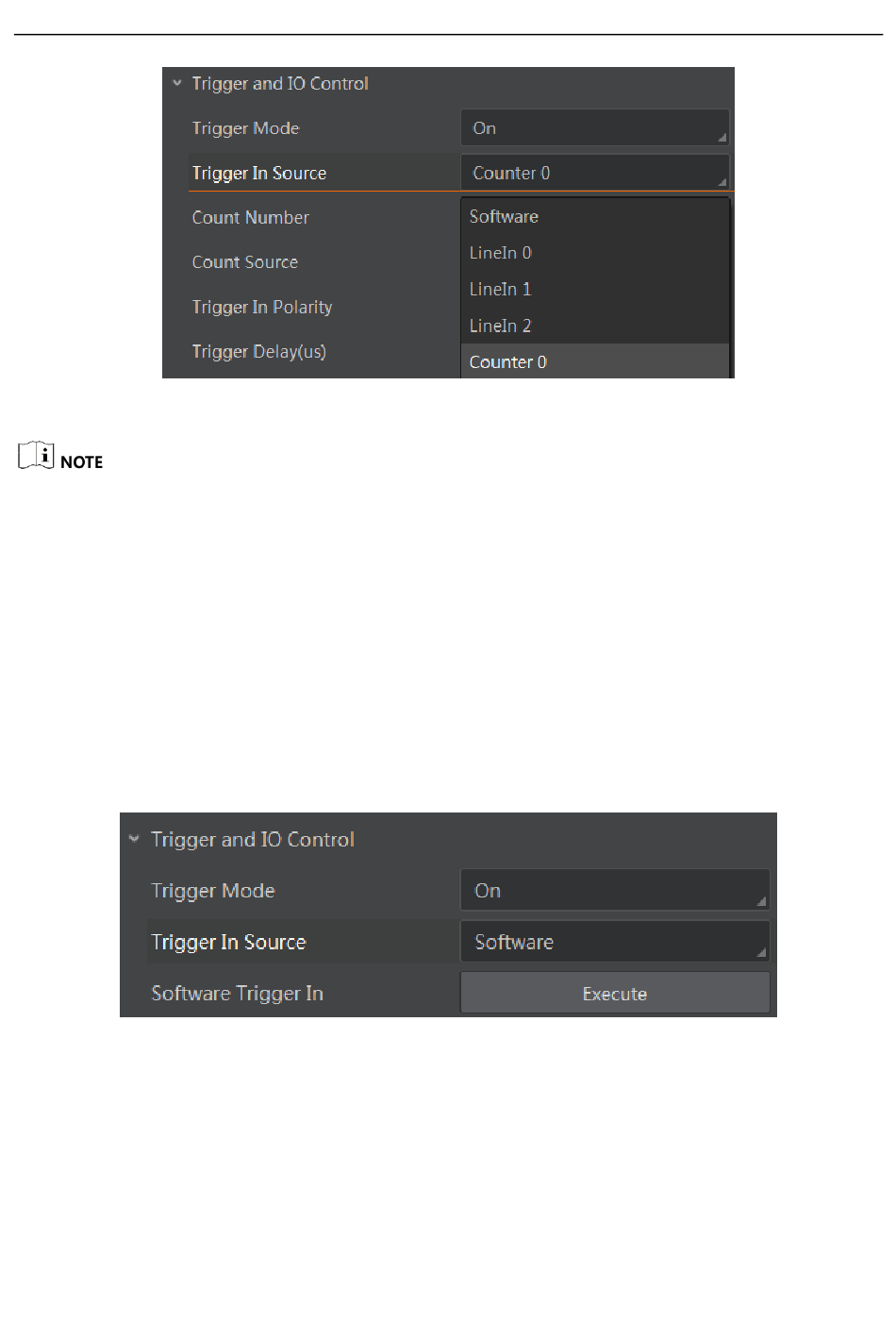

Figure 5-2 Set External Trigger Source
These 3 external trigger sources are valid only when the Trigger Mode is On.

5.3.2 Set Software Trigger

You can set software trigger as shown below.
Steps:
1. Click Trigger and IO Control > Trigger Mode.
2. Select On as Trigger Mode.
3. Select Software as Trigger In Source, and click Execute in Software Trigger In to send trigger
commands.
Figure 5-3 Set Software Trigger

5.3.3 Set Hardware Trigger

You can set hardware trigger as shown below.
Steps:
1. Click Trigger and IO Control > Trigger Mode.
21
