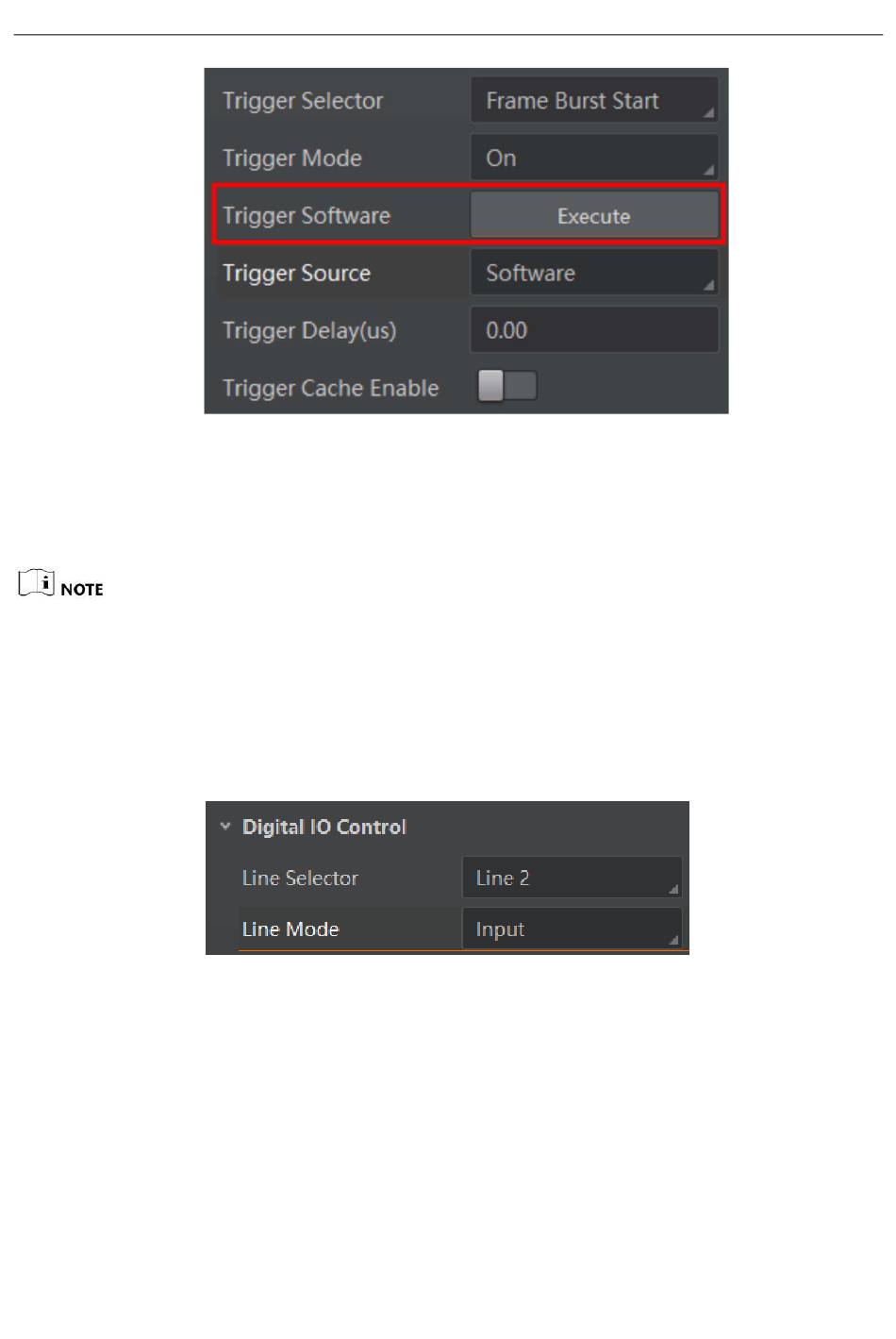

Figure 8-7 Set Software Trigger
8.5.3 Set Hardware Trigger
The camera has two bi-directional I/Os that can be configured to input signal.
Here we take Line 2 as an example to introduce the hardware trigger settings. You select other
bi-directional I/O as trigger source to set hardware trigger according to actual demands.
Steps:
1. Click Digital IO Control.
2. Select Line 2 as Line Selector, and Input as Line Mode to set line 2 as input signal.
Figure 8-8 Set Line 2 as Input Signal
3. Select Line 2 as Trigger Source.
21
