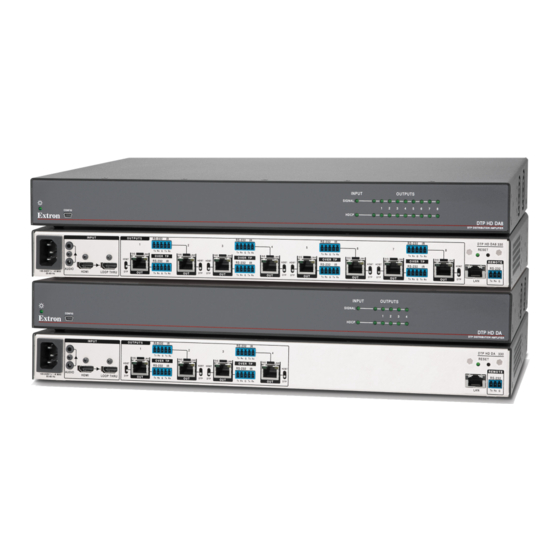

- Page 1 User Guide Video Products DTP HD DA4 4K 230/330 DTP HD DA8 4K 230/330 DTP HDMI Distribution Amplifiers 68-2545-01 Rev. A 02 15...
-
Page 2: Safety Instructions
Safety Instructions Safety Instructions • English Инструкция по технике безопасности • Русский ПРЕДУПРЕЖДЕНИЕ: Данный символ, , если указан WARNING: This symbol, , when used on the product, is intended to alert the user of the presence of uninsulated dangerous voltage within the на... - Page 3 “Extron Safety and Regulatory Compliance Guide” on the Extron website. Copyright © 2015 Extron Electronics. All rights reserved. Trademarks All trademarks mentioned in this guide are the properties of their respective owners. The following registered trademarks ®...
-
Page 4: Conventions Used In This Guide
Conventions Used in this Guide Notifications The following notifications are used in this guide: ATTENTION: • Risk of property damage. • Risque de dommages matériels. NOTE: A note draws attention to important information. TIP: A tip provides a suggestion to make working with the application easier. Software Commands Commands are written in the fonts shown here: ^AR Merge Scene,,Op1 scene 1,1 ^B 51 ^W^C... -
Page 5: Table Of Contents
Symbol Definitions ........12 Error Messages ..........13 EDID ............. 14 DTP HD DA4/DA8 EDID Memory Locations ..15 Command and Response Table for SIS Commands ............. 16 Extron DTP HD DA4 4K 230/330 and DTP HD DA8 4K 230/330 • Contents... -
Page 6: Introduction
Inputs: One HDMI with buffered input loop‑through, one 3.5 mm stereo mini jack for audio with loop‑through Outputs: Four (DTP HD DA4 4K 230/330 models) or eight (DTP HD DA8 4K 230/330 models) DTP twisted pair outputs on RJ‑45 Supports computer video up to 2560x1600, HDTV 1080p/60 Deep Color, and 4K resolutions DTP outputs are compatible with HDBaseT‑enabled devices —... - Page 7 Compatible with all DTP 230 and DTP 330 Series receivers and DTP‑enabled products — Enables mixing and matching with desktop and wallplate receivers, as well as other DTP-enabled products to meet application requirements. Extron DTP HD DA4 4K 230/330 and DTP HD DA8 4K 230/330 • Introduction...
-
Page 8: Application Diagrams
MODEL 80 MODEL 80 MODEL 80 Displays with Speakers DTP HD DA8 4K 230/330 Application Diagram Figure 2. FLAT PANEL FLAT PANEL FLAT PANEL FLAT PANEL Extron DTP HD DA4 4K 230/330 and DTP HD DA8 4K 230/330 • Introduction... -
Page 9: Installation And Operation
Mount the unit using any optional compatible mounting kit listed on the Extron website (www.extron.com), in accordance with the directions included with the kit. For rack mounting, see UL Rack‑Mounting Guidelines on the next page. Extron DTP HD DA4 4K 230/330 and DTP HD DA8 4K 230/330 • Installation and Operation... -
Page 10: Ul Rack-Mounting Guidelines
Output Signal LEDs — Light green when a signal is detected on the HDMI outputs. Output HDCP LEDs — Light green when HDCP presence is detected on the HDMI outputs. Extron DTP HD DA4 4K 230/330 and DTP HD DA8 4K 230/330 • Installation and Operation... -
Page 11: Rear Panel Features
HDBaseT and DTP modes. When configured for HDBaseT, use an HDBaseT-compatible receiver. When configured for DTP, use a DTP-compatible receiver. Extron DTP HD DA4 4K 230/330 and DTP HD DA8 4K 230/330 • Installation and Operation... - Page 12 3-pole, 3.5 mm captive screw connector and configure it as follows: 9600 baud rate, 8 data bits,1 stop bit, no parity (see Wiring for RS‑232 Control on page 10 for more information). Extron DTP HD DA4 4K 230/330 and DTP HD DA8 4K 230/330 • Installation and Operation...
-
Page 13: Connecting The Input Source
Loosely place the included tie wrap around the HDMI connector and the LockIt lacing bracket as shown. While holding the connector securely against the lacing bracket, tighten the tie wrap, then remove any excess length. Extron DTP HD DA4 4K 230/330 and DTP HD DA8 4K 230/330 • Installation and Operation... -
Page 14: Twisted Pair Recommendations For Dtp Communication
• Loosely place cables and limit the use of tie wraps or hook-and-loop fasteners. • Separate twisted pair cables from AC power cables. Extron DTP HD DA4 4K 230/330 and DTP HD DA8 4K 230/330 • Installation and Operation... -
Page 15: Wiring For Rs-232 Control
Tx Rx G DB9 Pin Locations Female Computer DTP HD DA4/DA8 230/330 Figure 4. Wiring the DTP HD DA4 and DA8 Series for RS‑232 Control Extron DTP HD DA4 4K 230/330 and DTP HD DA8 4K 230/330 • Installation and Operation... -
Page 16: Sis Commands
20yy Vx.xx number, and is the catalog part number. 60-xxxx-01 This is followed by a Password prompt if a password has been set. Extron DTP HD DA4 4K 230/330 and DTP HD DA8 4K 230/330 • SIS Commands... -
Page 17: Symbols Used In This Guide
Last character cannot be a hyphen (-) Default is model name followed by last 3 digits of MAC address RS-232 mode 0 = RS-232 pass through 1 = Embedded RS-232 Extron DTP HD DA4 4K 230/330 and DTP HD DA8 4K 230/330 • SIS Commands... - Page 18 Start point for UART ports 1999 = default Video mute 0 = Video mute disabled 1 = Video mute 2 = Video and sync mute Extron DTP HD DA4 4K 230/330 and DTP HD DA8 4K 230/330 • SIS Commands...
-
Page 19: Error Messages
A table showing the factory loaded EDID options is shown on the following page. The EDID memory location is labelled for consistency with the value in the SIS commands. Extron DTP HD DA4 4K 230/330 and DTP HD DA8 4K 230/330 • SIS Commands... -
Page 20: Dtp Hd Da4/Da8 Edid Memory Locations
Extron DTP HD DA4 4K 230/330 and DTP HD DA8 4K 230/330 • SIS Commands... -
Page 21: Command And Response Table For Sis Commands
Query video bit depth for all Video bit depth of outputs 1 to 4 VBITD BitdV • •... (DA4) or 1 to 8 (DA8). outputs Extron DTP HD DA4 4K 230/330 and DTP HD DA8 4K 230/330 • SIS Commands... - Page 22 PC NOTE: can optionally carry a full path name. The EDID file format will be “.bin” carrying 128 or 256 filename bytes of binary data. Extron DTP HD DA4 4K 230/330 and DTP HD DA8 4K 230/330 • SIS Commands...
- Page 23 LrptO Ethernet insertion View Insertion Port Setup View output insert setting View port setting X1)] LRPT View all output insert port OLRPT Verbose: LrptO00* setting Extron DTP HD DA4 4K 230/330 and DTP HD DA8 4K 230/330 • SIS Commands...
- Page 24 Query firmware version with Firmware build with 2 decimals *Q/q x.xx.xxxx build Reset settings (retain IP ZXXX settings) Reset all settings (including ZQQQ IP settings) Extron DTP HD DA4 4K 230/330 and DTP HD DA8 4K 230/330 • SIS Commands...
-
Page 25: Reference Information
Using an RJ-45 cable, connect the device to a LAN via the rear panel LAN connector page (see Enter the device IP address into a Web browser address bar. Extron DTP HD DA4 4K 230/330 and DTP HD DA8 4K 230/330 • Internal Web Pages... -
Page 26: Setting Up The Device With The Internal Web Pages
If necessary, click the Edit button to change the TCP/IP settings. RS-232 This section is non-configurable. Passwords Click the Set button to set up a password for the device. Extron DTP HD DA4 4K 230/330 and DTP HD DA8 4K 230/330 • Internal Web Pages... -
Page 27: Updating The Device Firmware
If Firmware Loader is not already installed on the connected computer, download it as follows: www.extron.com Go to and click the tab. Download On the Download Center screen, click the link on the left sidebar menu. Software Extron DTP HD DA4 4K 230/330 and DTP HD DA8 4K 230/330 • Internal Web Pages... -
Page 28: Loading Firmware To The Da With Firmware Loader
Start > All Programs > Extron Electronics > Firmware Loader > Firmware Loader The Firmware Loader dialog box opens with the Add Device... dialog box in front of Figure 7. Opening Firmware Loader Extron DTP HD DA4 4K 230/330 and DTP HD DA8 4K 230/330 • Internal Web Pages... - Page 29 Progress column shows , and is displayed above the progress bar and in the 100% Completed field. Close the Firmware Loader dialog box. Status Extron DTP HD DA4 4K 230/330 and DTP HD DA8 4K 230/330 • Internal Web Pages...
-
Page 30: Loading Firmware To The Da With Internal Web Pages
In the Device Info section, click the Update button. Click the Browse button and locate and select the desired firmware file, then click Open. Click the Upload button. Extron DTP HD DA4 4K 230/330 and DTP HD DA8 4K 230/330 • Internal Web Pages... -
Page 31: Extron Warranty
Extron Electronics makes no further warranties either expressed or implied with respect to the product and its quality, performance, merchantability, or fitness for any particular use. In no event will Extron Electronics be liable for direct, indirect, or consequential damages resulting from any defect in this product even if Extron Electronics has been advised of such damage.
