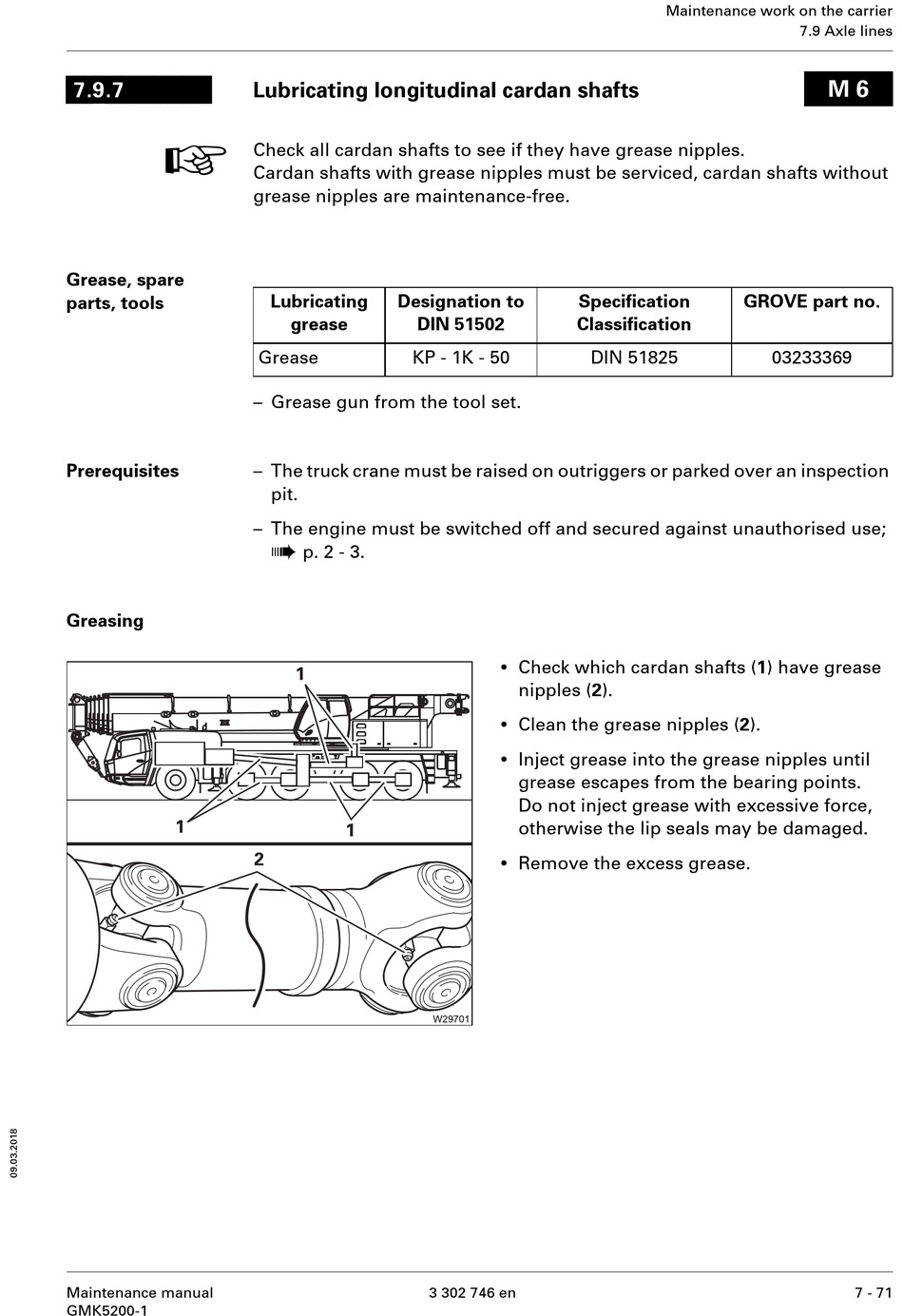

Lubricating Longitudinal Cardan Shafts - Manitowoc Grove GMK 5200-1 Maintenance Manual

7.9.7
H
Grease, spare
parts, tools
Prerequisites
Greasing
Maintenance manual
GMK5200-1

Lubricating longitudinal cardan shafts

Check all cardan shafts to see if they have grease nipples.
Cardan shafts with grease nipples must be serviced, cardan shafts without
grease nipples are maintenance-free.
Lubricating Designation to
grease DIN 51502
Grease KP - 1K - 50
– Grease gun from the tool set.
– The truck crane must be raised on outriggers or parked over an inspection
pit.
– The engine must be switched off and secured against unauthorised use;
à
p. 2 - 3.
Specification
Classification
DIN 51825
•
Check which cardan shafts (1) have grease
nipples (2).
•
Clean the grease nipples (2).
•
Inject grease into the grease nipples until
grease escapes from the bearing points.
Do not inject grease with excessive force,
otherwise the lip seals may be damaged.
•
Remove the excess grease.
3 302 746 en
Maintenance work on the carrier
7.9 Axle lines
M 6
GROVE part no.
03233369
7 - 71
