Front Panel Components

2
1

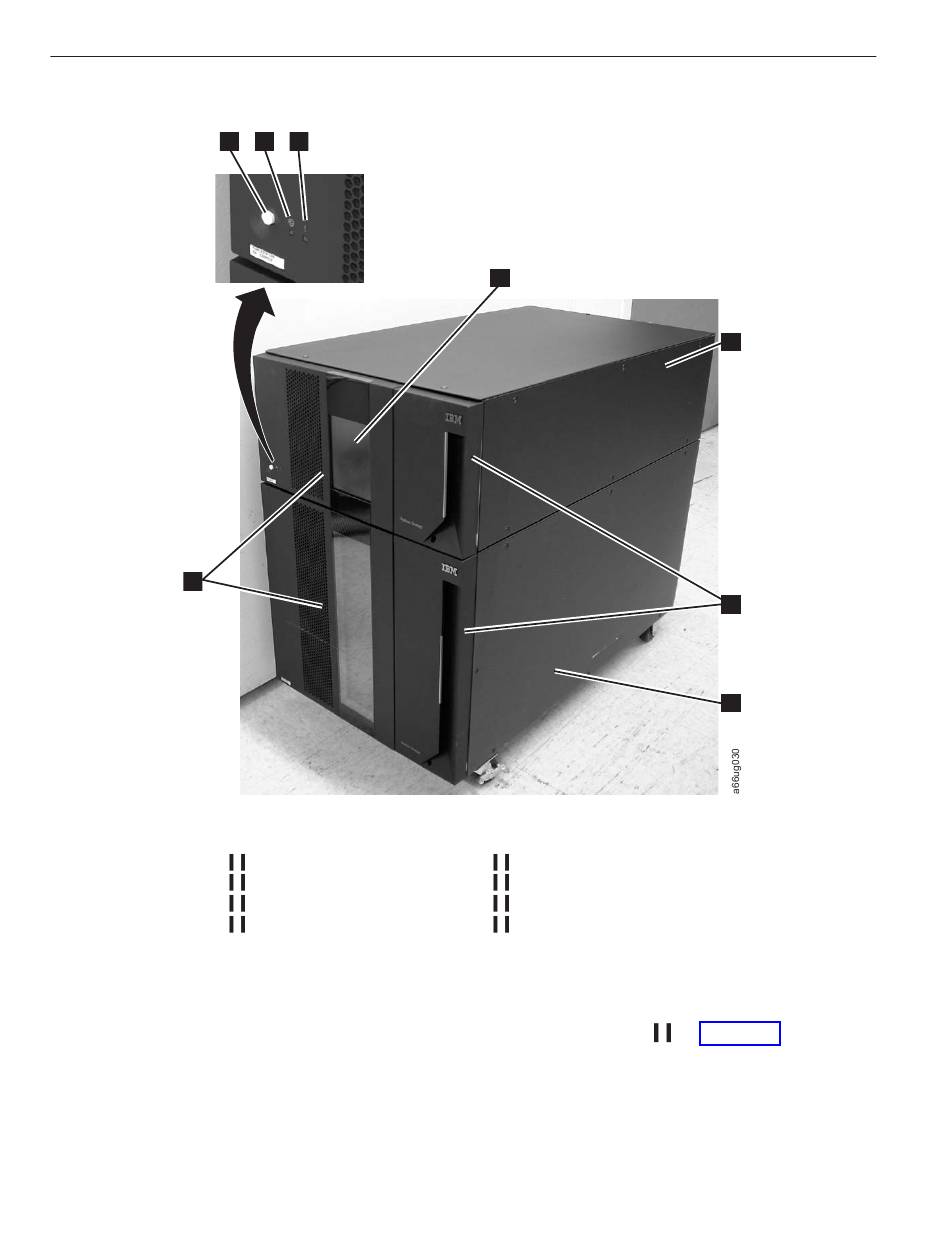

Figure 1-1. Front panel of a 14U library

Control Module (3576 Model L5B)

All library configurations include the control module ( 6 in Figure 1-1). The
control module contains the robotics, library control blade (LCB), and touch screen
display. The control module also contains an I/O station, fixed storage slots, tape
drives, and at least one power supply.
The control module can contain one or two tape drives and one or two power
supplies. At least one power supply is always required.
1-2
TS3310 Tape Library Setup and Operator Guide
4
3
1
Access doors
2
Power button
3
Green power ON LED
4
Amber Operator
Intervention Alert LED
5
5
Operator Panel
6
5U control module
7
I/O Stations
8
9U expansion module
6
7
8
