Installing Library Foot Pads

|
|
|
|
|
|
|

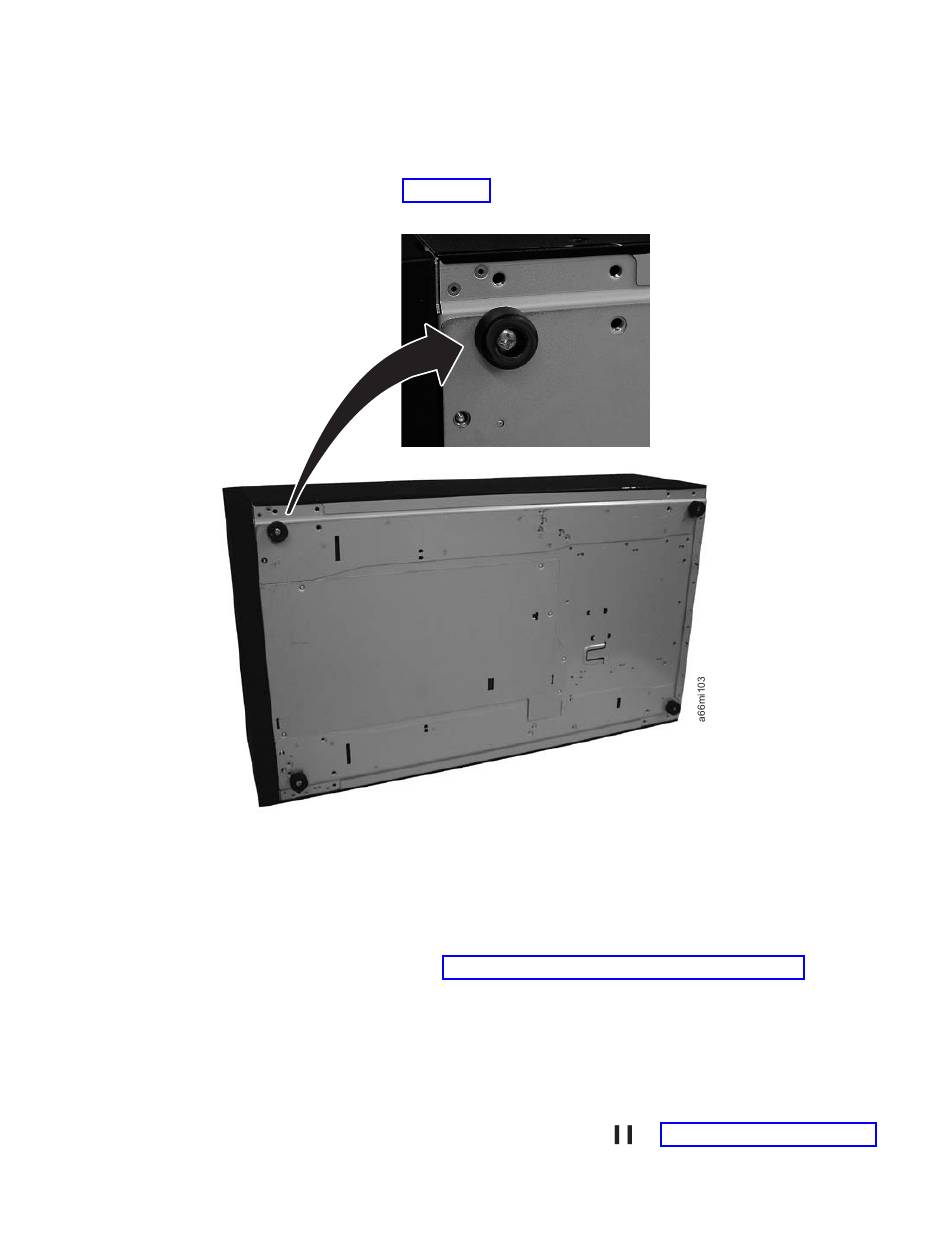

Figure 4-11. Foot pad Locations
|
|
|
|
|
Transferring the Top Cover from the Control Module to an
|
Expansion Module
|
|
|
|
|
|
4-12
TS3310 Tape Library Setup and Operator Guide
For a desktop installation, foot pads must be installed on the bottom module of
your library. To install the library foot pads:
1. Being very careful, lay the module on its side.
2. Using a #2 Phillips screwdriver, install the foot pads on the bottom of the
library chassis. See Figure 4-11 for foot pad locations.
3. Carefully return the library to an upright position.
4. Use the lifting sling to place the library module in the desktop location.
5. When you finish these desktop installation steps, store the installation sling in a
secure location for possible future use. Then continue the library installation
with the instructions on "Enabling the Picker Assembly" on page 3-28.
Each library comes with a top cover that is shipped with the Control Module. If
you are installing an Expansion Module as the top module in a library, you must
move the top cover from the Control Module to the top Expansion Module.
1. Engage the picker assembly lock mechanism ( 1 in Figure 4-12 on page 4-13).
