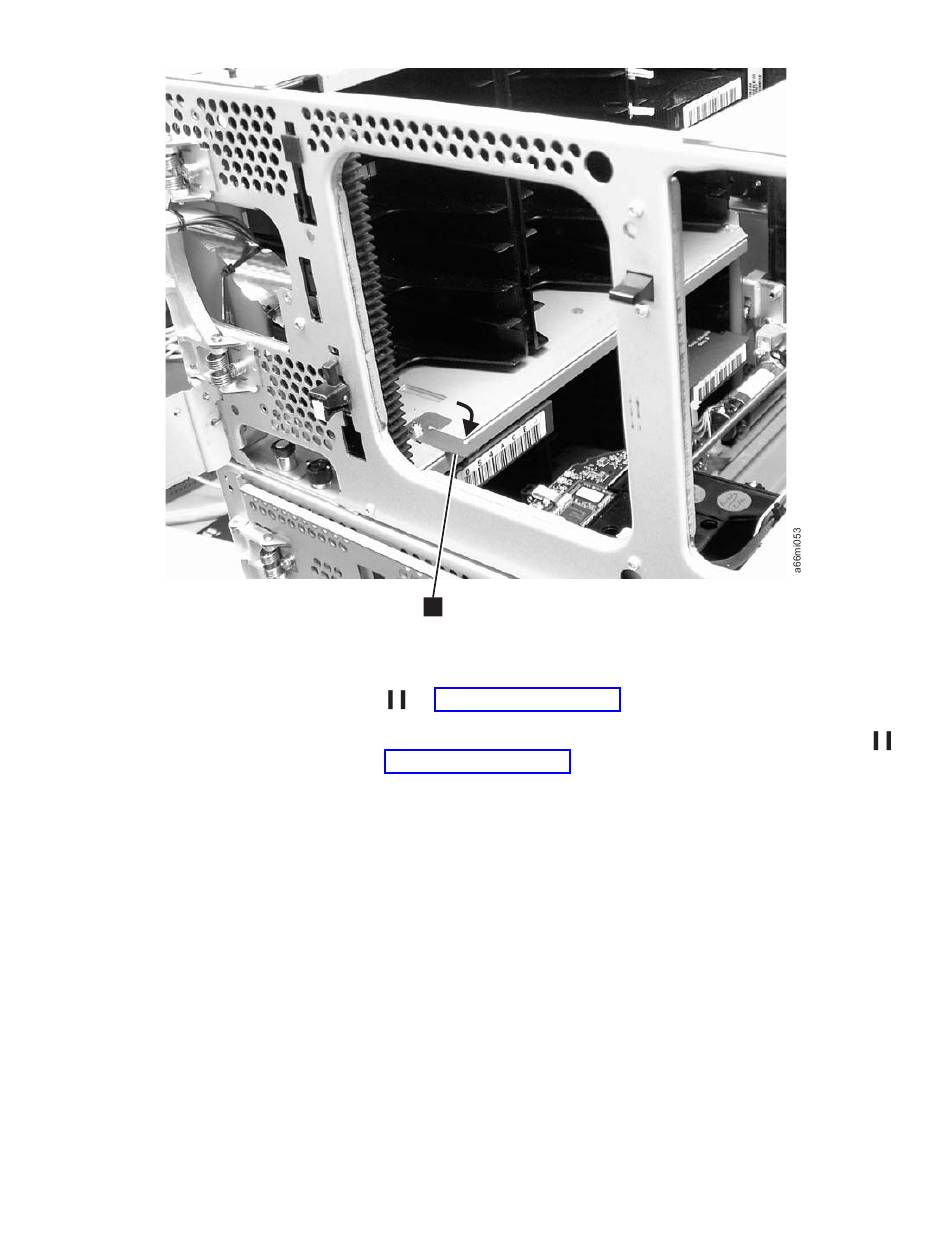

Figure 4-7. Picker locking mechanism
|
|
|
|
|
|
|
2. Turn the 5U control module on its side and remove the 5 - T10 Torx bottom
cover screws ( 1 in Figure 4-8 on page 4-10).
Important: DO NOT loosen or remove the screw holding the home sensor ( 2
in Figure 4-8 on page 4-10). This screw has the same T10 Torx head
as the cover screws, but it is longer and has a coarse thread for
screwing into the plastic home sensor.
