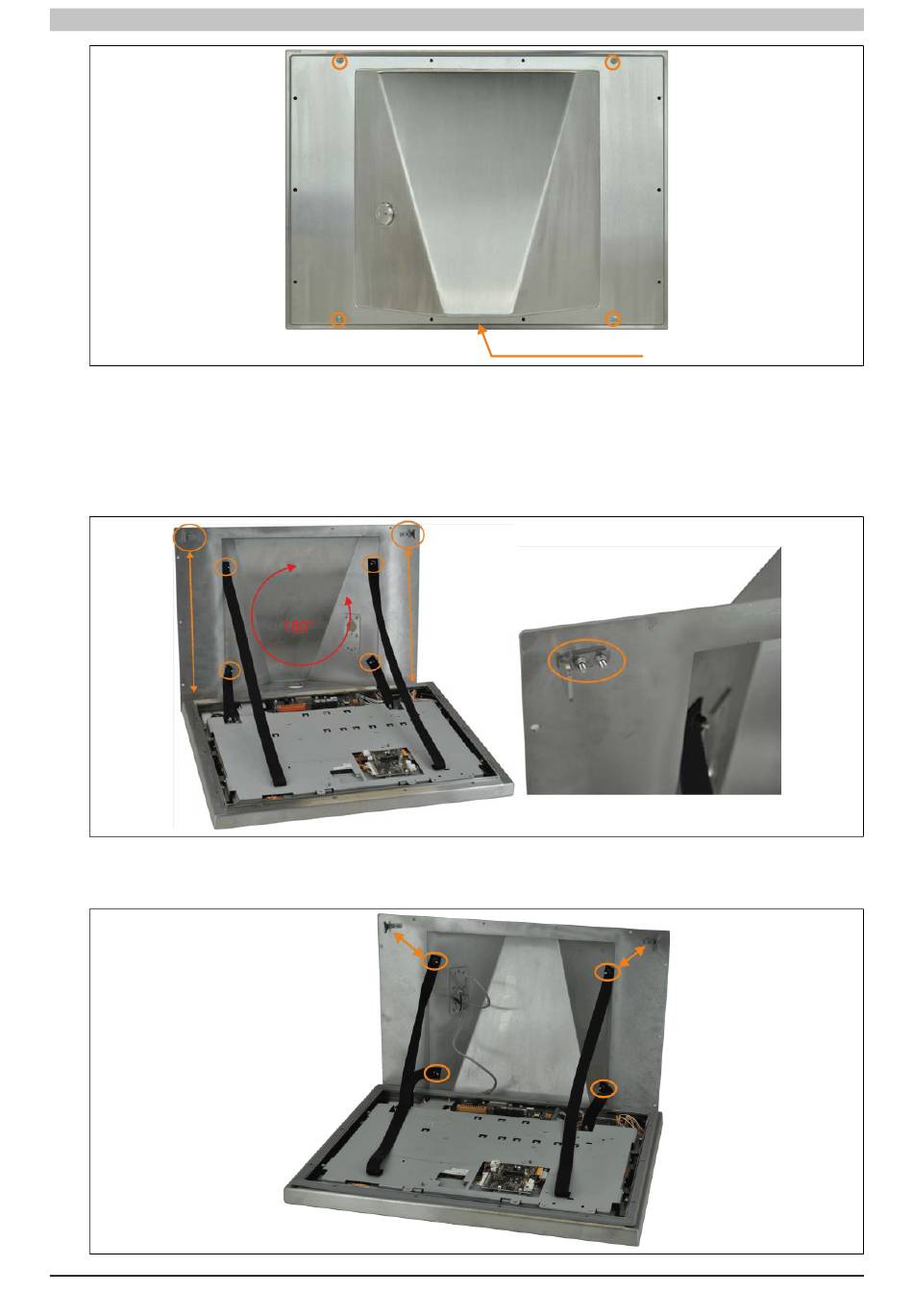

2. Remove the holding hooks and retaining straps and rotate the housing cover 180°.
3. After rotating that housing cover, attach it to the swing arm.
4. Install the retaining straps and holding books back on the housing cover (the holding hooks can also be
installed before installation on the swing arm). The holding hooks must be installed with the tab outward and
on the same side to which the long retaining straps are attached.
5. The holding hooks are attached with two M3 self-locking nuts (max. torque: 0.55 Nm).
6. The long retaining straps are always installed on the top; the short retaining straps are always installed on the
bottom. It it important to ensure that the retaining straps protrude inwards (into the depression of the housing)
in order not to be pinched.
Automation Panel 9xD - Hygienic design User's manual V 1.80
Swing arm connection
Installation and wiring
99
