B&R VICPAS C70 Series User Manual

Power panel
Hide thumbs Also See for VICPAS C70 Series:
Table of Contents

Advertisement

Quick Links

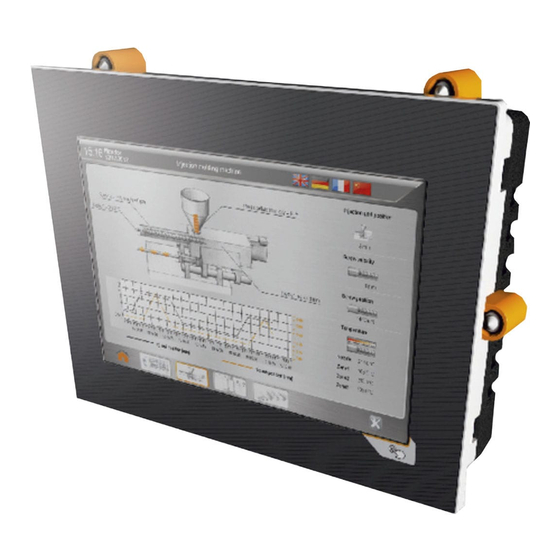

Power Panel C70
User's manual
Version: 1.30 (February 2019)
Model no.: MAPPC70-ENG
Translation of the original documentation
All values in this manual are current as of its creation. We reserve the right to change the contents of this manual
without notice. B&R Industrial Automation GmbH is not liable for technical or editorial errors and defects in this
manual. In addition, B&R Industrial Automation GmbH assumes no liability for damages that are directly or indirectly
attributable to the delivery, performance or use of this material. We point out that the software and hardware
designations and brand names of the respective companies used in this document are subject to general trademark,
brand or patent protection.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VICPAS C70 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for B&R VICPAS C70 Series

Summary of Contents for B&R VICPAS C70 Series

  • Page 1 Power Panel C70 User's manual Version: 1.30 (February 2019) Model no.: MAPPC70-ENG Translation of the original documentation All values in this manual are current as of its creation. We reserve the right to change the contents of this manual without notice. B&R Industrial Automation GmbH is not liable for technical or editorial errors and defects in this manual.
  • Page 2 1393929349551:1.30:2019/02/14...

  • Page 3: Table Of Contents

    Table of contents 1 General information....................5 1.1 Manual history..............................5 1.2 Safety notices..............................6 1.2.1 Introduction..............................6 1.2.2 Intended use..............................6 1.2.3 Protection against electrostatic discharge....................6 1.2.4 Regulations and measures........................7 1.2.5 Transport and storage..........................7 1.2.6 Installation..............................7 1.2.7 Operation..............................8 1.2.8 Environmentally friendly disposal......................8 1.2.9 Organization of notices..........................9 1.2.10 Safety-relevant symbols..........................
  • Page 4 Table of contents 3.6.5 USB interfaces............................79 3.6.6 X2X Link interface........................... 79 3.6.7 Fieldbus interfaces..........................80 3.6.8 Power supply............................81 4 Commissioning......................82 4.1 Installation..............................82 4.1.1 Installation cutout requirements......................83 4.1.2 Mounting with retaining clips........................83 4.1.3 Installation instructions..........................84 4.1.4 Mounting orientations..........................85 4.1.5 Grounding..............................

  • Page 5: General Information

    General information 1 General information Information: B&R makes every effort to keep user's manuals as current as possible. The most current versions can be downloaded from the B&R website www.br-automation.com. 1.1 Manual history Version Date Comment 1.30 February 2019 Content changes: •...

  • Page 6: Safety Notices

    General information 1.2 Safety notices Important! If the device is not used in accordance with the manufacturer's instructions, the protection provided by the device may be impaired. 1.2.1 Introduction Programmable logic controllers (PLCs), operating and monitoring devices (such as industrial PCs, Power Panels, Mobile Panels, etc.) as well as the uninterruptible power supply from B&R have been designed, developed and manufactured for normal use in industry.

  • Page 7: Regulations And Measures

    General information Electrical assemblies without housing The following applies in addition to "Electrical assemblies with housing": • All persons handling electrical assemblies and devices in which electrical assemblies are installed must be grounded. • Assemblies are only permitted to touched on the narrow sides or front plate. •...

  • Page 8: Operation

    General information 1.2.7 Operation 1.2.7.1 Protection against contact with electrical parts In order to operate programmable logic controllers, operating and monitoring devices and the uninterruptible power supply, it is necessary for certain components to carry dangerous voltages over 42 VDC. Touching one of these components can result in a life-threatening electric shock.

  • Page 9: Organization Of Notices

    General information 1.2.9 Organization of notices Safety notices Contain only information that warns of dangerous functions or situations. Signal word Description Danger! Failure to observe these safety guidelines and notices will result in death, severe injury or substantial damage to property. Warning! Failure to observe these safety guidelines and notices can result in death, severe injury or substantial damage to property.

  • Page 10: System Characteristics

    System characteristics 2 System characteristics The Power Panel C70 is available with 3 different display sizes ranging from 5.7" to 10.1". In addition to POWER- LINK, Ethernet, USB and X2X Link, variants with other interfaces are possible (CAN, RS232 or RS485). 2.1 Compact solution With an extremely compact design, minimal installation depth and intelligent cable outlet arrangement, Power Panels are extreme space-savers that are very easy to install.

  • Page 11: Powerful

    System characteristics 2.3 Powerful The Power Panel C70 is an HMI terminal with a built-in PLC. The Intel Atom processor provides enough perfor- mance to allow applications to achieve cycle times down to 0.4 ms. Automation Runtime, which provides up to eight task classes, is the basis for this.

  • Page 12: Model Number Key

    System characteristics 2.5 Model number key Product area Embedded PC-based automation Product family Power Panel Model Controller series Variant (processor power) Intel processor (Atom, single core) Diagonal 5.7" 7.0" 10.1" Resolution WVGA (800 x 480) landscape VGA (640 x 480) landscape WSVGA (1024 x 600) landscape VGA (480 x 640) portrait WVGA (480 x 800) portrait...

  • Page 13: Device Description

    Device description • Type overview 3 Device description 3.1 Type overview Panel size 5.7" 7.0" 10.1" Model number 4PPC70.057x-2xx 4PPC70.070x-2xx 4PPC70.101x-2xx Format / Resolution Landscape Portrait WVGA WSVGA WVGA WSVGA Resolution 640 x 480 800 x 480 1024 x 600 480 x 640 480 x 800 600 x 1024...

  • Page 14: Comparison Of Power Panel C70 Variants

    Device description • Type overview 3.1.1 Comparison of Power Panel C70 variants Format / Panel overlay Landscape Portrait Aluminum white Anthracite Aluminum white Anthracite Power Panel C70 User's manual V1.30...

  • Page 15: General Technical Data

    Device description • General technical data 3.2 General technical data Name Description Processor Intel processor with 333 MHz (Atom, single core) Memory 256 MB DDRAM All types of interfaces All Power Panel C70 variants are equipped with the following interfaces: •...

  • Page 16: Data And Real-Time Clock Buffering

    Device description • General technical data 3.2.3 Data and real-time clock buffering Power Panels are not designed for use with batteries. This makes them completely maintenance-free. The following features make operation without a backup battery possible. Data and real-time clock buffering Type of buffering Note Remanent variables...

  • Page 17: Surface Resistance Of The Panel Overlay

    Device description • General technical data 3.2.5 Surface resistance of the panel overlay The panel overlay conforms to DIN 42115 (Part 2). This means it is resistant to exposure to the following chemicals for a 24-hour period with no visible signs of damage: Ethanol Formaldehyde 37%-42% Trichloroethane...

  • Page 18: Power Panel C70 - 5.7" Display

    Device description • Power Panel C70 - 5.7" display • Variants without fieldbus interfaces 3.3 Power Panel C70 - 5.7" display 3.3.1 Variants without fieldbus interfaces 3.3.1.1 Order data Model number Short description Power Panel C70 4PPC70.0573-20W Power Panel C70, 5.7", landscape format. CPU and memory: Intel Atom 333 MHz (compatible), 256 MB DDRAM, 32 kB FRAM, 2 GB onboard flash drive.
  • Page 19 Device description • Power Panel C70 - 5.7" display • Variants without fieldbus interfaces 3.3.1.3 Technical data Model number 4PPC70.0573-20W 4PPC70.0573-20B 4PPC70.057L-20W 4PPC70.057L-20B General information Cooling Fanless B&R ID code 0xE55D 0xE4B2 0xE561 0xE565 System requirements Automation Studio 4.1.4.375 and later Automation Runtime K4.08 and later Support of X20SLX modules...
  • Page 20 Device description • Power Panel C70 - 5.7" display Model number 4PPC70.0573-20W 4PPC70.0573-20B 4PPC70.057L-20W 4PPC70.057L-20B Interfaces Interface IF1 Fieldbus POWERLINK V2 managing or controlled node Type Type 4 Variant 1x RJ45 shielded Line length Max. 100 m between 2 nodes (segment length) Max.

  • Page 21: Variants With 2X Can Bus

    Device description • Power Panel C70 - 5.7" display • Variants with 2x CAN bus 3.3.2 Variants with 2x CAN bus 3.3.2.1 Order data Model number Short description Power Panel C70 4PPC70.0573-21W Power Panel C70, 5.7", landscape format, fieldbus interfaces: 2x CAN bus. CPU and memory: Intel Atom 333 MHz (compatible), 256 MB DDRAM, 32 kB FRAM, 2 GB onboard flash drive.
  • Page 22 Device description • Power Panel C70 - 5.7" display • Variants with 2x CAN bus 3.3.2.3 Technical data Model number 4PPC70.0573-21W 4PPC70.0573-21B 4PPC70.057L-21W 4PPC70.057L-21B General information Cooling Fanless B&R ID code 0xE55E 0xE4B3 0xE562 0xE566 System requirements Automation Studio 4.1.4.375 and later Automation Runtime K4.08 and later Support of X20SLX modules...
  • Page 23 Device description • Power Panel C70 - 5.7" display Model number 4PPC70.0573-21W 4PPC70.0573-21B 4PPC70.057L-21W 4PPC70.057L-21B Interfaces Interface IF1 Fieldbus POWERLINK V2 managing or controlled node Type Type 4 Variant 1x RJ45 shielded Line length Max. 100 m between 2 nodes (segment length) Max.
  • Page 24 Device description • Power Panel C70 - 5.7" display Model number 4PPC70.0573-21W 4PPC70.0573-21B 4PPC70.057L-21W 4PPC70.057L-21B Ambient conditions Temperature Operation 0 to 50°C Storage -20 to 70°C Transport -20 to 70°C Relative humidity See temperature/humidity diagram. Mechanical properties Note Order terminal blocks 1x 0TB5104.2110-01, 1x 0TB5106.2110-01, 1x 0TB6102.2010-01 and 1x 0TB6102.2110-01 separately Front Design...

  • Page 25: Variants With 1X Can Bus And 1X Rs232

    Device description • Power Panel C70 - 5.7" display • Variants with 1x CAN bus and 1x RS232 3.3.3 Variants with 1x CAN bus and 1x RS232 3.3.3.1 Order data Model number Short description Power Panel C70 4PPC70.0573-22W Power Panel C70, 5.7", landscape format, fieldbus interfaces: 1x CAN bus, 1x RS232. CPU and memory: Intel Atom 333 MHz (compatible), 256 MB DDRAM, 32 kB FRAM, 2 GB onboard flash drive.
  • Page 26 Device description • Power Panel C70 - 5.7" display • Variants with 1x CAN bus and 1x RS232 3.3.3.3 Technical data Model number 4PPC70.0573-22W 4PPC70.0573-22B 4PPC70.057L-22W 4PPC70.057L-22B General information Cooling Fanless B&R ID code 0xE55F 0xE4B4 0xE563 0xE567 System requirements Automation Studio 4.1.4.375 and later Automation Runtime...
  • Page 27 Device description • Power Panel C70 - 5.7" display Model number 4PPC70.0573-22W 4PPC70.0573-22B 4PPC70.057L-22W 4PPC70.057L-22B Interfaces Interface IF1 Fieldbus POWERLINK V2 managing or controlled node Type Type 4 Variant 1x RJ45 shielded Line length Max. 100 m between 2 nodes (segment length) Max.
  • Page 28 Device description • Power Panel C70 - 5.7" display Model number 4PPC70.0573-22W 4PPC70.0573-22B 4PPC70.057L-22W 4PPC70.057L-22B Mechanical properties Note Order terminal blocks 1x 0TB5104.2110-01, 1x 0TB5106.2110-01, 1x 0TB6102.2010-01 and 1x 0TB6102.2110-01 separately Front Design Aluminum white pinstripe Anthracite gray pinstripe Aluminum white pinstripe Anthracite gray pinstripe Dimensions Width...

  • Page 29: Variants With 1X Can Bus And 1X Rs485

    Device description • Power Panel C70 - 5.7" display • Variants with 1x CAN bus and 1x RS485 3.3.4 Variants with 1x CAN bus and 1x RS485 3.3.4.1 Order data Model number Short description Power Panel C70 4PPC70.0573-23W Power Panel C70, 5.7", landscape format, fieldbus interfaces: 1x CAN bus, 1x RS485. CPU and memory: Intel Atom 333 MHz (compatible), 256 MB DDRAM, 32 kB FRAM, 2 GB onboard flash drive.
  • Page 30 Device description • Power Panel C70 - 5.7" display • Variants with 1x CAN bus and 1x RS485 3.3.4.3 Technical data Model number 4PPC70.0573-23W 4PPC70.0573-23B 4PPC70.057L-23W 4PPC70.057L-23B General information Cooling Fanless B&R ID code 0xE560 0xE4B5 0xE564 0xE568 System requirements Automation Studio 4.1.4.375 and later Automation Runtime...
  • Page 31 Device description • Power Panel C70 - 5.7" display Model number 4PPC70.0573-23W 4PPC70.0573-23B 4PPC70.057L-23W 4PPC70.057L-23B Interfaces Interface IF1 Fieldbus POWERLINK V2 managing or controlled node Type Type 4 Variant 1x RJ45 shielded Line length Max. 100 m between 2 nodes (segment length) Max.
  • Page 32 Device description • Power Panel C70 - 5.7" display Model number 4PPC70.0573-23W 4PPC70.0573-23B 4PPC70.057L-23W 4PPC70.057L-23B Mechanical properties Note Order terminal blocks 1x 0TB5104.2110-01, 1x 0TB5106.2110-01, 1x 0TB6102.2010-01 and 1x 0TB6102.2110-01 separately Front Design Aluminum white pinstripe Anthracite gray pinstripe Aluminum white pinstripe Anthracite gray pinstripe Dimensions Width...

  • Page 33: Temperature/Humidity Diagram

    Device description • Power Panel C70 - 5.7" display • Temperature/Humidity diagram 3.3.5 Temperature/Humidity diagram Operation Operation Storage Storage Transport Transport Temperature [°C] Figure: Power Panel C70 - 5.7" display - Temperature/Humidity diagram Power Panel C70 User's manual V1.30...

  • Page 34: Dimensions

    Device description • Power Panel C70 - 5.7" display • Dimensions 3.3.6 Dimensions Landscape format for 5.7" variants 145.7 26.3 13.8 12.5 45.82 159.8 112.9 Dimensions of the installation cutout for this Power Panel variant: 161.8 ±1 mm x 129.9 ±1 mm See also "Installation cutout requirements"...

  • Page 35: Power Panel C70 - 7.0" Display

    Device description • Power Panel C70 - 7.0" display • Variants without fieldbus interfaces 3.4 Power Panel C70 - 7.0" display 3.4.1 Variants without fieldbus interfaces 3.4.1.1 Order data Model number Short description Power Panel C70 4PPC70.0702-20W Power Panel C70, 7.0", landscape format. CPU and memory: Intel Atom 333 MHz (compatible), 256 MB DDRAM, 32 kB FRAM, 2 GB onboard flash drive.
  • Page 36 Device description • Power Panel C70 - 7.0" display • Variants without fieldbus interfaces 3.4.1.3 Technical data Model number 4PPC70.0702-20W 4PPC70.0702-20B 4PPC70.070M-20W 4PPC70.070M-20B General information Cooling Fanless B&R ID code 0xE569 0xE56D 0xE571 0xE575 System requirements Automation Studio 4.1.4.375 and later Automation Runtime K4.08 and later Support of X20SLX modules...
  • Page 37 Device description • Power Panel C70 - 7.0" display Model number 4PPC70.0702-20W 4PPC70.0702-20B 4PPC70.070M-20W 4PPC70.070M-20B Interfaces Interface IF1 Fieldbus POWERLINK V2 managing or controlled node Type Type 4 Variant 1x RJ45 shielded Line length Max. 100 m between 2 nodes (segment length) Max.

  • Page 38: Variants With 2X Can Bus

    Device description • Power Panel C70 - 7.0" display • Variants with 2x CAN bus 3.4.2 Variants with 2x CAN bus 3.4.2.1 Order data Model number Short description Power Panel C70 4PPC70.0702-21W Power Panel C70, 7.0", landscape format, fieldbus interfaces: 2x CAN bus. CPU and memory: Intel Atom 333 MHz (compatible), 256 MB DDRAM, 32 kB FRAM, 2 GB onboard flash drive.
  • Page 39 Device description • Power Panel C70 - 7.0" display • Variants with 2x CAN bus 3.4.2.3 Technical data Model number 4PPC70.0702-21W 4PPC70.0702-21B 4PPC70.070M-21W 4PPC70.070M-21B General information Cooling Fanless B&R ID code 0xE56A 0xE56E 0xE572 0xE576 System requirements Automation Studio 4.1.4.375 and later Automation Runtime K4.08 and later Support of X20SLX modules...
  • Page 40 Device description • Power Panel C70 - 7.0" display Model number 4PPC70.0702-21W 4PPC70.0702-21B 4PPC70.070M-21W 4PPC70.070M-21B Interfaces Interface IF1 Fieldbus POWERLINK V2 managing or controlled node Type Type 4 Variant 1x RJ45 shielded Line length Max. 100 m between 2 nodes (segment length) Max.
  • Page 41 Device description • Power Panel C70 - 7.0" display Model number 4PPC70.0702-21W 4PPC70.0702-21B 4PPC70.070M-21W 4PPC70.070M-21B Ambient conditions Temperature Operation 0 to 50°C Storage -20 to 70°C Transport -20 to 70°C Relative humidity See temperature/humidity diagram. Mechanical properties Note Order terminal blocks 1x 0TB5104.2110-01, 1x 0TB5106.2110-01, 1x 0TB6102.2010-01 and 1x 0TB6102.2110-01 separately Front Design...

  • Page 42: Variants With 1X Can Bus And 1X Rs232

    Device description • Power Panel C70 - 7.0" display • Variants with 1x CAN bus and 1x RS232 3.4.3 Variants with 1x CAN bus and 1x RS232 3.4.3.1 Order data Model number Short description Power Panel C70 4PPC70.0702-22W Power Panel C70, 7.0", landscape format, fieldbus interfaces: 1x CAN bus, 1x RS232. CPU and memory: Intel Atom 333 MHz (compatible), 256 MB DDRAM, 32 kB FRAM, 2 GB onboard flash drive.
  • Page 43 Device description • Power Panel C70 - 7.0" display • Variants with 1x CAN bus and 1x RS232 3.4.3.3 Technical data Model number 4PPC70.0702-22W 4PPC70.0702-22B 4PPC70.070M-22W 4PPC70.070M-22B General information Cooling Fanless B&R ID code 0xE56B 0xE56F 0xE573 0xE577 System requirements Automation Studio 4.1.4.375 and later Automation Runtime...
  • Page 44 Device description • Power Panel C70 - 7.0" display Model number 4PPC70.0702-22W 4PPC70.0702-22B 4PPC70.070M-22W 4PPC70.070M-22B Interfaces Interface IF1 Fieldbus POWERLINK V2 managing or controlled node Type Type 4 Variant 1x RJ45 shielded Line length Max. 100 m between 2 nodes (segment length) Max.
  • Page 45 Device description • Power Panel C70 - 7.0" display Model number 4PPC70.0702-22W 4PPC70.0702-22B 4PPC70.070M-22W 4PPC70.070M-22B Mechanical properties Note Order terminal blocks 1x 0TB5104.2110-01, 1x 0TB5106.2110-01, 1x 0TB6102.2010-01 and 1x 0TB6102.2110-01 separately Front Design Aluminum white pinstripe Anthracite gray pinstripe Aluminum white pinstripe Anthracite gray pinstripe Dimensions Width...

  • Page 46: Variants With 1X Can Bus And 1X Rs485

    Device description • Power Panel C70 - 7.0" display • Variants with 1x CAN bus and 1x RS485 3.4.4 Variants with 1x CAN bus and 1x RS485 3.4.4.1 Order data Model number Short description Power Panel C70 4PPC70.0702-23W Power Panel C70, 7.0", landscape format, fieldbus interfaces: 1x CAN bus, 1x RS485. CPU and memory: Intel Atom 333 MHz (compatible), 256 MB DDRAM, 32 kB FRAM, 2 GB onboard flash drive.
  • Page 47 Device description • Power Panel C70 - 7.0" display • Variants with 1x CAN bus and 1x RS485 3.4.4.3 Technical data Model number 4PPC70.0702-23W 4PPC70.0702-23B 4PPC70.070M-23W 4PPC70.070M-23B General information Cooling Fanless B&R ID code 0xE56C 0xE570 0xE574 0xE578 System requirements Automation Studio 4.1.4.375 and later Automation Runtime...
  • Page 48 Device description • Power Panel C70 - 7.0" display Model number 4PPC70.0702-23W 4PPC70.0702-23B 4PPC70.070M-23W 4PPC70.070M-23B Interfaces Interface IF1 Fieldbus POWERLINK V2 managing or controlled node Type Type 4 Variant 1x RJ45 shielded Line length Max. 100 m between 2 nodes (segment length) Max.
  • Page 49 Device description • Power Panel C70 - 7.0" display Model number 4PPC70.0702-23W 4PPC70.0702-23B 4PPC70.070M-23W 4PPC70.070M-23B Mechanical properties Note Order terminal blocks 1x 0TB5104.2110-01, 1x 0TB5106.2110-01, 1x 0TB6102.2010-01 and 1x 0TB6102.2110-01 separately Front Design Aluminum white pinstripe Anthracite gray pinstripe Aluminum white pinstripe Anthracite gray pinstripe Dimensions Width...

  • Page 50: Temperature/Humidity Diagram

    Device description • Power Panel C70 - 7.0" display • Temperature/Humidity diagram 3.4.5 Temperature/Humidity diagram Operation Operation Storage Storage Transport Transport Temperature [°C] Figure: Power Panel C70 - 7.0" display - Temperature/Humidity diagram Power Panel C70 User's manual V1.30...

  • Page 51: Dimensions

    Device description • Power Panel C70 - 7.0" display • Dimensions 3.4.6 Dimensions Landscape format for 7.0" variants 13.8 View A 45.82 184.8 112.9 26.3 1.13 View A 12.5 170.7 Dimensions of the installation cutout for this Power Panel variant: 186.8 ±1 mm x 129.9 ±1 mm See also "Installation cutout requirements"...
  • Page 52 Device description • Power Panel C70 - 7.0" display • Dimensions Portrait format for 7.0" variants 127.9 27.8 Dimensions of the installation cutout for this Power Panel variant: 129.9 ±1 mm x 186.8 ±1 mm See also "Installation cutout requirements" on page Power Panel C70 User's manual V1.30...

  • Page 53: Power Panel C70 - 10.1" Display

    Device description • Power Panel C70 - 10.1" display • Variants without fieldbus interfaces 3.5 Power Panel C70 - 10.1" display 3.5.1 Variants without fieldbus interfaces 3.5.1.1 Order data Model number Short description Power Panel C70 4PPC70.101G-20W Power Panel C70, 10.1", landscape format. CPU and memory: Intel Atom 333 MHz (compatible), 256 MB DDRAM, 32 kB FRAM, 2 GB onboard flash drive.
  • Page 54 Device description • Power Panel C70 - 10.1" display • Variants without fieldbus interfaces 3.5.1.3 Technical data Model number 4PPC70.101G-20W 4PPC70.101G-20B 4PPC70.101N-20W 4PPC70.101N-20B General information Cooling Fanless B&R ID code 0xE579 0xE57D 0xE581 0xE585 System requirements Automation Studio 4.1.4.375 and later Automation Runtime K4.08 and later Support of X20SLX modules...
  • Page 55 Device description • Power Panel C70 - 10.1" display Model number 4PPC70.101G-20W 4PPC70.101G-20B 4PPC70.101N-20W 4PPC70.101N-20B Interfaces Interface IF1 Fieldbus POWERLINK V2 managing or controlled node Type Type 4 Variant 1x RJ45 shielded Line length Max. 100 m between 2 nodes (segment length) Max.

  • Page 56: Variants With 2X Can Bus

    Device description • Power Panel C70 - 10.1" display • Variants with 2x CAN bus 3.5.2 Variants with 2x CAN bus 3.5.2.1 Order data Model number Short description Power Panel C70 4PPC70.101G-21W Power Panel C70, 10.1", landscape format, fieldbus interfaces: 2x CAN bus. CPU and memory: Intel Atom 333 MHz (compatible), 256 MB DDRAM, 32 kB FRAM, 2 GB onboard flash drive.
  • Page 57 Device description • Power Panel C70 - 10.1" display • Variants with 2x CAN bus 3.5.2.3 Technical data Model number 4PPC70.101G-21W 4PPC70.101G-21B 4PPC70.101N-21W 4PPC70.101N-21B General information Cooling Fanless B&R ID code 0xE57A 0xE57E 0xE582 0xE586 System requirements Automation Studio 4.1.4.375 and later Automation Runtime K4.08 and later Support of X20SLX modules...
  • Page 58 Device description • Power Panel C70 - 10.1" display Model number 4PPC70.101G-21W 4PPC70.101G-21B 4PPC70.101N-21W 4PPC70.101N-21B Interfaces Interface IF1 Fieldbus POWERLINK V2 managing or controlled node Type Type 4 Variant 1x RJ45 shielded Line length Max. 100 m between 2 nodes (segment length) Max.
  • Page 59 Device description • Power Panel C70 - 10.1" display Model number 4PPC70.101G-21W 4PPC70.101G-21B 4PPC70.101N-21W 4PPC70.101N-21B Ambient conditions Temperature Operation 0 to 50°C Storage -20 to 70°C Transport -20 to 70°C Relative humidity See temperature/humidity diagram. Mechanical properties Note Order terminal blocks 1x 0TB5104.2110-01, 1x 0TB5106.2110-01, 1x 0TB6102.2010-01 and 1x 0TB6102.2110-01 separately Front Design...

  • Page 60: Variants With 1X Can Bus And 1X Rs232

    Device description • Power Panel C70 - 10.1" display • Variants with 1x CAN bus and 1x RS232 3.5.3 Variants with 1x CAN bus and 1x RS232 3.5.3.1 Order data Model number Short description Power Panel C70 4PPC70.101G-22W Power Panel C70, 10.1", landscape format, fieldbus interfaces: 1x CAN bus, 1x RS232. CPU and memory: Intel Atom 333 MHz (compatible), 256 MB DDRAM, 32 kB FRAM, 2 GB onboard flash drive.
  • Page 61 Device description • Power Panel C70 - 10.1" display • Variants with 1x CAN bus and 1x RS232 3.5.3.3 Technical data Model number 4PPC70.101G-22W 4PPC70.101G-22B 4PPC70.101N-22W 4PPC70.101N-22B General information Cooling Fanless B&R ID code 0xE57B 0xE57F 0xE583 0xE587 System requirements Automation Studio 4.1.4.375 and later Automation Runtime...
  • Page 62 Device description • Power Panel C70 - 10.1" display Model number 4PPC70.101G-22W 4PPC70.101G-22B 4PPC70.101N-22W 4PPC70.101N-22B Interfaces Interface IF1 Fieldbus POWERLINK V2 managing or controlled node Type Type 4 Variant 1x RJ45 shielded Line length Max. 100 m between 2 nodes (segment length) Max.
  • Page 63 Device description • Power Panel C70 - 10.1" display Model number 4PPC70.101G-22W 4PPC70.101G-22B 4PPC70.101N-22W 4PPC70.101N-22B Mechanical properties Note Order terminal blocks 1x 0TB5104.2110-01, 1x 0TB5106.2110-01, 1x 0TB6102.2010-01 and 1x 0TB6102.2110-01 separately Front Design Aluminum white pinstripe Anthracite gray pinstripe Aluminum white pinstripe Anthracite gray pinstripe Dimensions Width...

  • Page 64: Variants With 1X Can Bus And 1X Rs485

    Device description • Power Panel C70 - 10.1" display • Variants with 1x CAN bus and 1x RS485 3.5.4 Variants with 1x CAN bus and 1x RS485 3.5.4.1 Order data Model number Short description Power Panel C70 4PPC70.101G-23W Power Panel C70, 10.1", landscape format, fieldbus interfaces: 1x CAN bus, 1x RS485. CPU and memory: Intel Atom 333 MHz (compatible), 256 MB DDRAM, 32 kB FRAM, 2 GB onboard flash drive.
  • Page 65 Device description • Power Panel C70 - 10.1" display • Variants with 1x CAN bus and 1x RS485 3.5.4.3 Technical data Model number 4PPC70.101G-23W 4PPC70.101G-23B 4PPC70.101N-23W 4PPC70.101N-23B General information Cooling Fanless B&R ID code 0xE57C 0xE580 0xE584 0xE588 System requirements Automation Studio 4.1.4.375 and later Automation Runtime...
  • Page 66 Device description • Power Panel C70 - 10.1" display Model number 4PPC70.101G-23W 4PPC70.101G-23B 4PPC70.101N-23W 4PPC70.101N-23B Interfaces Interface IF1 Fieldbus POWERLINK V2 managing or controlled node Type Type 4 Variant 1x RJ45 shielded Line length Max. 100 m between 2 nodes (segment length) Max.
  • Page 67 Device description • Power Panel C70 - 10.1" display Model number 4PPC70.101G-23W 4PPC70.101G-23B 4PPC70.101N-23W 4PPC70.101N-23B Mechanical properties Note Order terminal blocks 1x 0TB5104.2110-01, 1x 0TB5106.2110-01, 1x 0TB6102.2010-01 and 1x 0TB6102.2110-01 separately Front Design Aluminum white pinstripe Anthracite gray pinstripe Aluminum white pinstripe Anthracite gray pinstripe Dimensions Width...

  • Page 68: Temperature/Humidity Diagram

    Device description • Power Panel C70 - 10.1" display • Temperature/Humidity diagram 3.5.5 Temperature/Humidity diagram Operation Operation Storage Storage Transport Transport Temperature [°C] Figure: Power Panel C70 - 10.1" display - Temperature/Humidity diagram Power Panel C70 User's manual V1.30...

  • Page 69: Dimensions

    Device description • Power Panel C70 - 10.1" display • Dimensions 3.5.6 Dimensions Landscape format for 10.1" variants 127.4 12.5 45.82 View A 27.8 View A Dimensions of the installation cutout for this Power Panel variant: 265.9 ±1 mm x 161.9 ±1 mm See also "Installation cutout requirements"...
  • Page 70 Device description • Power Panel C70 - 10.1" display • Dimensions Portrait format for 10.1" variants 145.8 26.2 13.8 112.9 Dimensions of the installation cutout for this Power Panel variant: 161.9 ±1 mm x 265.9 ±1 mm See also "Installation cutout requirements" on page Power Panel C70 User's manual V1.30...

  • Page 71: Operating And Connection Elements

    Device description • Operating and connection elements 3.6 Operating and connection elements Reset button Diagnostic LEDs IF5: X2X Link interface Fieldbus interface (depends on the Power Panel variant) IF1: POWERLINK interface IF2: Ethernet interface IF3: USB interface IF4: USB interface Power supply Grounding clip Grounding plate (built into the device)

  • Page 72: Diagnostic Leds

    Device description • Operating and connection elements 3.6.1 Diagnostic LEDs Nine diagnostic LEDs are located on the back of the Power Panel C70: Figure Color Status Description Green Application running. Mode SERVICE or BOOT. Double flash Mode BOOT (during firmware update) Blinking If LED "R/E"...
  • Page 73 Device description • Operating and connection elements Interface status LED "S/E" Green Description Mode: NOT_ACTIVE The interface is either in mode NOT_ACTIVE or one of the following modes or errors is present: • The device is switched off. • The device is in the startup phase. •...
  • Page 74 Device description • Operating and connection elements Blink times Triple flash 1000 Double flash 1000 Single flash 1000 Blinking Flickering All times in ms 3.6.1.1.3 System stop error codes A system stop error can occur due to incorrect configuration or defective hardware. The error code is indicated by LED "S/E"...
  • Page 75 Device description • Operating and connection elements 3.6.1.2 "OPS" LEDs - Variant without fieldbus interfaces LEDs "OPS1" to "OPS5" do not have a function for Power Panel variants without fieldbus interfaces (4PPC70.xxxx-20x). 3.6.1.3 "OPS" LEDs - Variant with 2x CAN bus Some Power Panel variants only have integrated terminating resistors starting with a certain hardware revision.
  • Page 76 Device description • Operating and connection elements 3.6.1.5 "OPS" LEDs - Variant with 1x CAN bus and 1x RS485 Some Power Panel variants only have integrated terminating resistors starting with a certain hardware revision. See the technical data for information about the hardware revision and system requirements of Automation Studio and Automation Runtime for switching the terminating resistors.

  • Page 77: Reset Button / Operating Modes

    Device description • Operating and connection elements 3.6.2 Reset button / Operating modes Reset button The reset button can be used to switch to one of 3 operating modes. The following key codes are used to select the desired operating mode: Key code Operating mode Description...

  • Page 78: Powerlink Interface (If1)

    Device description • Operating and connection elements 3.6.3 POWERLINK interface (IF1) Figure Pinout Terminal Ethernet Back Receive data RXD\ Receive data\ Transmit data Termination Termination TXD\ Transmit data\ Termination Termination Diagnostic LEDs Color Status Description Link Green Link established to Ethernet network. Activity Orange No Ethernet activity taking place.

  • Page 79: Usb Interfaces

    Device description • Operating and connection elements 3.6.5 USB interfaces Back ① ② Front (touch screen) USB interface IF3 USB interface IF4 The Power Panel is equipped with a USB 2.0 host controller with 2 USB interfaces. USB interfaces IF3 and IF4 Transfer rate Low speed (1.5 Mbit/s), full speed (12 Mbit/s), high speed (480 Mbit/s) Power supply...

  • Page 80: Fieldbus Interfaces

    Device description • Operating and connection elements 3.6.7 Fieldbus interfaces 3.6.7.1 Variant with 2x CAN bus Figure Terminal Pinout IF7: CAN bus Back CAN_H CAN high Ground CAN_L CAN low IF6: CAN bus CAN_H CAN high Ground CAN_L CAN low Required accessories 0TB5106.2110-01 Accessory terminal block, 6-pin (2.5), cage clamp terminal block 0.5 mm...

  • Page 81: Power Supply

    Device description • Operating and connection elements 3.6.7.3 Variant with 1x CAN bus and 1x RS485 Figure Terminal Pinout IF9: RS485 Back DATA Data Ground DATA\ Data inverted IF6: CAN bus CAN_H CAN high Ground CAN_L CAN low Required accessories 0TB5106.2110-01 Accessory terminal block, 6-pin (2.5), cage clamp terminal block 0.5 mm Front (touch screen)

  • Page 82: Commissioning

    Commissioning 4 Commissioning 4.1 Installation Important! Possible damage to device! • Commissioning and maintenance work is only permitted to be performed when the power is switched off. The power cable must also be disconnected from the power supply and device. •...

  • Page 83: Installation Cutout Requirements

    Commissioning 4.1.1 Installation cutout requirements When installing the Power Panel, it is important to ensure that the surface and wall thickness of the installation cutout meet the following conditions: Properties of the installation cutout Value Permissible deviation from the evenness ≤0.5 mm Note: This condition must also be met with a built-in device.

  • Page 84: Installation Instructions

    Commissioning 3. Slide the retaining clips all the way to the back of the openings. Figure: Sliding the retaining clips back 4. Now secure the retaining clips to the wall or control cabinet by tightening the screws with a flat-blade screw- driver.

  • Page 85: Mounting Orientations

    Commissioning Air circulation - Side view Air outlet >45 mm Air intake Information: The specified air circulation clearance values are based on worst-case operation at the maximum spec- ified ambient temperature (see "Temperature values" in chapter "Technical data"). If the specified air circulation clearance values cannot be observed, then the internal housing temper- ature must be monitored by the user and appropriate measures taken if they are exceeded (see "Tem- perature monitoring"...
  • Page 86 Commissioning Tilted mounting orientation Rotated mounting orientation The Power Panel is permitted to be rotated in 90° increments and installed. 0° 270° (-90°) 90° 180° Power Panel C70 User's manual V1.30...

  • Page 87: Grounding

    Commissioning 4.1.5 Grounding Disturbances are discharged effectively via a grounding clip. The cable shields (e.g. Ethernet) are discharged via the grounding plate. For additional information about electromagnetic compatibility, see the INSTALLATIONS / EMC GUIDE user's manual (MAEMV-ENG on the B&R website www.br-automation.com). Information: In the Power Panels, ground and GND potential are connected together internally in the device.
  • Page 88 Commissioning Securing the conductor lines to the grounding plate 1 Ground conductor The connection to ground potential must be as short as possible and sufficiently strong (≥4 mm²) over the intended spade terminal (Faston 6.3 mm). 2 Shielded lines A central ground connection is available to effectively deflect interference. All cable shields must be con- nected to ground with good conductivity using a cable tie on the grounding plate or some other method.

  • Page 89: Commissioning

    Commissioning 4.2 Commissioning The Power Panel is delivered with Boot AR. This is an operating system with a limited range of functions but that provides all functions necessary for an online connection between Automation Studio and the Power Panel. In order to put the Power Panel into service, a full version of Automation Runtime must be transferred to the Power Panel.

  • Page 90: Operating The Power Panel

    Commissioning 4.3 Operating the Power Panel The following input methods can be used individually or together to operate the Power Panel: • Touch screen • USB keyboard 4.3.1 Touch screen The touch screen ① of the Power Panel juts out over the display on all four sides by about 1 cm: Touching the touch screen ②...
  • Page 91 Commissioning 4.3.1.1 Touch screen calibration B&R touch screen devices are equipped with a touch controller that supports hardware calibration. These devices come already pre-calibrated from the factory. This is an advantageous feature when replacing devices with an identical model of the same type since it avoids having to recalibrate the new device. Nevertheless, calibrating the device is recommended in order to achieve the best results and to adapt the touch screen to the user's preferences.

  • Page 92: Maintenance

    Maintenance 5 Maintenance 5.1 Cleaning Danger! Power Panel devices are only permitted to be cleaned while switched off in order to prevent unintended functions from being triggered when handling the touch screen or pressing keys. Power Panel devices should be cleaned with a moist cloth. The cloth should be moistened with water and detergent, a screen cleaning agent or alcohol (ethanol).

  • Page 93: User Tips For Increasing The Service Life Of The Display Or Touch Screen

    Maintenance 5.2 User tips for increasing the service life of the display or touch screen Pixel errors Information: Displays can contain faulty pixels (pixel errors) due to the manufacturing process. They are not grounds for initiating a complaint or warranty claim. 5.2.1 Service life The maximum service life of the analog resistive touch screen is 10 million actuations.
  • Page 94 Maintenance How can image persistence be reduced? • Switch continuously between static and dynamic images. • Prevent excessive differences in brightness between foreground and background elements. • Use colors with similar brightness. • Use complementary colors for subsequent images. • Use screensavers. Power Panel C70 User's manual V1.30...

  • Page 95: Accessories

    Accessories 6 Accessories 6.1 Overview Model number Product ID Page Cage clamp terminal blocks for all Power Panel variants 0TB6102.2110-01 Accessory terminal block, 2-pin (3.81), cage clamp terminal block 1.5 mm² 0TB5104.2110-01 Accessory terminal block, 4-pin (2.5), cage clamp terminal block 0.5 mm² Cage clamp terminal blocks for Power Panel variants with fieldbus interfaces 0TB5106.2110-01 Accessory terminal block, 6-pin (2.5), cage clamp terminal block 0.5 mm²...
  • Page 96 Accessories Model number Product ID Page X2X Link cables, angled X67CA0X31.0020 X2X Link attachment cable, angled, 2 m X67CA0X31.0040 X2X Link attachment cable, angled, 4 m X67CA0X31.0050 X2X Link attachment cable, angled, 5 m X67CA0X31.0100 X2X Link attachment cable, angled, 10 m X67CA0X31.0150 X2X Link attachment cable, angled, 15 m X67CA0X31.0500...

  • Page 97: Tb6102 2-Pin Power Supply Connector

    Accessories 6.2 TB6102 2-pin power supply connector This 1-row 2-pin terminal block is used to connect the power supply. 6.2.1 Order data Model number Short description Terminal blocks 0TB6102.2010-01 Accessory terminal block, 2-pin (3.81), screw clamp terminal block 1.5 mm² 0TB6102.2110-01 Accessory terminal block, 2-pin (3.81), cage clamp terminal block 1.5 mm²...

  • Page 98: Tb510X 4/6-Pin Terminal Block

    Accessories 6.3 TB510x 4/6-pin terminal block The single-row 4-pin terminal block is needed for the X2X Link interface. The single-row 6-pin terminal block is needed for the fieldbus interfaces. 6.3.1 Order data 0TB5104.2110-01 0TB5106.2110-01 Model number Short description Terminal blocks 0TB5104.2110-01 Accessory terminal block, 4-pin (2.5), cage clamp, 0.5 mm²...

  • Page 99: Data Storage Devices

    Accessories 6.4 Data storage devices For technical data and additional information about data storage devices, see the corresponding documentation. This can be located and downloaded by searching for the data storage device's model number at www.br-automa- tion.com. 6.5 Cable accessories For technical data and additional information about cables, see the corresponding documentation.

  • Page 100: International And National Certifications

    International and national certifications 7 International and national certifications Power Panel devices meet the requirements of the listed certifications and their relevant standards. We are com- mitted to ensuring the reliability of our products in industrial environments. Information: Certifications applicable to the respective Power Panel are available at the following locations: •...

  • Page 101: Eu Directives And Standards (Ce)

    International and national certifications 7.2 EU directives and standards (CE) CE markings The respective product complies with all applicable EU directives and relevant har- monized standards. Certification of these products is performed in cooperation with accredited testing lab- oratories. Europe (EU) EMC Directive 2014/30/EU All devices satisfy the protection requirements of the "EMC directive"...

  • Page 102: Overview Of Standards

    International and national certifications 7.2.1 Overview of standards Standard Description EN 55011 Industrial, scientific and medical equipment - Radio frequency disturbance characteristics - Limits and methods (CISPR 11) of measurement EN 55016-2-1 Specification for radio disturbance and immunity measuring apparatus and methods (CISPR 16-2-1) - Part 2-1: Methods of measurement of disturbances and immunity - Conducted disturbance measurements EN 55016-2-3...

  • Page 103: Requirements For Immunity To Disturbances

    International and national certifications 7.2.2 Requirements for immunity to disturbances Requirements per standard: Testing performed Immunity per standard: EN 61131-2 EN 61000-6-2 Electrostatic discharge (ESD) EN 61000-4-2 ✔ ✔ High-frequency electromagnetic fields (HF field) EN 61000-4-3 ✔ ✔ High-speed transient electrical disturbances (Burst) EN 61000-4-4 ✔...
  • Page 104 International and national certifications Surge voltages (Surge) Testing performed per standard: Requirements per standard: Requirements per standard: EN 61000-4-5 EN 61131-2 / Zone B EN 61000-6-2 AC mains inputs/outputs ±1 kV Line / line Criteria B AC mains inputs/outputs ±2 kV Line / ground Criteria B DC mains inputs/outputs...

  • Page 105: Emission Requirements

    International and national certifications Voltage fluctuations Testing performed per standard: Requirements per standard: Requirements per standard: EN 61000-4-11 / EN 61000-4-29 EN 61131-2 / Zone B EN 61000-6-2 AC power inputs -15% / +10% Test duration per 30 minutes Criteria A DC power inputs -15% / +20% Test duration per 30 minutes...

  • Page 106: Mechanical Conditions

    International and national certifications 7.2.4 Mechanical conditions Requirements per standard: Testing performed EN 60721-3-2 EN 60721-3-2 EN 60721-3-2 EN 60721-3-3 EN 61131-2 Testing per standard: Class 2M1 Class 2M2 Class 2M3 Class 3M4 ✔ ✔ Vibration (sinusoidal) / Operation EN 60068-2-6 ✔...

  • Page 107: Electrical Safety

    International and national certifications Toppling / Transport (packaged) Testing performed per stan- Requirements per standard: Requirements per standard: Requirements per standard: dard: EN 60721-3-2 / Class 2M1 EN 60721-3-2 / Class 2M2 EN 60721-3-2 / Class 2M3 EN 60068-2-31 Toppling Weight Required Weight...
  • Page 108 Publishing information Publishing information B&R Industrial Automation GmbH B&R Strasse 1 5142 Eggelsberg Austria Telephone: +43 7748 6586-0 Fax: +43 7748 6586-26 office@br-automation.com Power Panel C70 User's manual V1.30...
